Tenda F6 User Manual

48

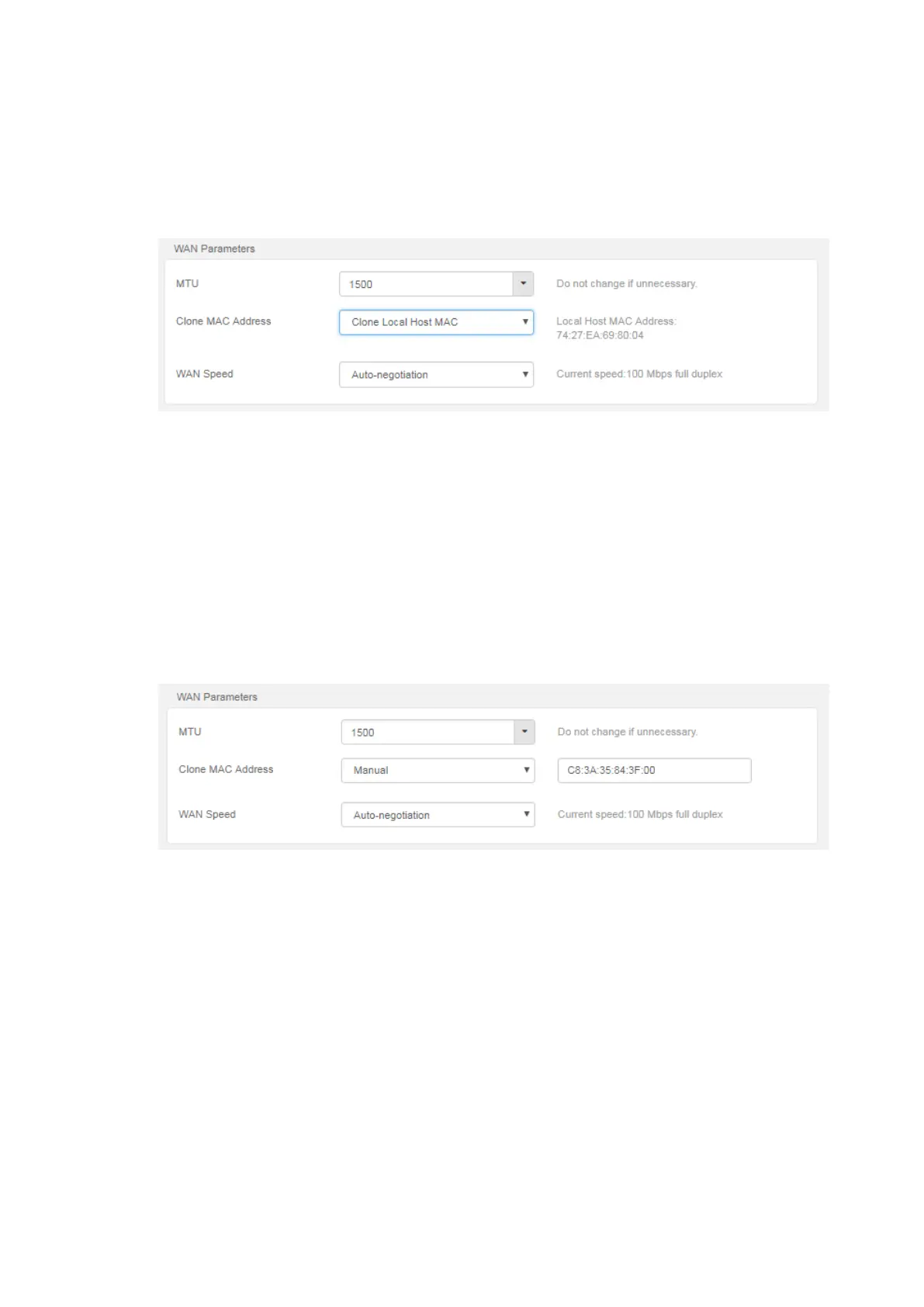

Configuration procedure:
Step 1 Choose Administration, and move to WAN Parameters module to enter the configuration
page.
Step 2 Set Clone MAC Address to Clone Local Host MAC.
Step 3 Click OK at the bottom of the page.
---End
Scenario 2: The computer used to manage the router is not the computer that used to access the
internet. And you need to get the MAC address of the computer that can access the internet.
Configuration procedure:
Step 1 Choose Administration, and move to WAN Parameters module to enter the configuration
page.
Step 2 Set Clone MAC Address to Manual.
Step 3 Enter the MAC address of the computer that can access the internet in the format of
xx:xx:xx:xx:xx:xx.
Step 4 Click OK at the bottom of the page.
---End
WAN Speed
It specifies the speed of the WAN port. By default, the speed mode of the WAN port is Auto-
negotiation. Change the setting only when necessary. If the router cannot access the internet after
you set up it correctly with a 10 Mbps upstream device, you can change WAN speed to 10 Mbps
auto-negotiation to achieve negotiation.

Tenda F6 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	WLAN
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Frequency band	2.4 GHz
Firewall security	Support Oray.com，88ip
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	CCC, CE
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DSL WAN	No
WAN connection type	RJ-45
Power source type	DC
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	211 mm
Width	204 mm
Height	147.5 mm
