Tenda F6 User Manual

55
configuration page.

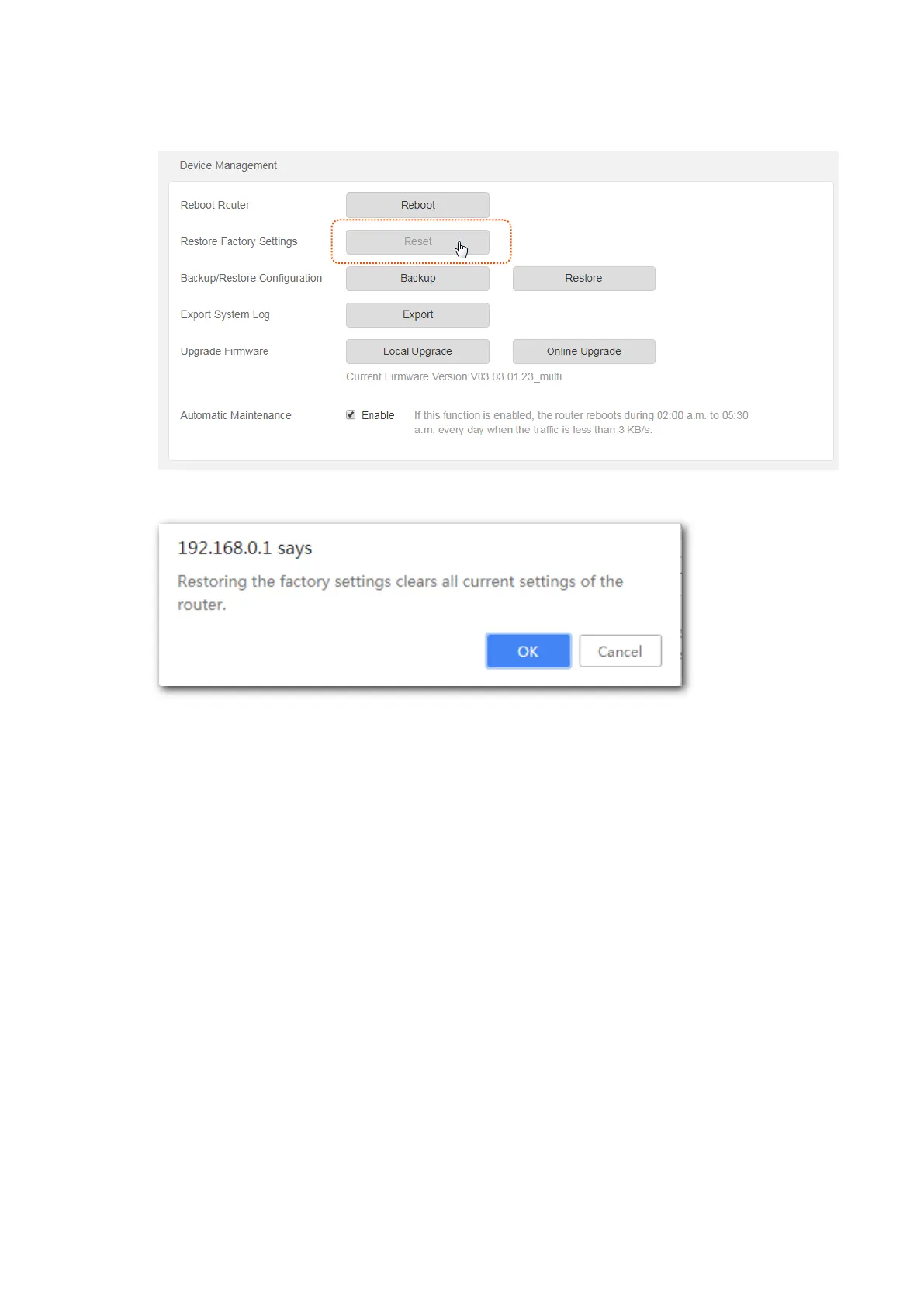

Step 2 Click Reset.
Step 3 Click OK on the popup window.
---End
Wait for the progress bar to complete.
Resetting the Router Using the Reset Button
Hold down the WiFi/RST button of the router for about 8 seconds and release it when the LED
indicator blinks fast. The router is reset successfully when the LED indicator lights up.
Backup/Restore configuration
It allows you to back up the current configuration of the router to your computer. You are
recommended to back up the configuration after the settings of the router are significantly
changed, or the router works in a good condition.
After you restore the router to factory settings or upgrade it, you can use this function to restore a
configuration that has been backed up.
To back up or restore the configuration of your router, choose Administration, move to Device
Management module and perform the backup or restoring procedures.

Tenda F6 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Antennas quantity	4
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	WLAN
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Frequency band	2.4 GHz
Firewall security	Support Oray.com，88ip
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	CCC, CE
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
DSL WAN	No
WAN connection type	RJ-45
Power source type	DC
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	211 mm
Width	204 mm
Height	147.5 mm
