Tenda O1 User Manual

31

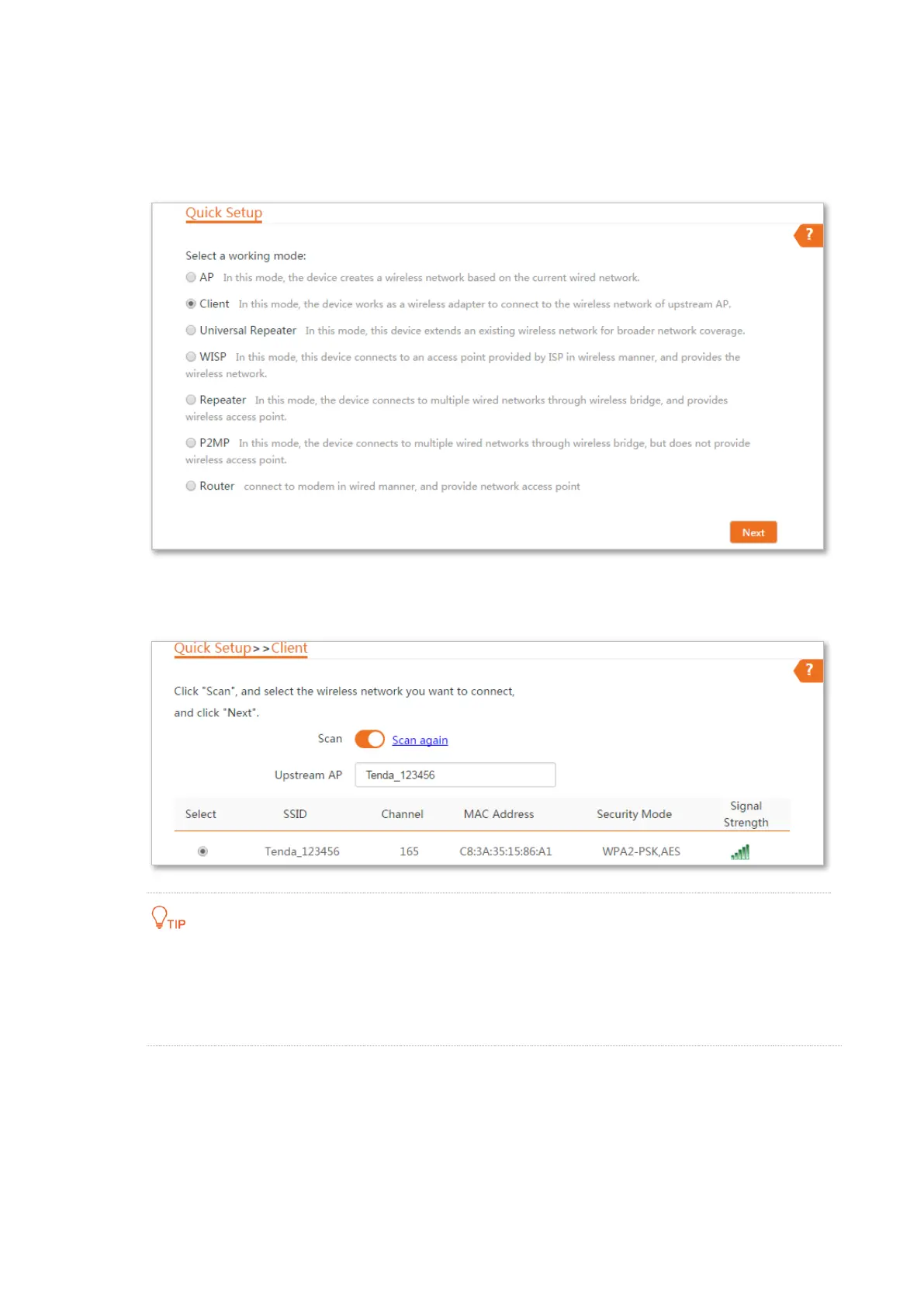

Step 2 Set CPE2 to Client mode.
1. Log in to the web UI of CPE2 and choose Quick Setup to enter the configuration page.
2. Select Client, and click Next.
3. Select the SSID of the CPE1, which is Tenda_123456 in this example, and click Next at the
bottom of the page.

If you cannot find any SSID from the list, choose Wireless > Basic and enable the wireless function.
Then try again.

If you cannot find the SSID of CPE1 from the list, adjust the direction of CPE2, and move it close to
the CPE1.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
