Tenda O1 User Manual

40
4.6 WISP mode
In WISP mode, this device connects to a hotspot provided by ISP (Internet Service Provider) in
wireless manner, and allows the wired and wireless devices to connect to the internet.
Application scenario

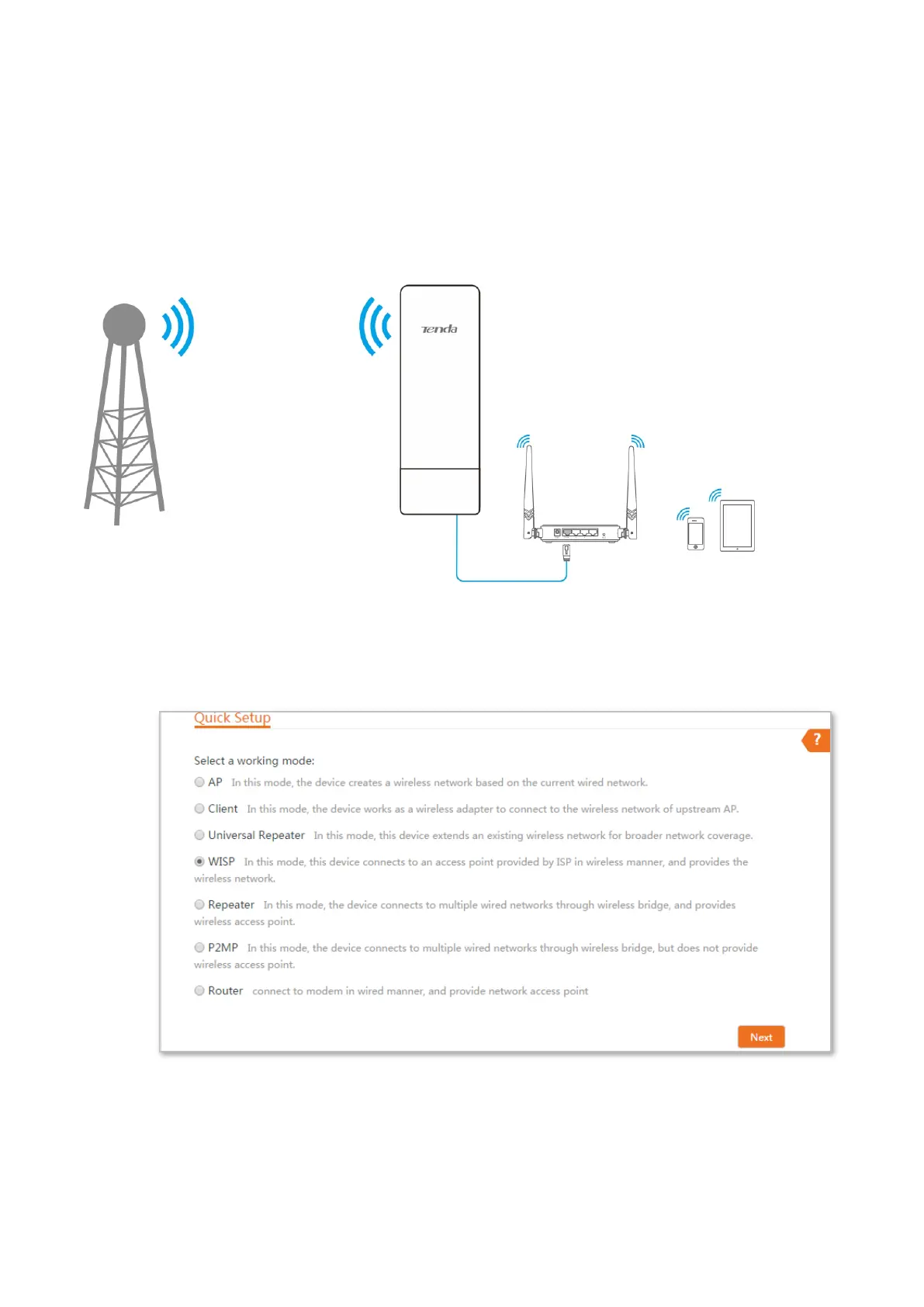

The CPE is used to extend the ISP hotspot to your home. The network topology is shown as below:
Configuration procedures:
Step 1 Log in to the web UI of this CPE and choose Quick Setup to enter the configuration page.
Step 2 Select WISP, and click Next.
WISP mode
ISP hotspot
Router

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
