Tenda O1 User Manual

39

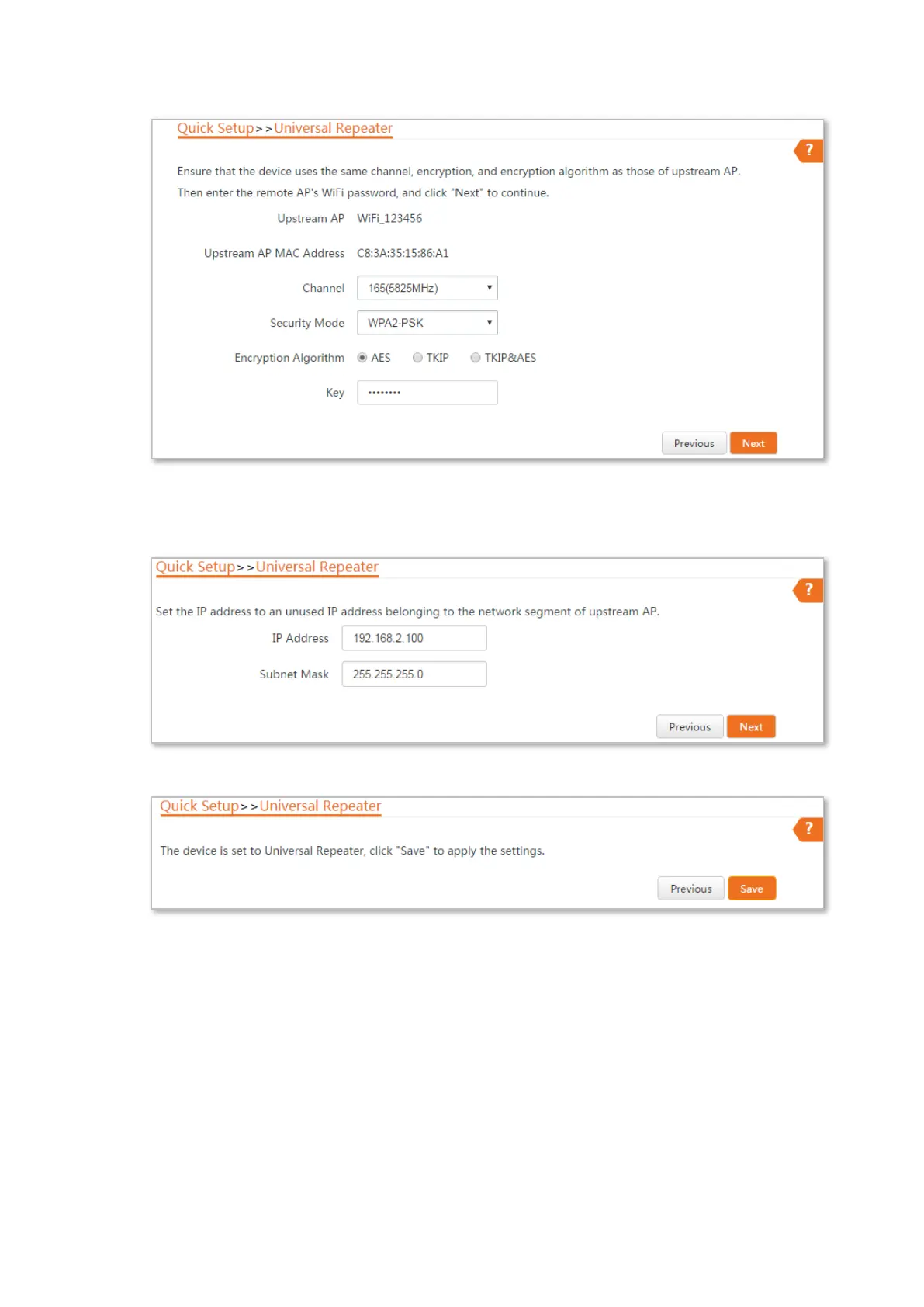

Step 4 Enter the 12345678 in the Key text box, and click Next.
Step 5 Set the IP address to an unused IP address belonging to the same network segment as
that of the router. For example, if the IP address of the router is 192.168.2.1, you can set
this device’s IP address to 192.168.2.X (X ranges from 2 to 254). Then click Next.
Step 6 Click Save, and wait until the device reboots to activate the settings.
----End
Verification
You can search strong wireless signal in the conference room.
*

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
