Tenda O1 User Manual

49
Assume that the related parameters are as follows:
CPE1
− SSID: Tenda_123456
− Channel: 165
− Security mode: WEP
− Authentication type: Shared
− Default key: Key 1, 12345
CPE2
− SSID: Tenda_654321
− WLAN MAC Address: C8:3A:35:15:86:B2
Step 1 Set the CPE2 to the Repeater mode.
1. Start a web browser on the computer connected to CPE2.

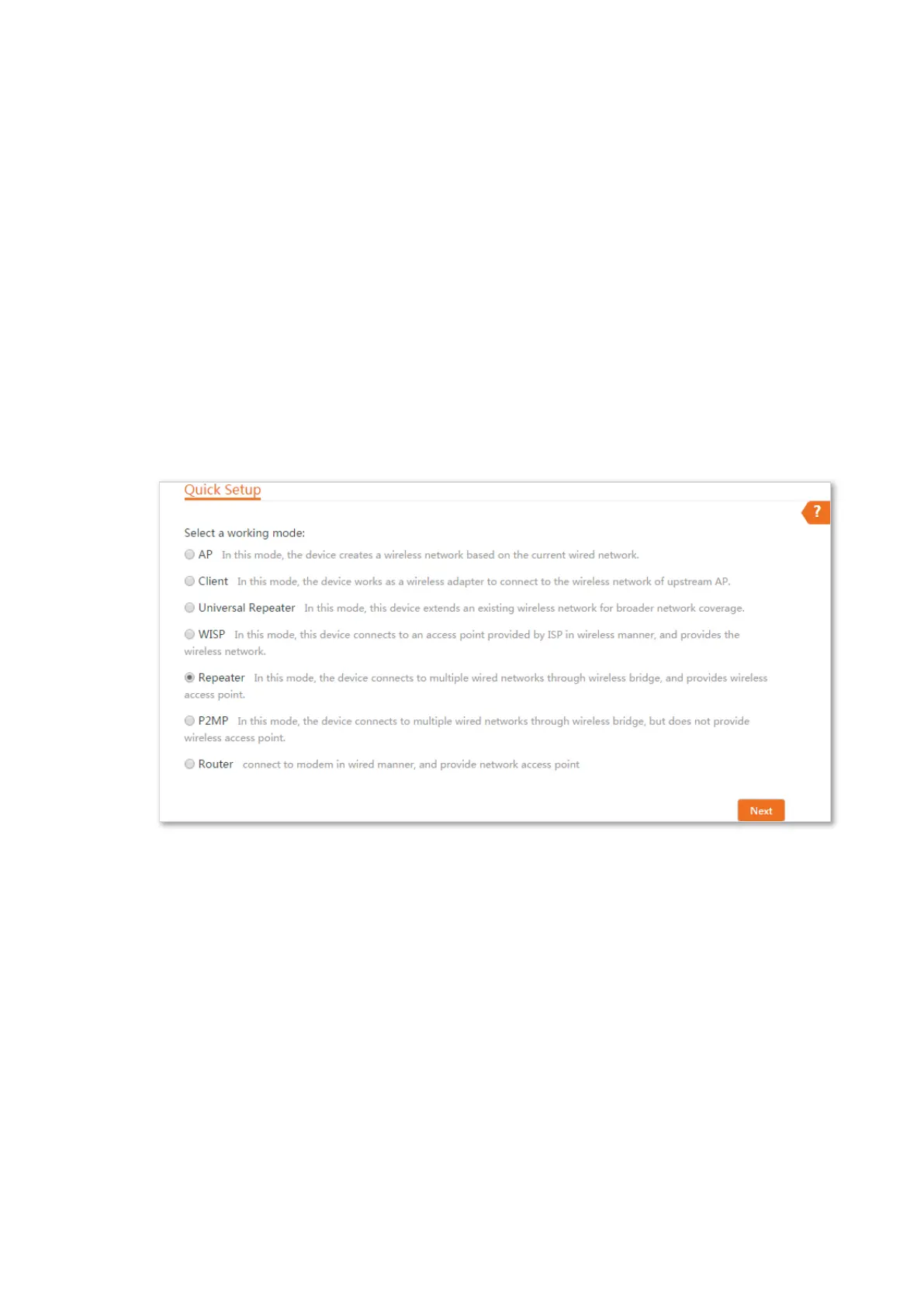

2. Log in to the web UI of CPE2, and choose Quick Setup to enter the configuration page.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
