Tenda O1 User Manual

53
CPE2:
− SSID: Tenda_1
− WLAN MAC address: C8:3A:35:15:86:8C
CPE3:
− SSID: Tenda_2
− WLAN MAC address: C8:3A:35:01:8C:C9

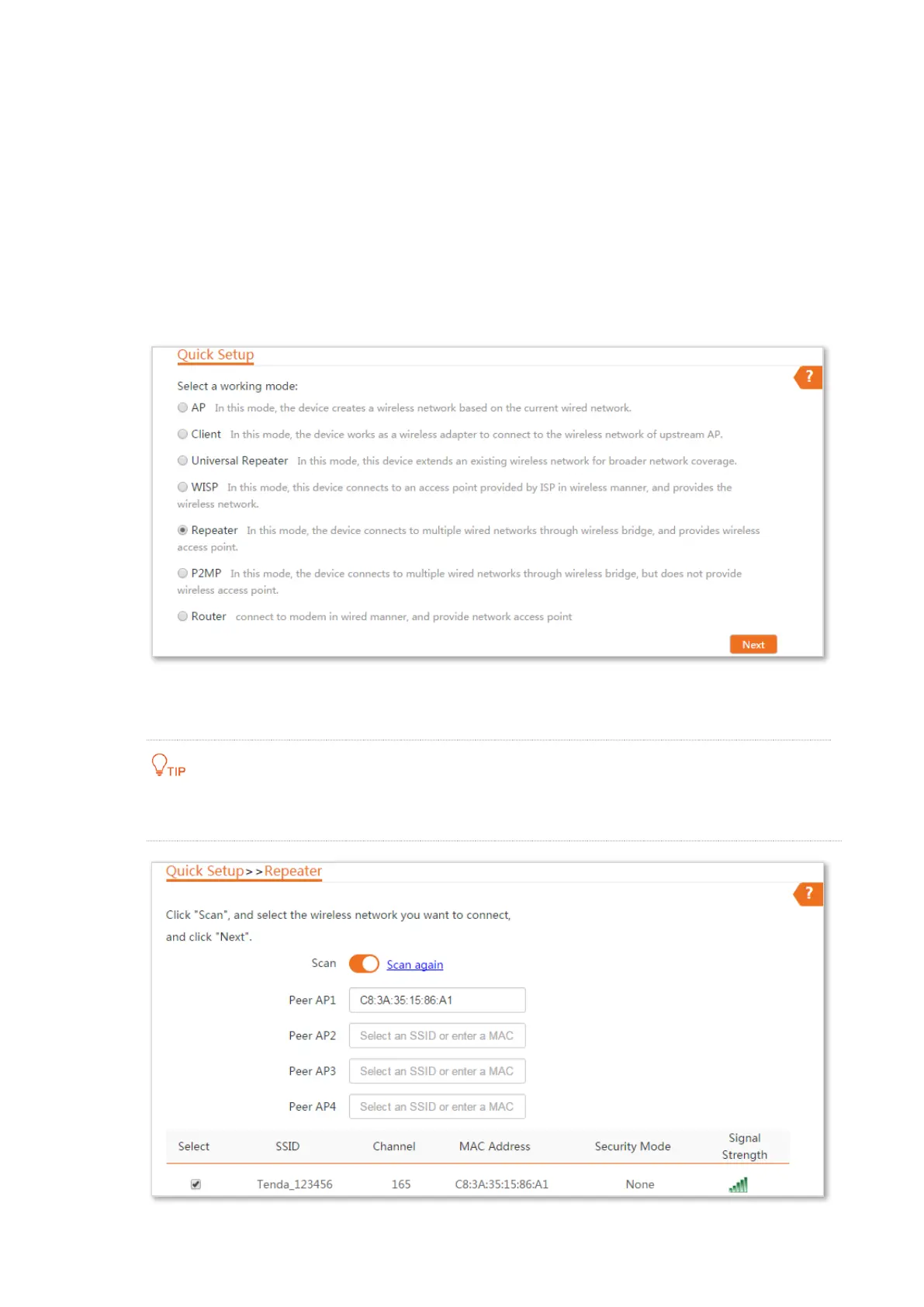

Step 1 Set the CPE2 to the Repeater mode.
1. Log in to the web UI of CPE2, and choose Quick Setup, and select Repeater.
2. Select the SSID of CPE1 from the list, which is Tenda_123456 in this example, and click
Next at the bottom of the page.
If you cannot scan the SSID of CPE1 from the list, choose Wireless > Basic and enable the wireless
function. Then try again.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
