Tenda W268R Manual

11N Wireless Broadband Router User Guide
54
and its port 21 will be added to the corresponding field
automatically.
2. Enter 192.168.0.10 in the LAN IP column, and then
select “Both” as the protocol and select “Enable”.

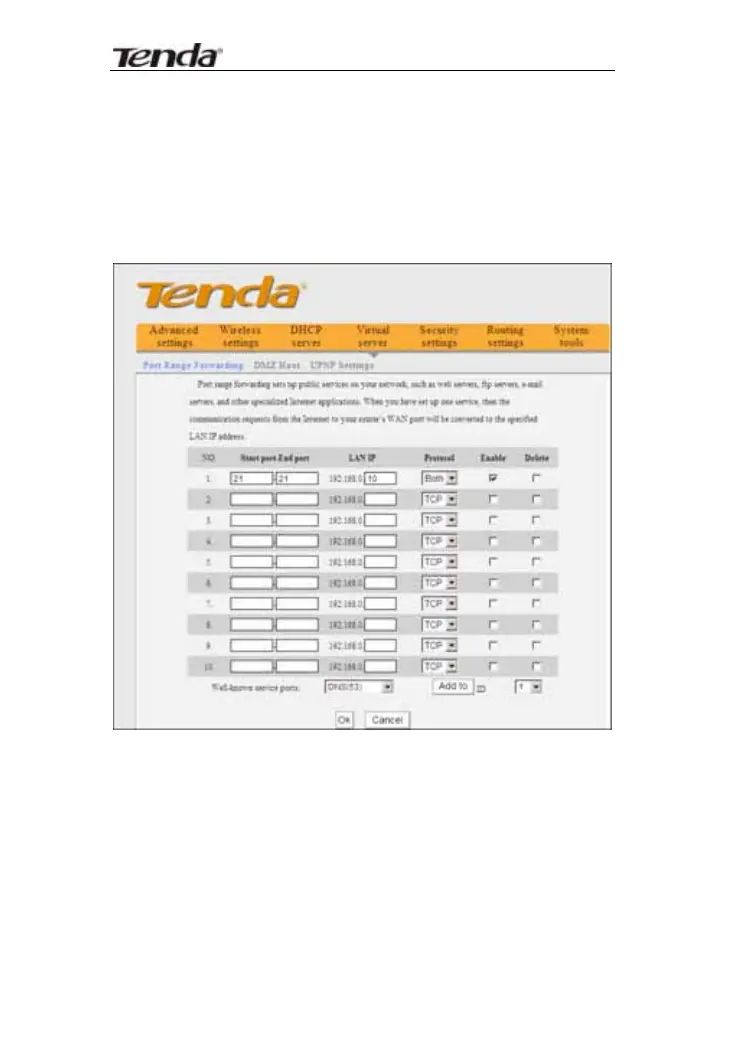

3. As the picture shown below.
4. Click the “Ok” button to save the settings.
And now, when your friends want to visit the FTP server,
they only need to enter ftp://xxx.xxx.xxx.xxx:21 in the
address field. Here, xxx.xxx.xxx.xxx means the router’s
WAN IP address. For example, when your router’s WAN
IP address is 172.16.102.89; your friends need to enter

Tenda W268R Specifications

General

VPN support	PPPoE/PPTP/L2TP/802.1x
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
xDSL connection	No
Power requirements	9V DC, 1A
Minimum system requirements	Internet Explorer 5.5, Firefox 1.0+ CD-ROM
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	2 dBi
Certification	FCC, CE, RoHS
AC input voltage	100 - 240 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	172 mm
Width	110.2 mm
Height	31 mm
Weight	- g
