Tenda W268R Manual

11N Wireless Broadband Router User Guide
48

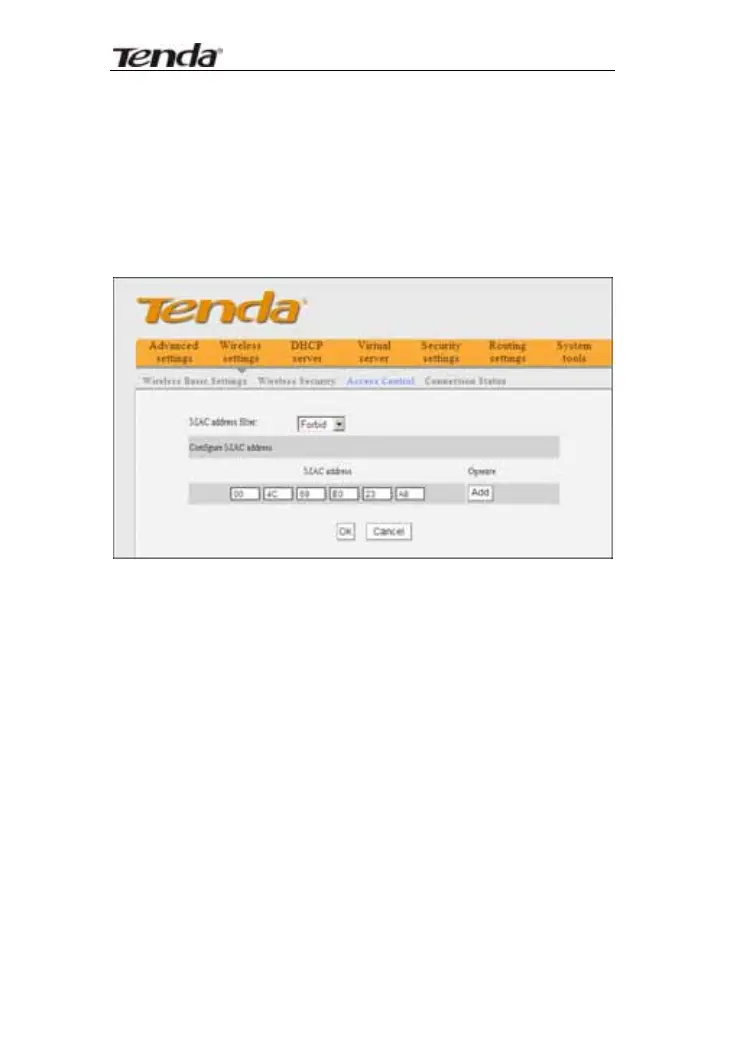

5.3 Wireless Access Control
Wireless access control is actually based on the MAC
address to permit or forbid specific clients to access the
wireless network.
¾ MAC address filter: “Permit” indicates to allow
the clients in the list to access the wireless network,
“Forbid” indicates to prevent the clients in the list
from accessing the wireless network.
¾ Configure MAC address: Input the MAC
addresses of the wireless clients to implement the
filter policy. Click “Add” to finish the MAC add
operation.
¾ MAC Address list: Show the added MAC
addresses. You can add or delete them.

Tenda W268R Specifications

General

VPN support	PPPoE/PPTP/L2TP/802.1x
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
xDSL connection	No
Power requirements	9V DC, 1A
Minimum system requirements	Internet Explorer 5.5, Firefox 1.0+ CD-ROM
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	2 dBi
Certification	FCC, CE, RoHS
AC input voltage	100 - 240 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	172 mm
Width	110.2 mm
Height	31 mm
Weight	- g
