Tenda W268R Manual

11N Wireless Broadband Router User Guide
35

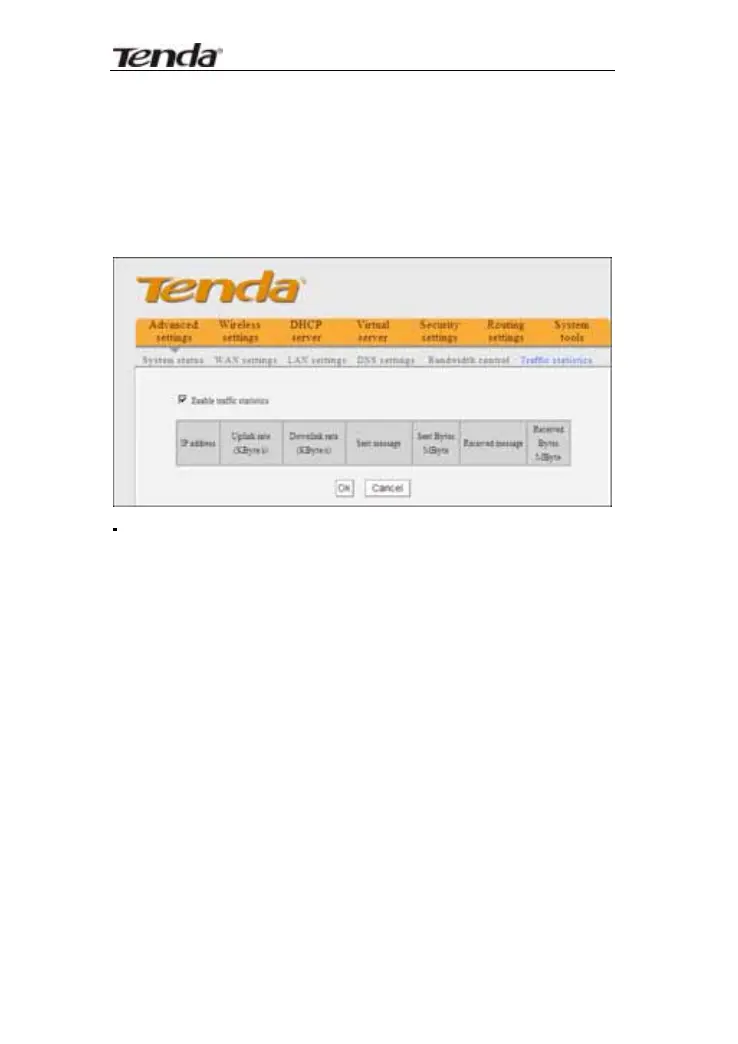

4.6 Traffic Statistics
Traffic statistics is used to display the bandwidth that
LAN PC used.
Enable Traffic statistics: It is used to calculate the
traffic used by the LAN computers. You can enable it to
calculate the traffic for you. Usually, disable it to
improve the router’s data packet processing ability, and
the default is disabled. When this function is enabled,
the webpage will refresh automatically every five
minutes, meanwhile, each computer’s traffic value will
refresh automatically.
¾ IP address: the IP address of the computer whose
traffic is being calculated.
¾ Uplink rate: the data sending speed per second,
the unit is KByte/s.
¾ Downlink rate: the data receiving speed per

Tenda W268R Specifications

General

VPN support	PPPoE/PPTP/L2TP/802.1x
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
xDSL connection	No
Power requirements	9V DC, 1A
Minimum system requirements	Internet Explorer 5.5, Firefox 1.0+ CD-ROM
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	2 dBi
Certification	FCC, CE, RoHS
AC input voltage	100 - 240 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	172 mm
Width	110.2 mm
Height	31 mm
Weight	- g
