Tenda W268R Manual

11N Wireless Broadband Router User Guide
49

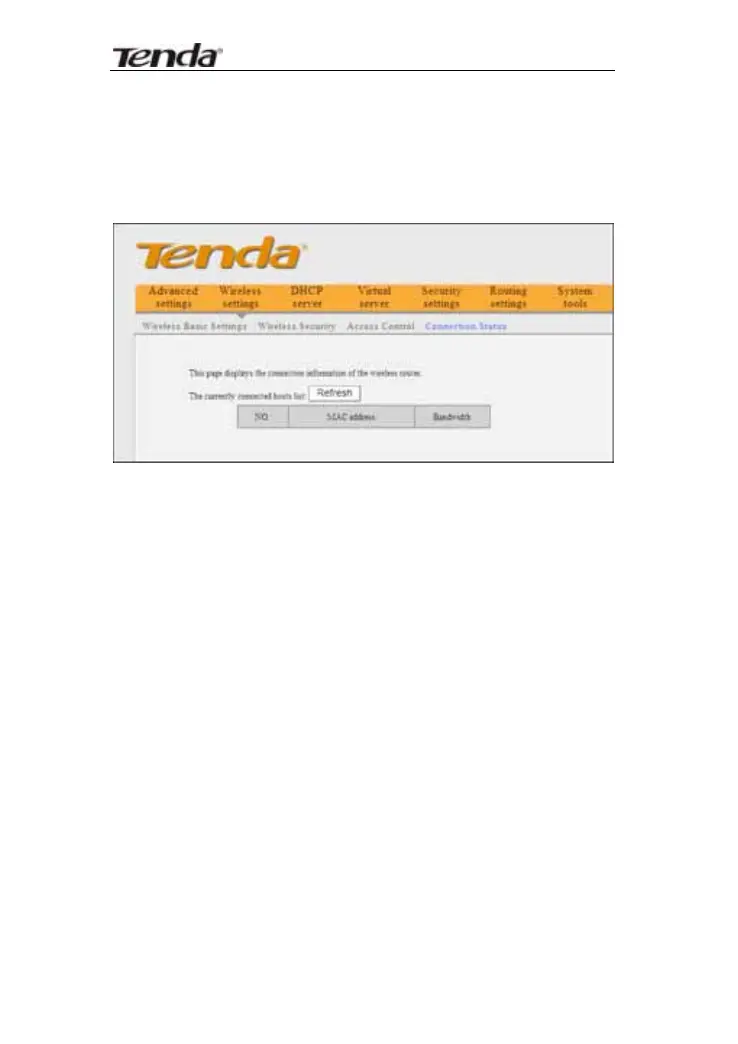

5.4 Connection Status
This screen shows wireless client’s connection status,
including MAC address, Channel bandwidth.
¾ MAC address: Shows the MAC addresses of the
hosts connected to the Router.
¾ Bandwidth: Shows the channel bandwidth of the
current connected hosts (wireless clients).
Chapter 6 DHCP Server
6.1 DHCP Server
DHCP (Dynamic Host Control Protocol) is used to assign
an IP address to the computers on the LAN/private
network. When you enable the DHCP Server, the DHCP
Server will allocate automatically an unused IP address
from the IP address pool to the requesting computer in

Tenda W268R Specifications

General

VPN support	PPPoE/PPTP/L2TP/802.1x
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Rack mounting	-
xDSL connection	No
Power requirements	9V DC, 1A
Minimum system requirements	Internet Explorer 5.5, Firefox 1.0+ CD-ROM
Ethernet LAN (RJ-45) ports	4
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Transmit power	0 dBmW
Antenna gain level (max)	2 dBi
Certification	FCC, CE, RoHS
AC input voltage	100 - 240 V
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product color	White
LED indicators	LAN, Power, WAN, WLAN

Weight and Dimensions

Depth	172 mm
Width	110.2 mm
Height	31 mm
Weight	- g
