Tenda W311M User Manual

Wireless Network Adapter Users’ Guide
Note:

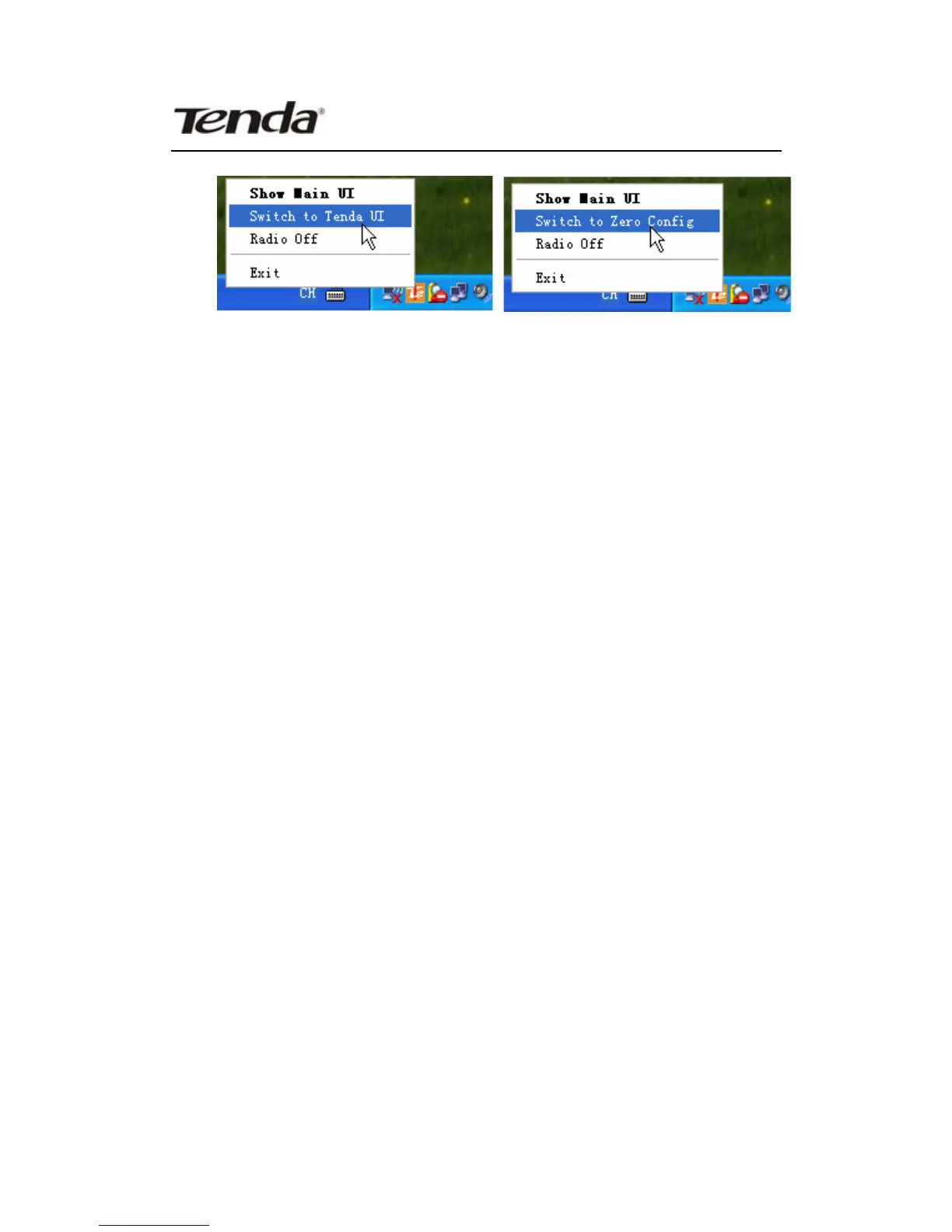

1. Under Windows 7and VISTA, there is no switch
function between Tenda UI and Zero config.
2. Operation on Tenda UI becomes impossible when
wireless is disabled or it is switched to Zero config.
3 .Under Windows 2000 system, you need to use Tenda
UI to conduct wireless configuration.
4.Under Windows XP or Windows 2003 system, if you
want to use the system internally attached wireless
configuration program to configure the network adapter,
please first disable Tenda UI or switch UI to Zero config.
5. Client application program is “Station Mode” (Client
Mode) by default.
6. Tenda UI users must be managers, some operations
may be inaccessible to other ordinary users due to their
given restricted rights.
Client UI enables configuration of two modes Station
mode (Client Mode) and AP mode (soft AP Mode).
-11-

Tenda W311M Specifications

General

Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Internal	No
Certification	FCC, CE, WEEE
Product color	Black, White
LED indicators	Activity, Link
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
Gain	2 dBi
Sustainability certificates	RoHS
Minimum RAM	64 MB
Minimum processor	733MHz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	38.4 mm
Width	17.2 mm
Height	7.9 mm
