Tenda W311M User Manual

Wireless Network Adapter Users’ Guide

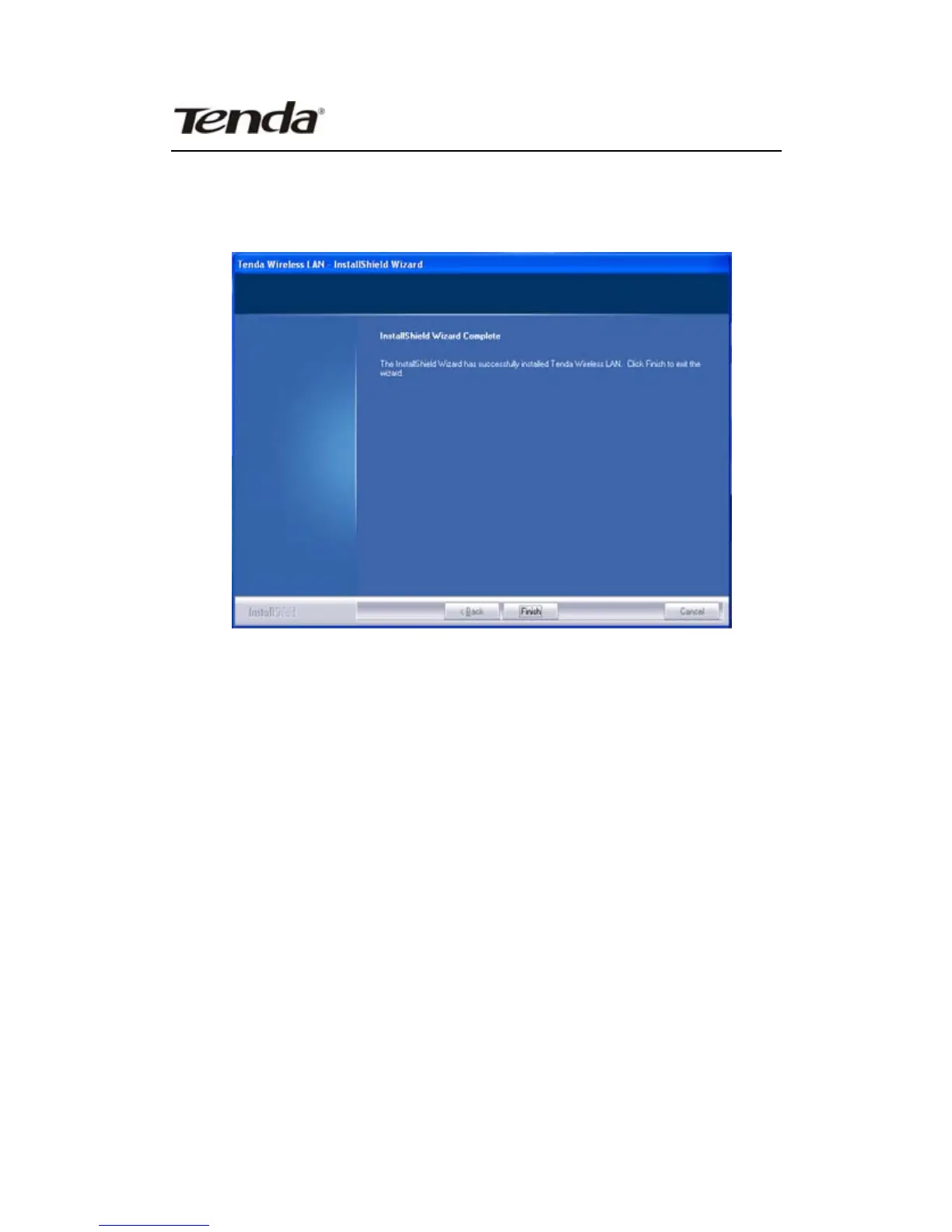

7. Click “Finish” to finish the driver and configuration
software.
Chapter 3 Client Utility Interface
This wireless USB network adapter uses Tenda client
utility interface (In the following text it is abbreviated to
UI). All functions can be configured via this software.
Select “Start”—“All Programs” —“Tenda Wireless”—
Tenda Wireless Utility”, or click the “Tenda Wireless
Utility” shortcut on your PC’s desktop to start UI.
Click Tenda UI on the right-down corner on the
desktop to switch Tenda UI and Zero config, and to exit
UI etc.
-10-

Tenda W311M Specifications

General

Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Internal	No
Certification	FCC, CE, WEEE
Product color	Black, White
LED indicators	Activity, Link
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
Gain	2 dBi
Sustainability certificates	RoHS
Minimum RAM	64 MB
Minimum processor	733MHz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	38.4 mm
Width	17.2 mm
Height	7.9 mm
