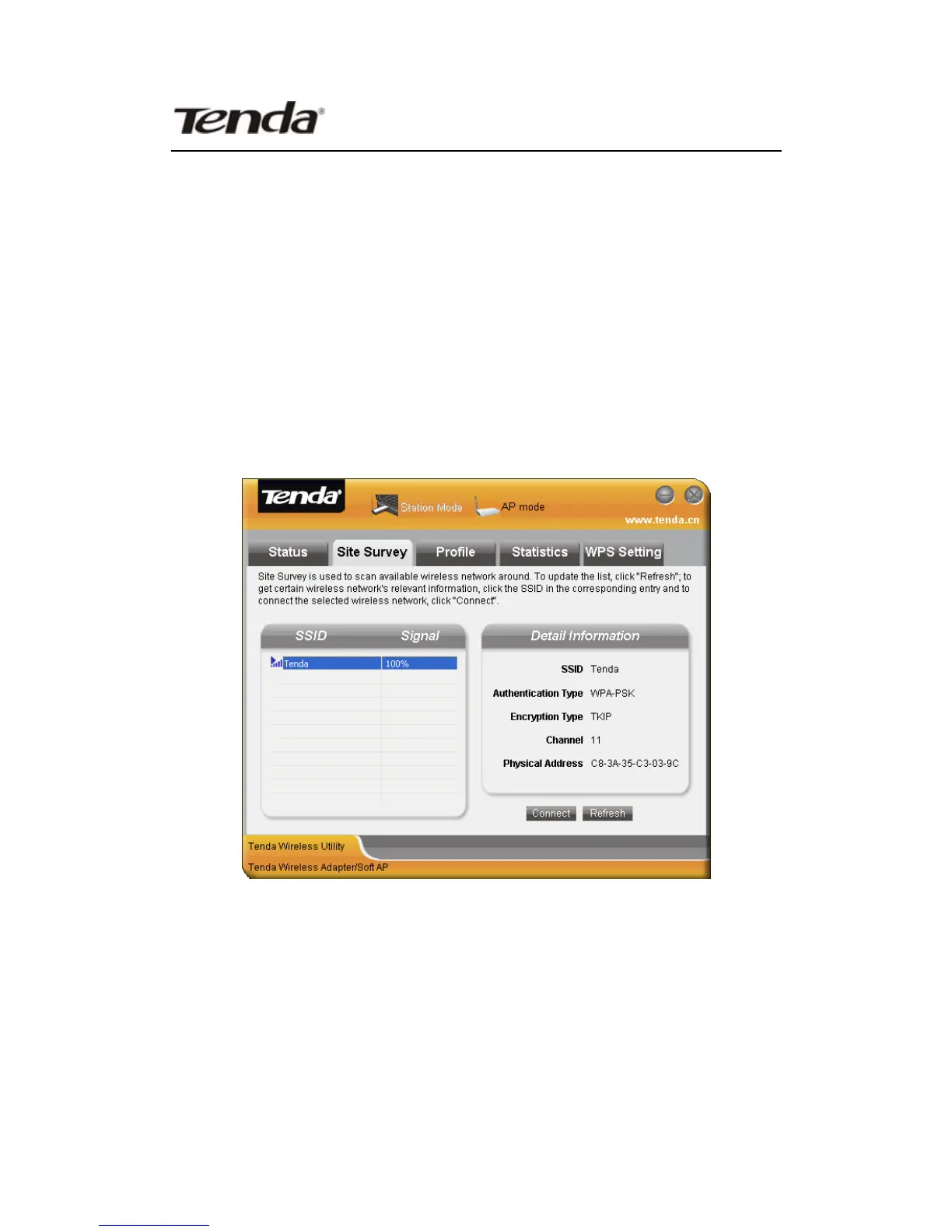

Wireless Network Adapter Users’ Guide
Before you connect wireless network, please click
“Refresh” to update the wireless network list and select
the one you want to connect, then click “Connect” button.
When connecting wireless network, a dialogue box will
pop up. For the un-encrypted network, directly confirm
instead of changing the configuration, however for the
encrypted wireless network, configuration of key is
needed.
Note: Station Mode support channel 1-11.
3.1.3ProfileManagement
This window saves the general wireless network
parameters and profiles, which helps the wireless
-14-

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda W311M and is the answer not in the manual?

Tenda W311M Specifications

General IconGeneral
InterfaceWLAN
Connectivity technologyWireless
Chipset-
InternalNo
CertificationFCC, CE, WEEE
Product colorBlack, White
LED indicatorsActivity, Link
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standardWi-Fi 4 (802.11n)
Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA2
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate150 Mbit/s
Gain2 dBi
Sustainability certificatesRoHS
Minimum RAM64 MB
Minimum processor733MHz
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 45 °C
Storage relative humidity (H-H)5 - 95 %
Operating relative humidity (H-H)10 - 95 %
Harmonized System (HS) code85176990
Weight and Dimensions IconWeight and Dimensions
Depth38.4 mm
Width17.2 mm
Height7.9 mm
