Tenda W311M User Manual

Wireless Network Adapter Users’ Guide

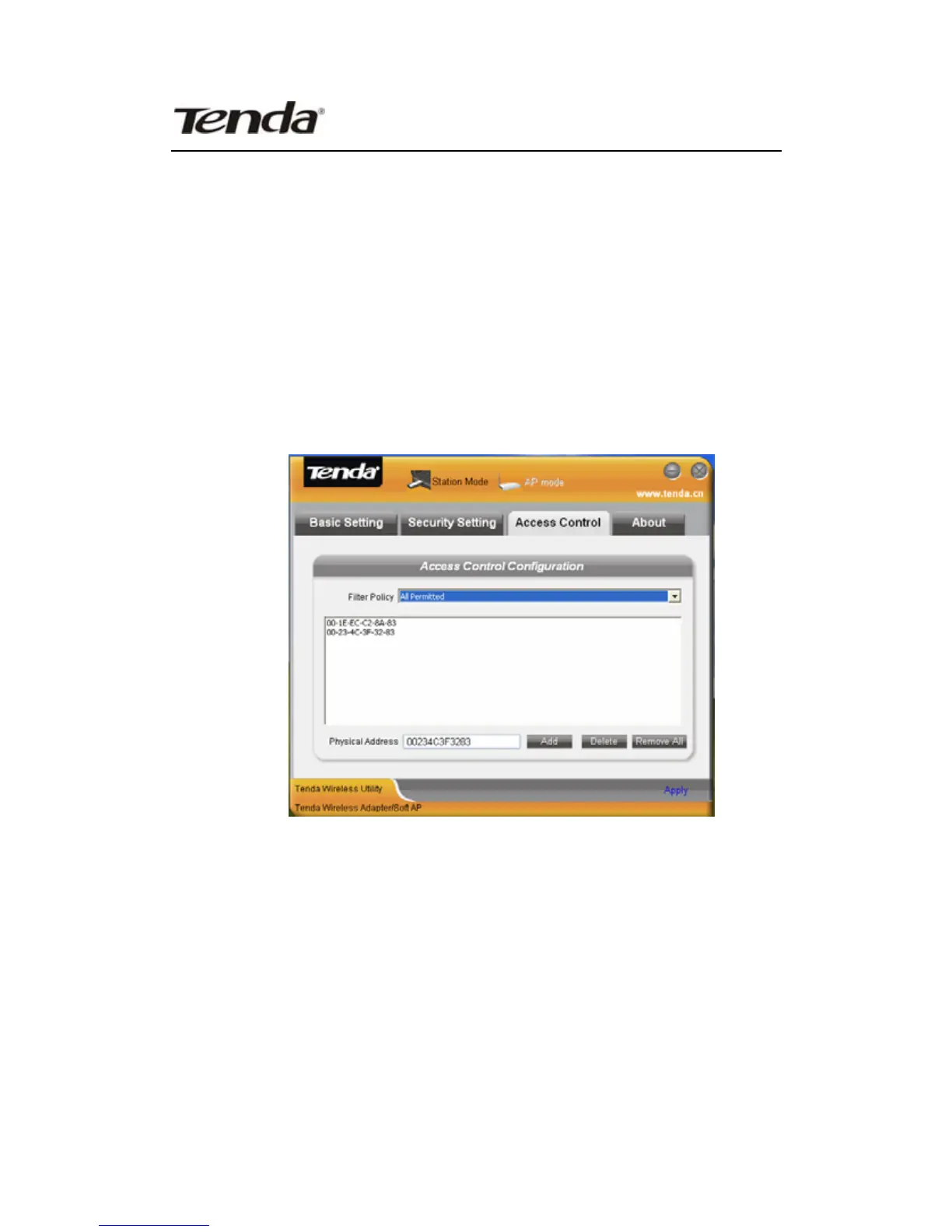

want to filter in the physical address field.
Add: To add the entered client MAC address to the list.
Delete: To delete an existing MAC address in the list.
Remove All: To delete all clients’ MAC address in the list.
1．Add the MAC address of the client’s wireless network
adapter to the list and select “All Permitted” in filter policy.
Computers whose MAC addresses are not added to the
list will be refused by default.
2. Select “All Blocked” in filter policy then only host
computers whose MAC address are included in the list
can not be connected to this AP wireless network.
3.2.4About
This interface displays the parameters regarding the
software as the picture below:
-31-

Tenda W311M Specifications

General

Interface	WLAN
Connectivity technology	Wireless
Chipset	-
Internal	No
Certification	FCC, CE, WEEE
Product color	Black, White
LED indicators	Activity, Link
Wi-Fi	Yes
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA, WPA2
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	150 Mbit/s
Gain	2 dBi
Sustainability certificates	RoHS
Minimum RAM	64 MB
Minimum processor	733MHz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 45 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 95 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	38.4 mm
Width	17.2 mm
Height	7.9 mm
