Tenda W311R User Manual

11N Wireless Broadband Router
34

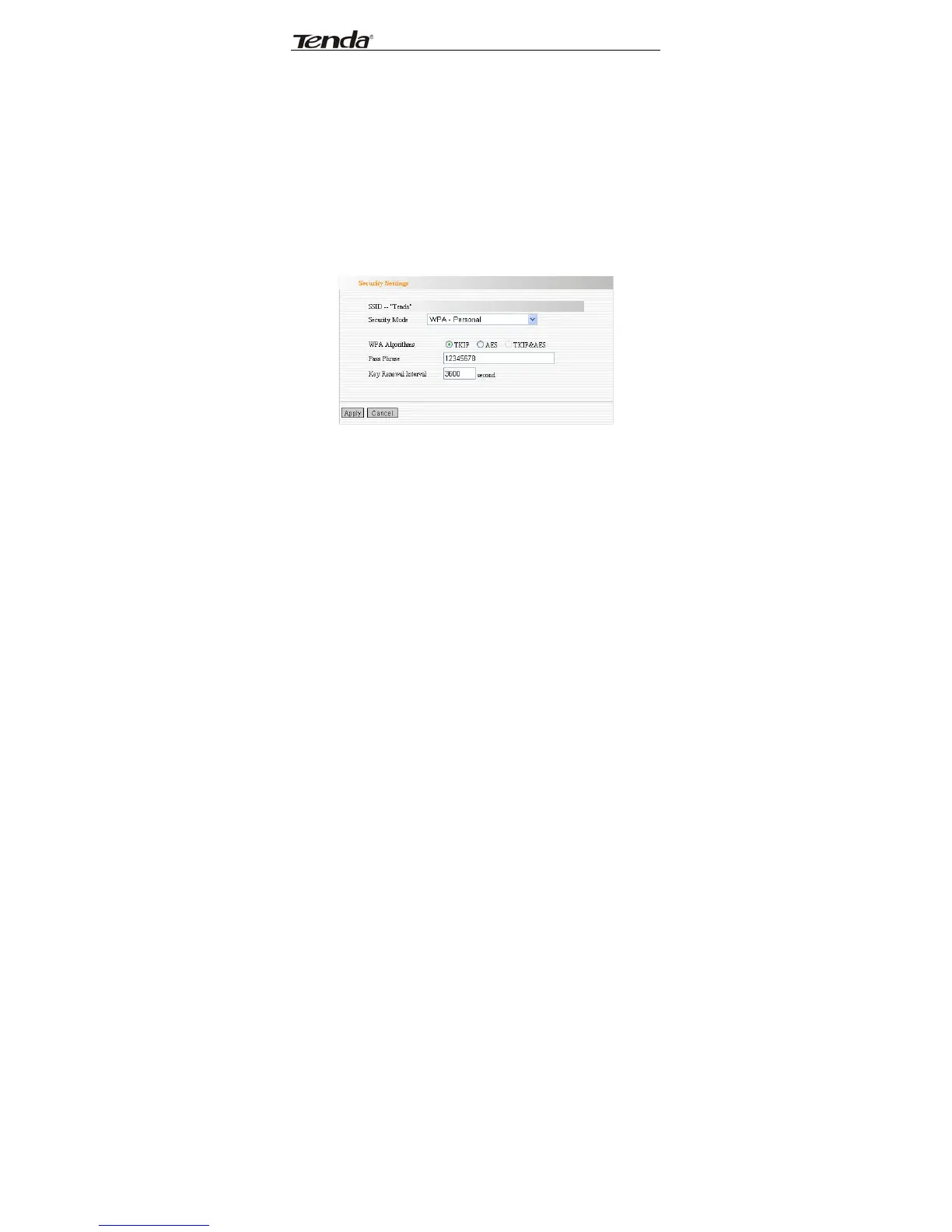

6.2.2 WPA-Personal
WPA (Wi-Fi Protected Access), a Wi-Fi standard, is a
more recent wireless encryption scheme, designed to
improve the security features of WEP. It applies more
powerful encryption types (such as TKIP [Temporal Key
Integrity Protocol] or AES [Advanced Encryption
Standard]) and can change the keys dynamically on
every authorized wireless device.
¾ Select SSID： Select the SSID (main SSID or
minor SSID) to configure security setting from the
drop-down menu.
¾ WPA Algorithms：Provides TKIP [Temporal Key
Integrity Protocol] or AES [Advanced Encryption
Standard]. The default is TKIP mode.
¾ Pass Phrase：Enter the encrypted characters with
8-63 ASCII characters.
¾ Key Renewal Interval： Set the key’s renewal
period.

Tenda W311R Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Interface	LAN, WAN, WLAN
Input voltage	110 - 240 V
Dimensions (WxDxH)	110.02 x 159.95 x 31 mm
Power requirements	9V DC, 1A
USB ports quantity	0
Networking features	Ethernet, Fast Ethernet
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100Mbit/s
WLAN data transfer rates supported	11, 54, 150 Mbit/s
DHCP client	No
Supported network protocols	PPPoE/PPTP/L2TP/DHCP server
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Bundled software	Internet Explorer 5.5 / Firefox 1.0
Certification	FCC, CE, RoHS, WEEE
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
LED indicators	LAN, Link, Power, WAN, WLAN

Weight and Dimensions

Weight	- g
