Tenda W311R User Manual

11N Wireless Broadband Router
50
Chapter 8 Virtual Server

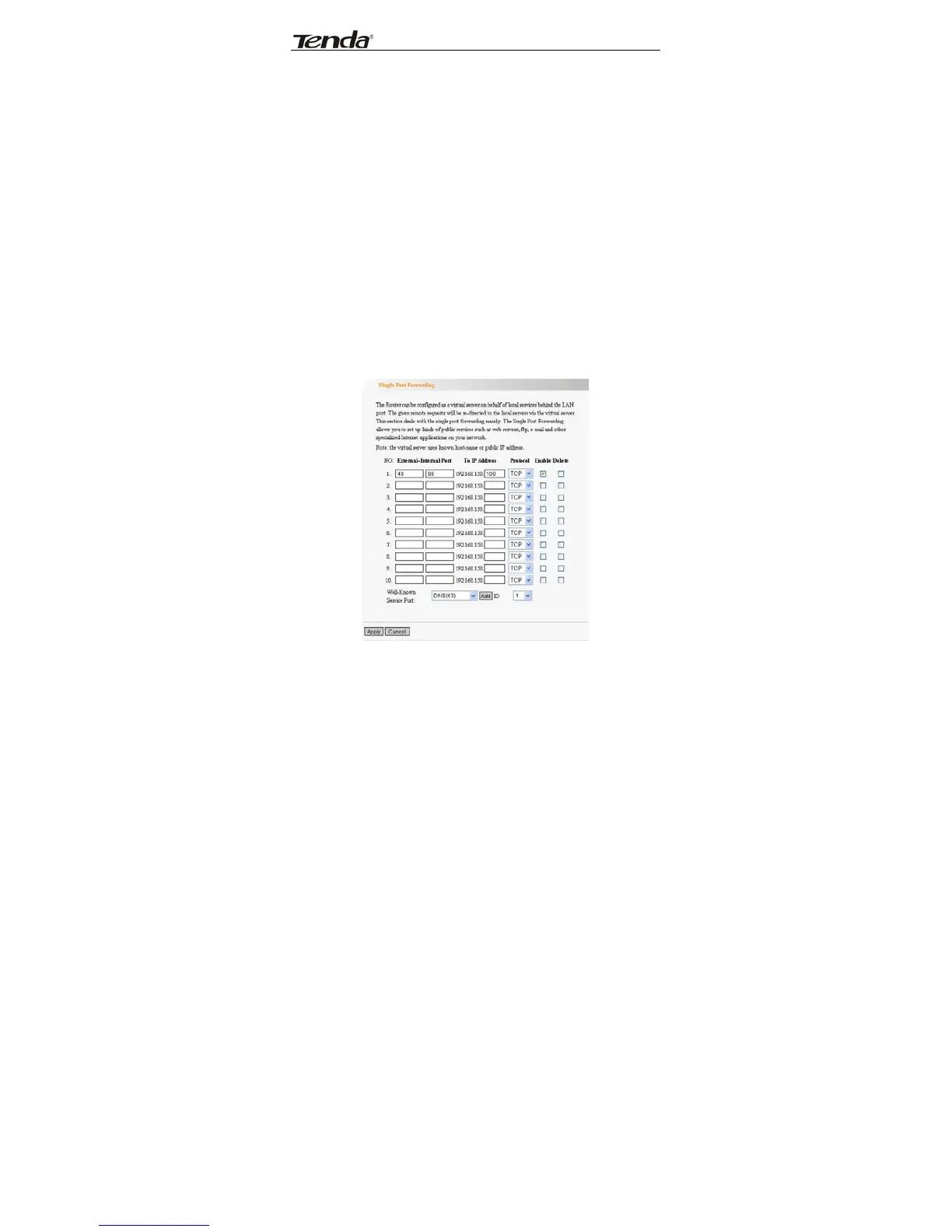

8.1 Single Port Forwarding
The Router can be configured as a virtual server on
behalf of local services behind the LAN port. The given
remote requests will be re-directed to the local servers
via the virtual server. This section deals with the single
port forwarding mainly. The Single Port Forwarding
allows you to set up kinds of public services such as web
servers, ftp, e-mail and other specialized Internet
applications on your network.
¾ External Port: This is the external (WAN) port
number for server or Internet application, for

Tenda W311R Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	11 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Interface	LAN, WAN, WLAN
Input voltage	110 - 240 V
Dimensions (WxDxH)	110.02 x 159.95 x 31 mm
Power requirements	9V DC, 1A
USB ports quantity	0
Networking features	Ethernet, Fast Ethernet
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100Mbit/s
WLAN data transfer rates supported	11, 54, 150 Mbit/s
DHCP client	No
Supported network protocols	PPPoE/PPTP/L2TP/DHCP server
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	5 dBi
Ethernet LAN (RJ-45) ports	4
Bundled software	Internet Explorer 5.5 / Firefox 1.0
Certification	FCC, CE, RoHS, WEEE
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
LED indicators	LAN, Link, Power, WAN, WLAN

Weight and Dimensions

Weight	- g
