11N Wireless Broadband Router
74

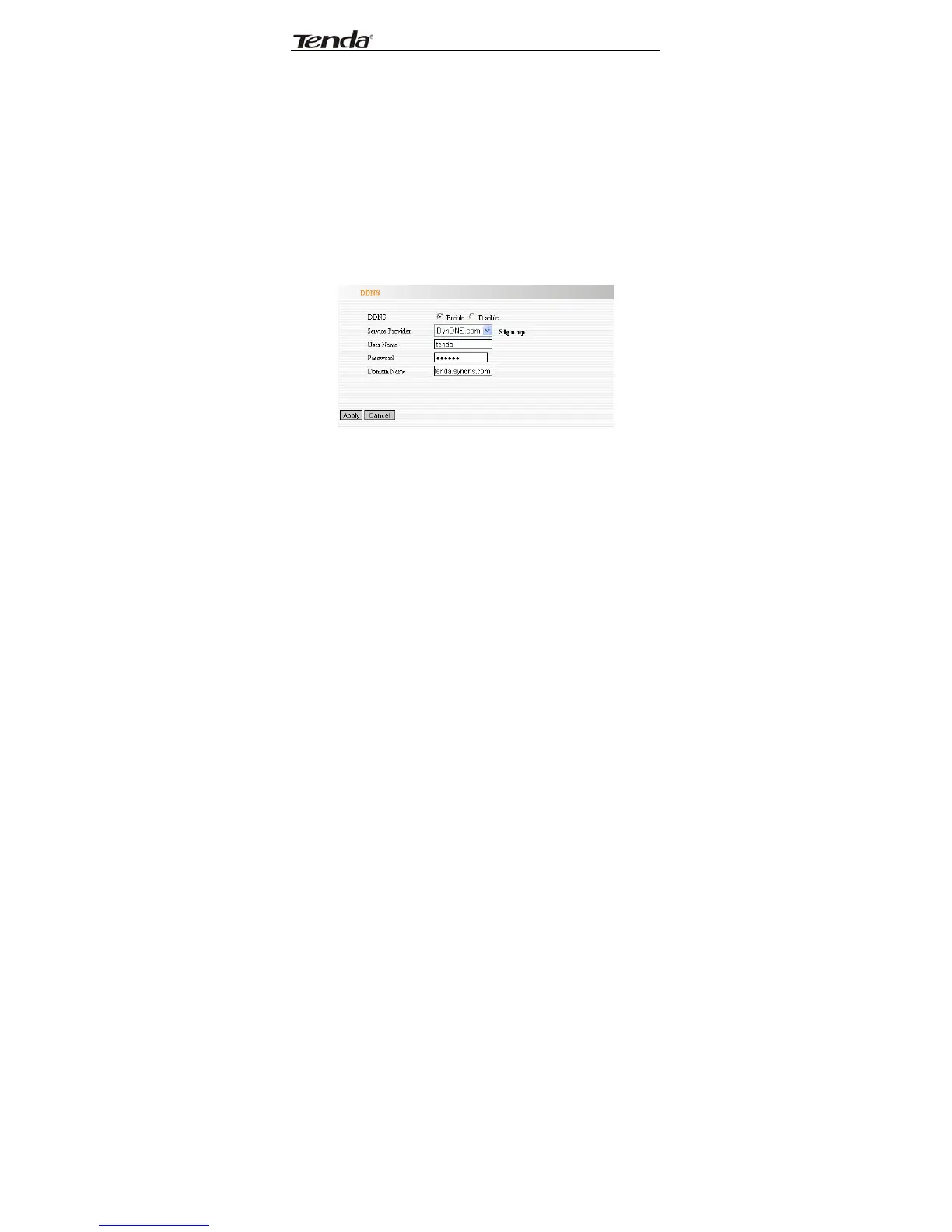

13.2 DDNS
The DDNS (Dynamic Domain Name System) is
supported in this Router. It is to assign a fixed host and
domain name to a dynamic Internet IP address, which is
used to monitor hosting website, FTP server and so on
behind the Router. If you want to activate this function,
please select “Enable” and a DDNS service provider to
sign up.
¾ Main Features:
Owing to ISP most times provides dynamic IP
address, DDNS is used to capture the changeable
IP address and match the fixed domain. Then users
can have access to the Internet to communicate
with others.
DDNS can help you establish virtual host in your
home and company.
¾ DDNS: Click the radio button to enable or disable
the DDNS service.
¾ Service Provider: Select one from the drop-down

Other manuals for Tenda W311R

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda W311R and is the answer not in the manual?

Tenda W311R Specifications

General IconGeneral
Ethernet LANYes
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates10, 100 Mbit/s
Ethernet LAN interface typeFast Ethernet
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity11 channels
Top Wi-Fi standardWi-Fi 4 (802.11n)
WLAN data transfer rate (max)150 Mbit/s
Bandwidth2.4 GHz
InterfaceLAN, WAN, WLAN
Input voltage110 - 240 V
Dimensions (WxDxH)110.02 x 159.95 x 31 mm
Power requirements9V DC, 1A
USB ports quantity0
Networking featuresEthernet, Fast Ethernet
Maximum data transfer rate0.1 Gbit/s
Supported data transfer rates10/100Mbit/s
WLAN data transfer rates supported11, 54, 150 Mbit/s
DHCP clientNo
Supported network protocolsPPPoE/PPTP/L2TP/DHCP server
Security algorithmsWEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity1
Antenna gain level (max)5 dBi
Ethernet LAN (RJ-45) ports4
Bundled softwareInternet Explorer 5.5 / Firefox 1.0
CertificationFCC, CE, RoHS, WEEE
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)5 - 95 %
Operating relative humidity (H-H)10 - 90 %
LED indicatorsLAN, Link, Power, WAN, WLAN
