3.G3 Pro Wiring & Panel Definition

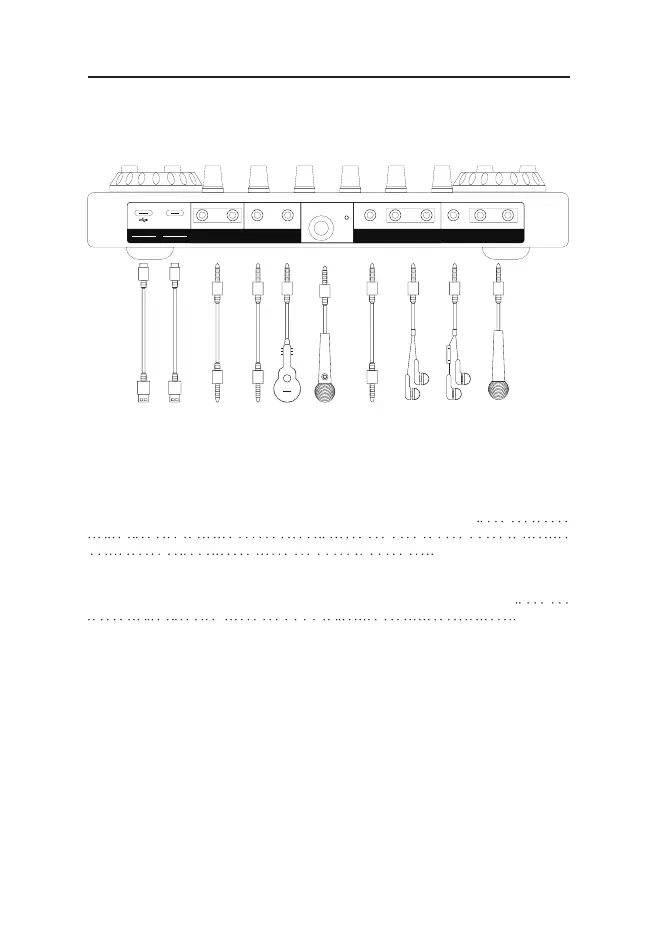

3.1 G3 Pro Audio Console Wiring Diagram
3
① USB-C Charging:DC+5V; USB-C charging port; ONLY Used for sound card charging.
② USB-C: USB-C OTG input/output port; Used for audio data transmission; Also used as a
PC or smartphone live streaming interface and PC or smartphone devices accompaniment
music input interface; The G3 Pro serves as an external audio console for the computer,
laptop, smartphone and tablet while live streaming, recording or singing. If you use iPhone
for live streaming or playing accompaniment, please use C100 or C101 USB-C to Lightning
Cable; Type-C port smartphone please use USB-C to USB-C cable.
③ Live: The processed sound can be output to the smartphone, tablet PC or other devices
with a 3.5mm TRRS cable. Can live stream to multiple platforms at the same time. Can be
connected to the computer microphone jack when using PC live streaming. If you use
iPhone for live streaming, please use 3.5mm to lightning adapter(but not included).
④ Music1: 3.5mm audio input port; Connect an external audio source or devices to the
audio console via an 3.5mm audio cable, to play background music during live streaming or
audio production. When playing accompaniment music, it can be connected to the phone
headphone jack and computer earphone jack.
⑤ Music2: 3.5mm input port; used for Music instrument devices audio input port.
⑥ Dynamic mic: 6.35mm dynamic microphone input jack.
⑦ Audio: 3.5mm output port; Connect audio playback device such as speakers and
headphones.
⑧ Monitor: 3.5mm output port; Monitor earphone jack, used to monitor all sound of audio
console in real-time.
⑨ Headset: 3.5mm input and output port; Used to voice input by a headphone with micro-
phone. ALSO simultaneously can be used to monitor all sound of audio console in real-time.
⑩ Mic: 3.5mm input port; Connect a 3.5 mm condenser microphone or dynamic micro-
phone, and the microphones does not require external power supply. [48V microphone need
a phantom power then use XLR to 3.5mm mic cable to connect the G3 Pro audio console].
G3 Pro audio console user manual
① ③ ④ ⑦ ⑧ ⑨ ⑩⑤ ⑥②
Dynamic mic
USB-C
Charging
Live1 Live2 Music1 Music2 Audio Monitor1 Monitor2 Headset
Mic1
Mic2
USB-C
OTG
