Tenma 72-6854 - Specification; Output Specifications

Tenma 72-6854 Instruction manual
Table of Contents
Specification 1
Safety 3
EMC 4
Installation 5
Connections 6
Operation 6
Maintenance 8
Specification
OUTPUT SPECIFICATIONS
Voltage Range: 0V to 35V
Current Range: 0A to 10A
Power Range: Up to 175W
Output Voltage Setting: By coarse and fine controls.
Output Current Setting: By single logarithmic control.

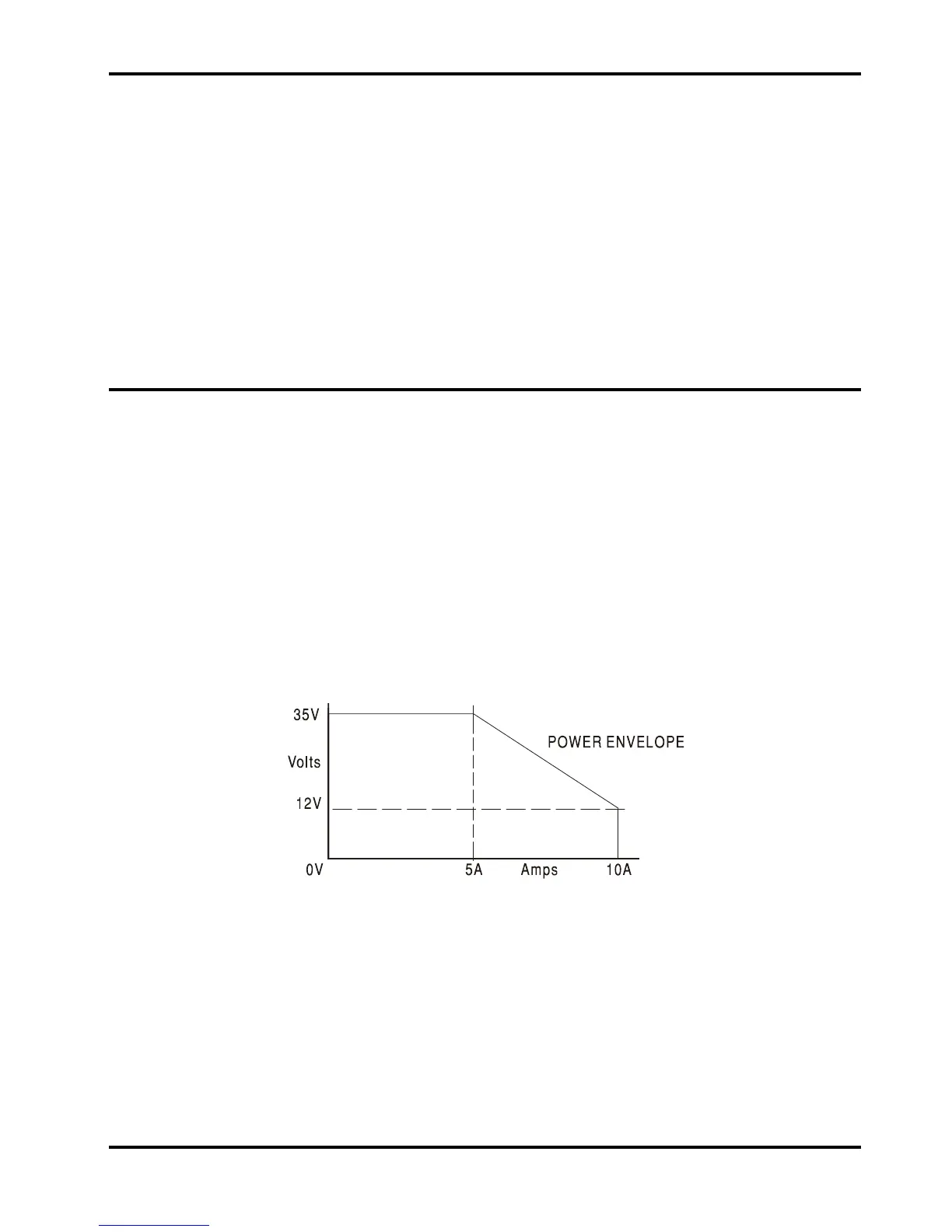

Operating Mode: Constant voltage or constant current with automatic cross-over provided
that the power demanded stays within the power envelope, see graph.
Outside of this envelope the output becomes unregulated.
Output Switch: Electronic. Preset voltage and current displayed when off.
Output Terminals: 4mm terminals on 19mm (0.75”) pitch. 30A max.
Sensing: Switchable between local and remote.
Spring-loaded push terminals for remote connection.
Output Impedance:
Typically <5mΩ in constant voltage mode.
Typically >5kΩ in constant current mode (voltage limit at max).
Output Protection: Forward protection by Over-Voltage Protection (OVP) trip; maximum
voltage that should be applied to the terminals is 50V.
Reverse protection by diode clamp for reverse currents up to 3A.
www.tenma.com 1
