DO NOT EXCEED THE MAXIMUM TENSION RANGE OF THE INSTRUMENT OR DAMAGE WILL OCCUR.
▪ To engage the instrument on the cable, first rotate the engagement
lever away from the instrument, raising the outer cable contact
guides. Next, position your cable beneath the outer cable contact
guides and above the center contact point. (See Figure 6)
▪ Once the cable is in place, squeeze the engagement lever shut until it
locks into position parallel with the instrument handle. Note: If it takes
a lot of force to close the lever, STOP!, something is binding or the
cable is too large in diameter. Closing the lever in this situation will
damage the instrument.
▪ Note the tension reading on the display. (See Figure 7)
Note the routing of the Cable.
Once cable is properly routed,
gently squeeze the
engagement lever back toward
the handle until it locks into the
engaged position, parallel to
the instrument handle.
Don’t over torque!
Note the routing of the Cable.
Ready the instrument to accept
cable by rotating engagement lever
away from handle.

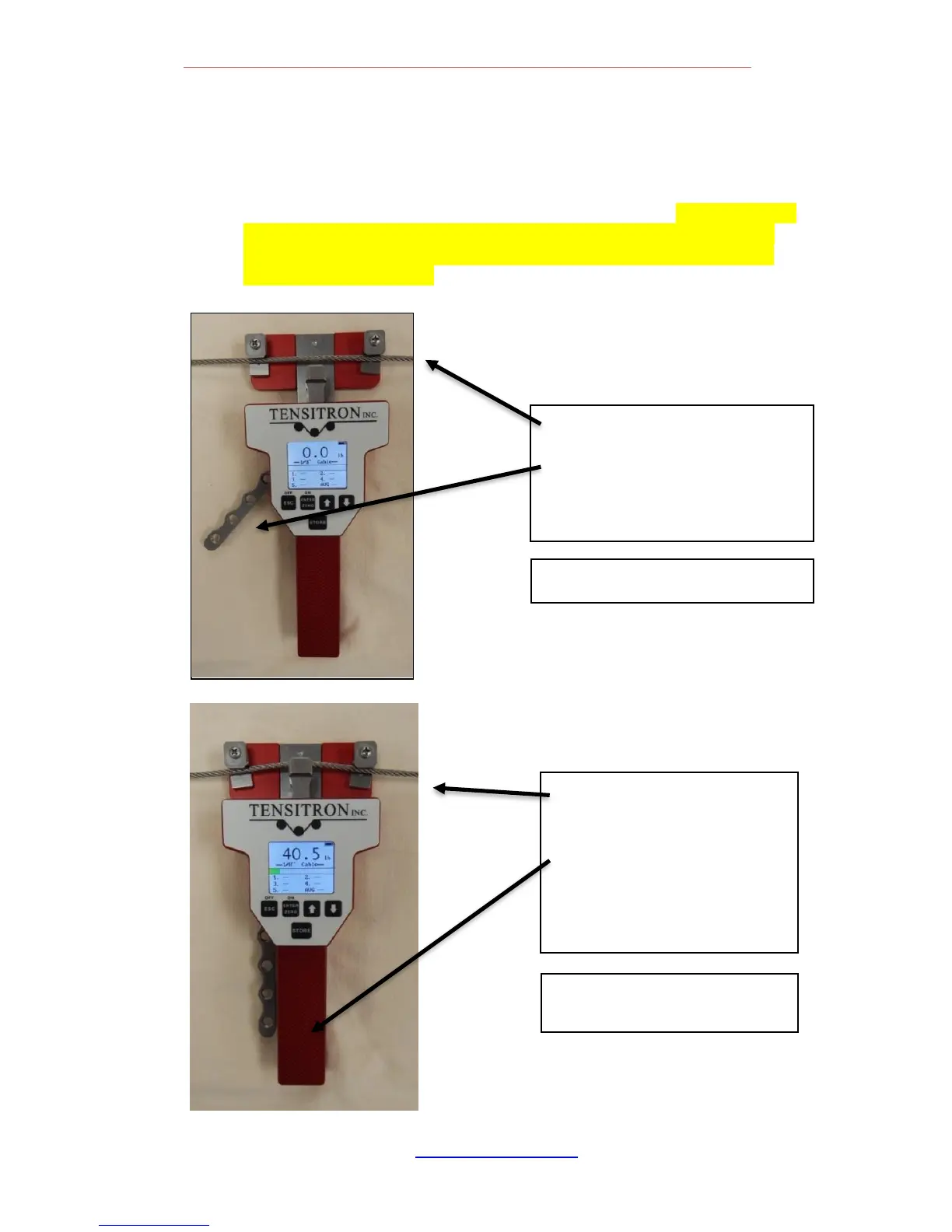

Figure 6: Instrument ready to engage
Figure 7: Instrument engaged
onto cable

TENSITRON ACX-100-1 Specifications

General

Brand	TENSITRON
Model	ACX-100-1
Category	Measuring Instruments
Language	English
