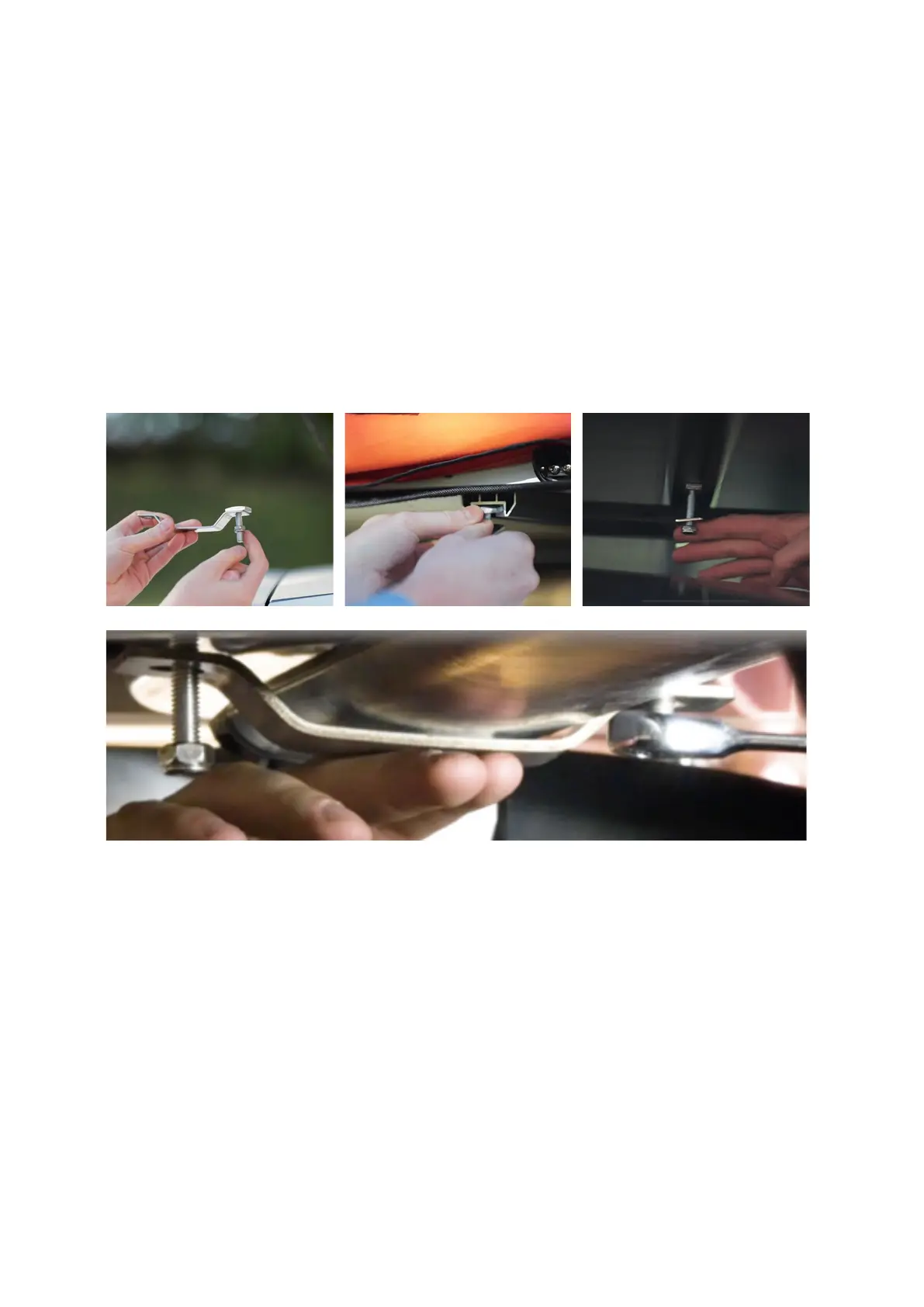

Step 1: Attach a plate to one of the t-shaped bolts, using the nut provided.
Step 2:Making sure the bolt is orientated correctly, and slide it onto the fixing rail.
Step 3: Position one bolt on either side of your roof bar, with the plate passing
undernath your roof bar, to act as a clamp.
Step 4: Using the nuts provided, tighten the larger plate to the hanging bolts, so that
it is securely fastened to your roof bar. Ensure that you tighten the nuts fully.
Step 5: Repeat the above steps at all 4 corners of your TentBox, so that you have 4
secure fixing clamps between your TentBox and your roof bars.
How to mount your TentBox
1. With the help of another person, carefully lift your TentBox onto your roof bars
and position centrally.
2. Fix the TentBox to your roof bars at 4 points (4 corners), using the fixing parts, as
shown below. Ensure that you tighten the nuts adequately, and that your TentBox is
secure.
