4
Bolt Manager
• Mount the Bolt transmitter onto the back of a Sony
VENICE camera, keeping the antennas clear of any
obstructions.
• Orient the transmitter and receiver antennas so
they are parallel to each other.
• For best results, orient the transmitter antennas
so each one has clear line−of−sight to the
receiver.
• DO NOT OVER-TIGHTEN
THE CAPTIVE SCREWS
USED TO ATTACH THE TRANSMITTER TO
THE BACK OF THE CAMERA. Doing so can
damage the camera chassis and/or camera
mount connector, voiding the warranty.

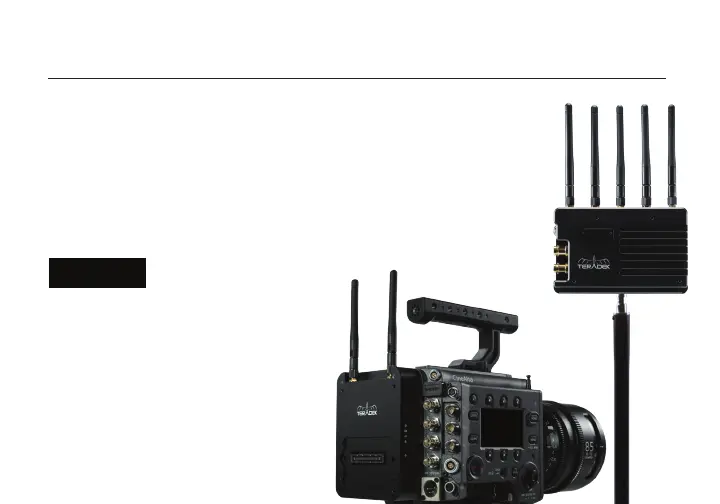

Bolt XT receiver can be
mounted vertically on a
light stand or monitor.
Sony Bolt transmitter
mounts on the back of a
Sony VENICE camera.
MOUNTING
CAUTION:
