5

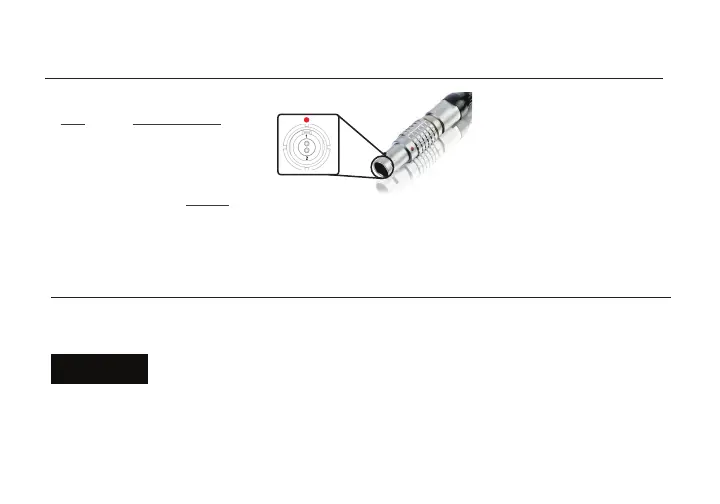

* Pin 1 is closest to the red dot on the connector
Pin Description
1* GND
2 +DC
Standalone Bolt devices use a 2−pin power connector
• Test the power cable polarity with ONLY the power cable connected to Bolt. Do not connect video cables.
• Check the power cable for shorts and proper grounding.
CAUTION:
Using a reverse polarity or improperly−constructed power cable can damage the
product and is not covered under warranty.
CUSTOM/THIRD PARTY CABLES
BOLT CONNECTOR/PIN-OUT
