3. Bin lift operation
3.5.1
SMT: Single Man Trade
(pick-up comb)
ã Terberg Machines B.V., IJsselstein, The Netherlands
All rights reserved. No part of this book may be reproduced, stored in database or retrieval system, or published, in any form or in any
way, electronically, mechanically, by print, photoprint, microfilm or any other means without prior written permission from the publisher.
Single man trade is a (semi-) automatic function that
m
akes it possible for one person to empty 4-wheel
containers or multiple 2-wheel bins.
1) Any pick-up arms should be folded in.
2) Check that the hopper plate (06) is closed.
3) Engage SMT:

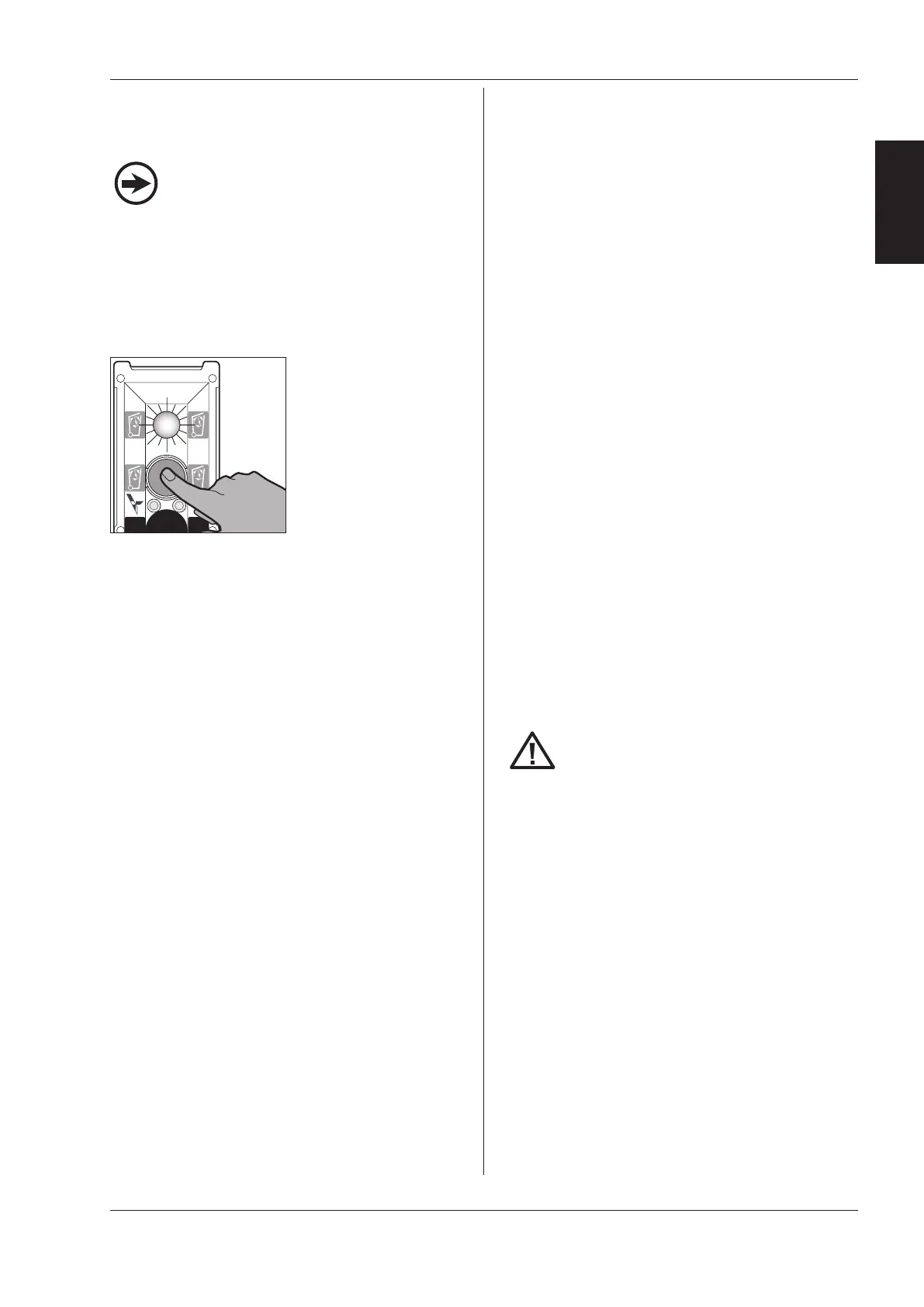

Press the green SMT
button (D), the green
indicator light (E) comes
on.
4a) 4-Wheel containers:
•
Roll the container against and above the pick-
up comb. The container is automatically lifted
by about 20 cm.
•
The bin lift now waits until an UP/DOWN
button on the L/H or R/H control station is
activated.
•
Then proceed as described in points 4 to 7
on the page to the left, except for Point 5.
4b) 2-Wheel bins:
•
Roll a bin left or right against and above the
pick-up comb.
The bin lift will wait a few seconds to see if a
second bin is rolled next to it. If this does not hap-
pen, the bin, after this time-out, is automatically
lifted by about 20 cm.
•
If a second bin is presented, both bins will be
automatically raised.
•
The bin lift now waits until an UP/DOWN
button on the L/H or R/H control station is
activated.
•
Then proceed as described in points 4 to 7
on the page to the left, except for Point 5.
Make sure that the bin/container is located
correctly on the pick-up comb.
One-man operation is only possible when
4-wheel containers are lifted with the pick-up
comb.
