1. Introduction

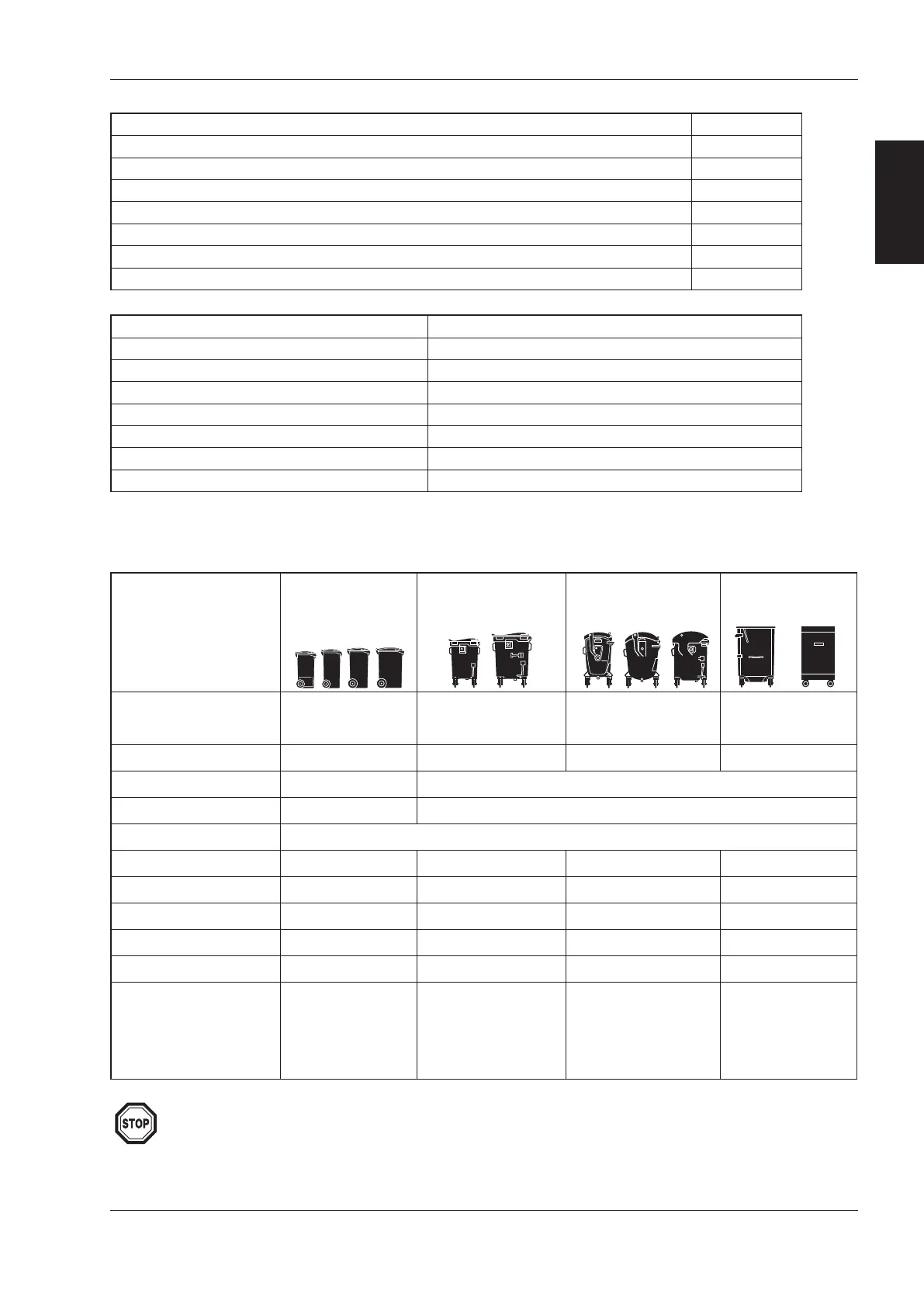

1.2 Technical specifications
ã Terberg Machines B.V., IJsselstein, The Netherlands
All rights reserved. No part of this book may be reproduced, stored in database or retrieval system, or published, in any form or in any
way, electronically, mechanically, by print, photoprint, microfilm or any other means without prior written permission from the publisher.
Directives and Standards 2006/42/EG, EN 1501-1 & EN 1501-5: 2011
Sound pressure
 65 dB(A)
Vibration
 2.5 m/s
2
Operating voltage 24 Volts DC
Current 10 Ampère / 24V DC
Oil flow 30-60 litre/minute
Working pressure compactor body Min. 190 bar / Max. 250 bar
Return pressure: Max. 2.0 bar
2-wheel bins 4-wheel containers
with flat lid
4-wheel containers
with roll top
Chamberlain /
Paladin containers
Capacity (litres) 80 - 390
500 - 770
1000 - 1280
770 - 1100 900
According to standard EN 840-1 EN 840-2 EN 840-3 --
Lifting capacity 1600 N (160 kg) 7500 N (750 kg)
Cycle time ±11.5 seconds ±10 seconds
Emptying time adjustable
Automatic emptying no no no no
Manual emptying yes yes yes yes
Pick-up via comb yes yes yes yes
Pick-up arms not applicable (optional) (optional) not applicable
Lid opener not applicable not applicable yes not applicable
Bin stop / catcherbar
position A
(working position)
500-770: position A
(working position)
1000-1280: position B
(folded-away)
position B
(folded-away)
position B
(folded-away)
Bin/container and bin lift information
Chamberlain
The emptying of bin/container types other than
those indicated above, is not permitted with
this bin lift system.
If in doubt, please contact your distributor.
Weights
Bin lift (without lid opener, mounting frame, pick-up arms, footboards) 521 kg
B
in lift weighing (without lid opener, mounting frame, pick-up arms, footboards) 588 kg
Bin lift with DIN pick-up arms (without lid opener, mounting frame, footboards) 552 kg
Lid opener, catcherbar assembly
[ref. fig. 5 in partsbook]
56 kg
Mounting frame 2.5m (30188)
[ref. fig. 6 in partsbook]
154 kg
Mounting frame 2.5m small (38070)
[ref. fig. 6 in partsbook]
54 kg
Hopper beam 2.5m (38156)
[ref. fig. 2 in partsbook]
22.5 kg
