Rubber Track Loader
11. Undercarriage Disassembly and Assembly
11-2

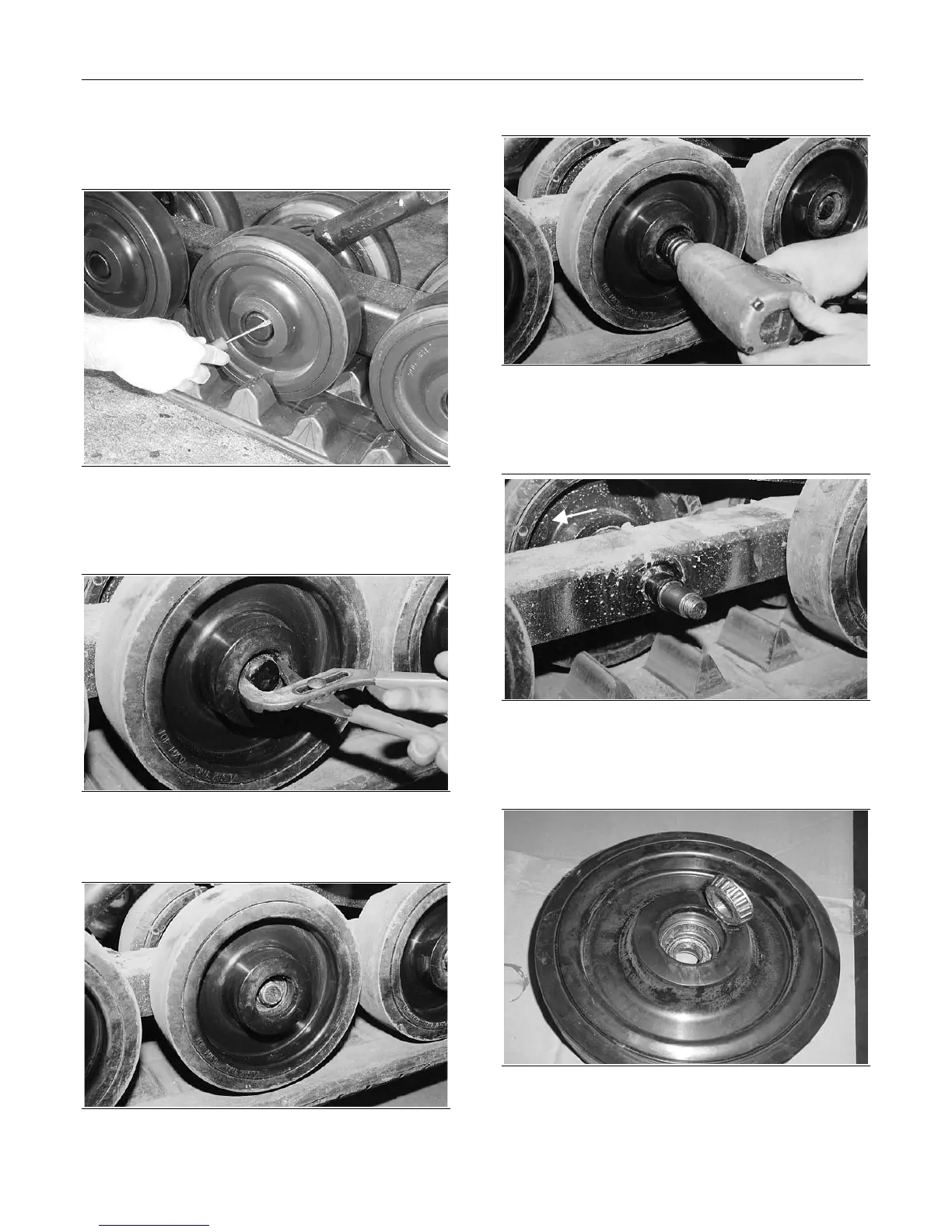

Wheel Removal
1. Locate the wheel cap snap ring.
Figure 11-1
2. Use a screw driver to remove the snap ring that
secures the wheel cap.
Figure 11-2
3. Using a large channel lock pliers, remove the
wheel cap.
Figure 11-3
Figure 11-4
4.
Using a socket, remove the nut that fastens the
wheel to the shaft. Remove the wheel with the
wheel extractor.
Inside Wheel
Figure 11-5
5. To remove an inside wheel, slide under the
machine and repeat the wheel removal
procedure.
Figure 11-6
6. With wheels removed, inspect the bearings and
axle for wear or damage.
