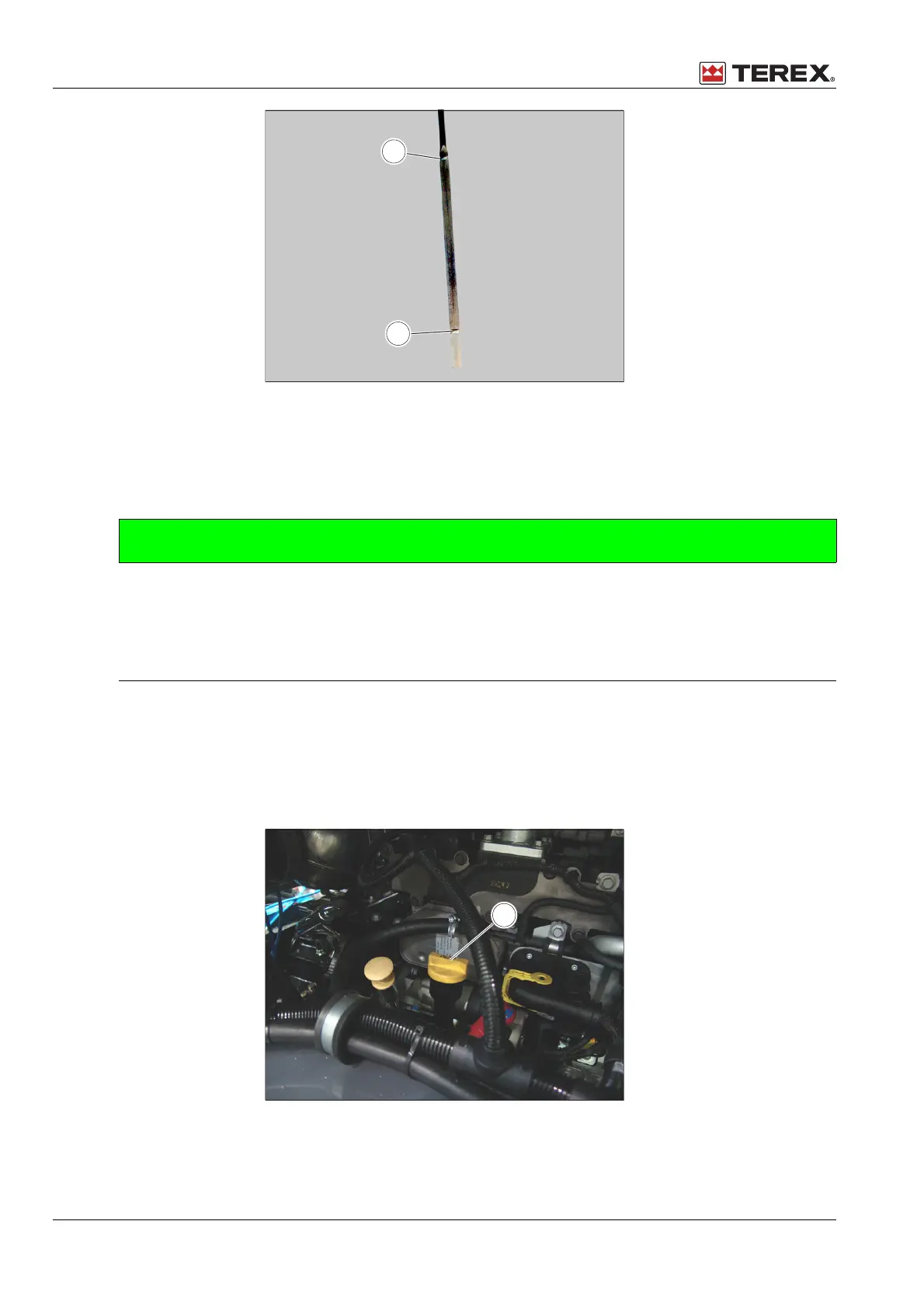

Figure 9.7. - Dipstick MAX and MIN marks
1. Maximum (MAX) Oil Level
2. Minimum (MIN) Oil Level
(2) To Add Oil
Oil is added through the filler cap - Figure 9.8 refers. Refer to the lubrication for the
recommended grade of oil.
Figure 9.8 - Engine Oil Filler
1. Filler Cap
PROCEDURE
1. Pull out the dipstick and wipe off with a lint free cloth or paper.
2. Re-insert the dipstick as far as it will go.
3. Extract the dipstick and read off the level
4. Add oil of the correct specification if necessary.
COV00033
1
2
COV00421
1
