Maintenance 9
1-October-2013 United Kingdom Operations Manual
Page 9 - 12 TA9 & 10 Tier 4
(2) To Add Hydraulic Oil
9.13 Fuel System
Refer to Figure 9.13.

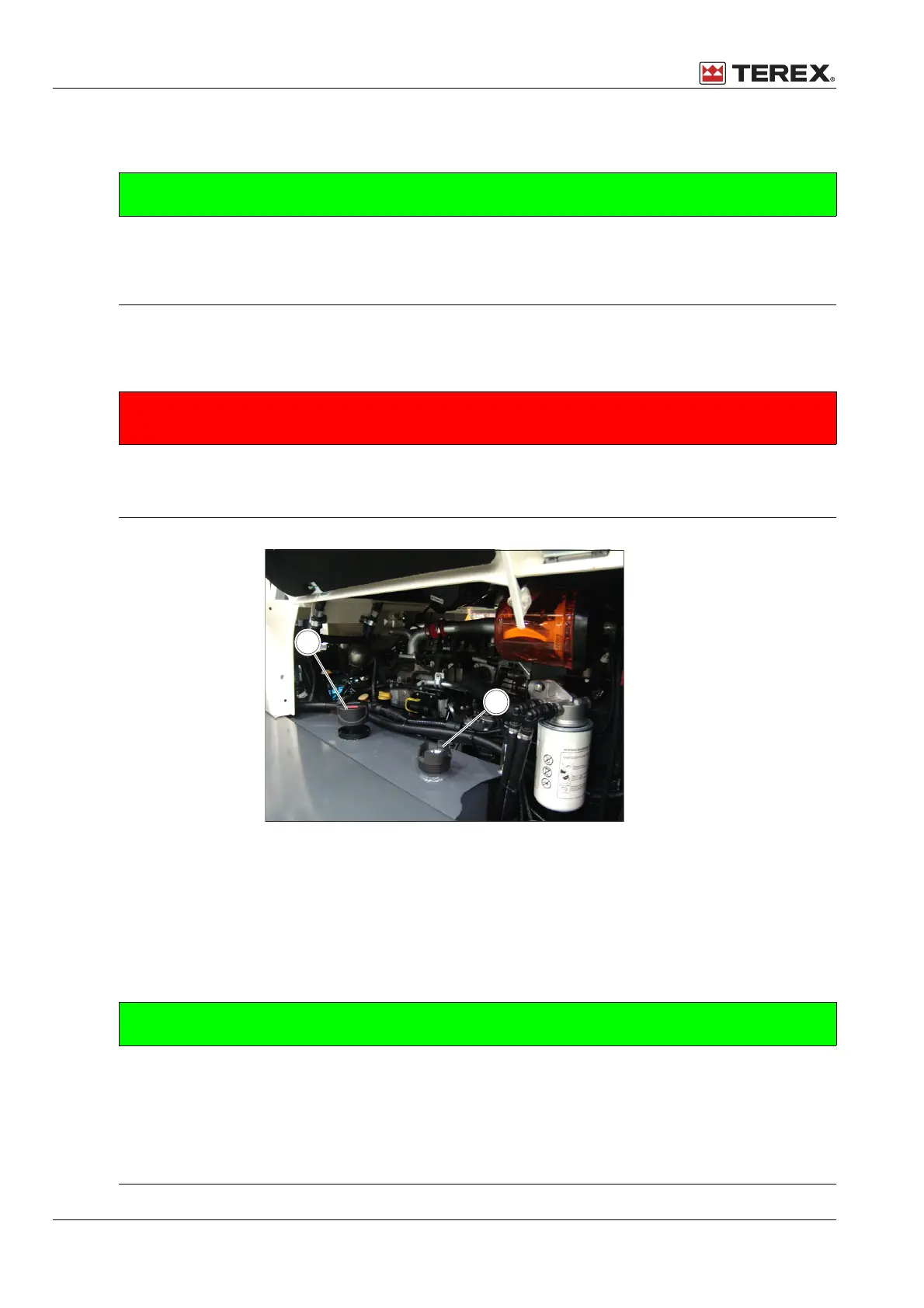

Figure 9.13. - Fuel Filler and Level Gauge
1. Fuel Filler
2. Level Gauge
(1) To Add Fuel
PROCEDURE
1. Remove the dipstick/filler
2. Add the correct grade of oil until it reaches the MAX mark on the dipstick.
3. Replace the dipstick/filler.
bDANGER
Avoid sparks, naked flames etc. when filling or maintaining the fuel system. Do not smoke when
filling the fuel tank or maintaining the fuel system. Do not leave the engine running when filling/
working on the fuel system.
PROCEDURE
1. Clean the area around the fuel filler cap.
2. Remove the filler cap and add the correct grade of fuel until it reaches the FULL mark on
the level gauge.
3. Replace the filler cap.
4. Clean up any spilt fuel.
