Terex TA9 Operation Manual

Operations Manual United Kingdom 1-October-2013
TA9 & 10 Tier 4 Page 9 - 11
Maintenance 9

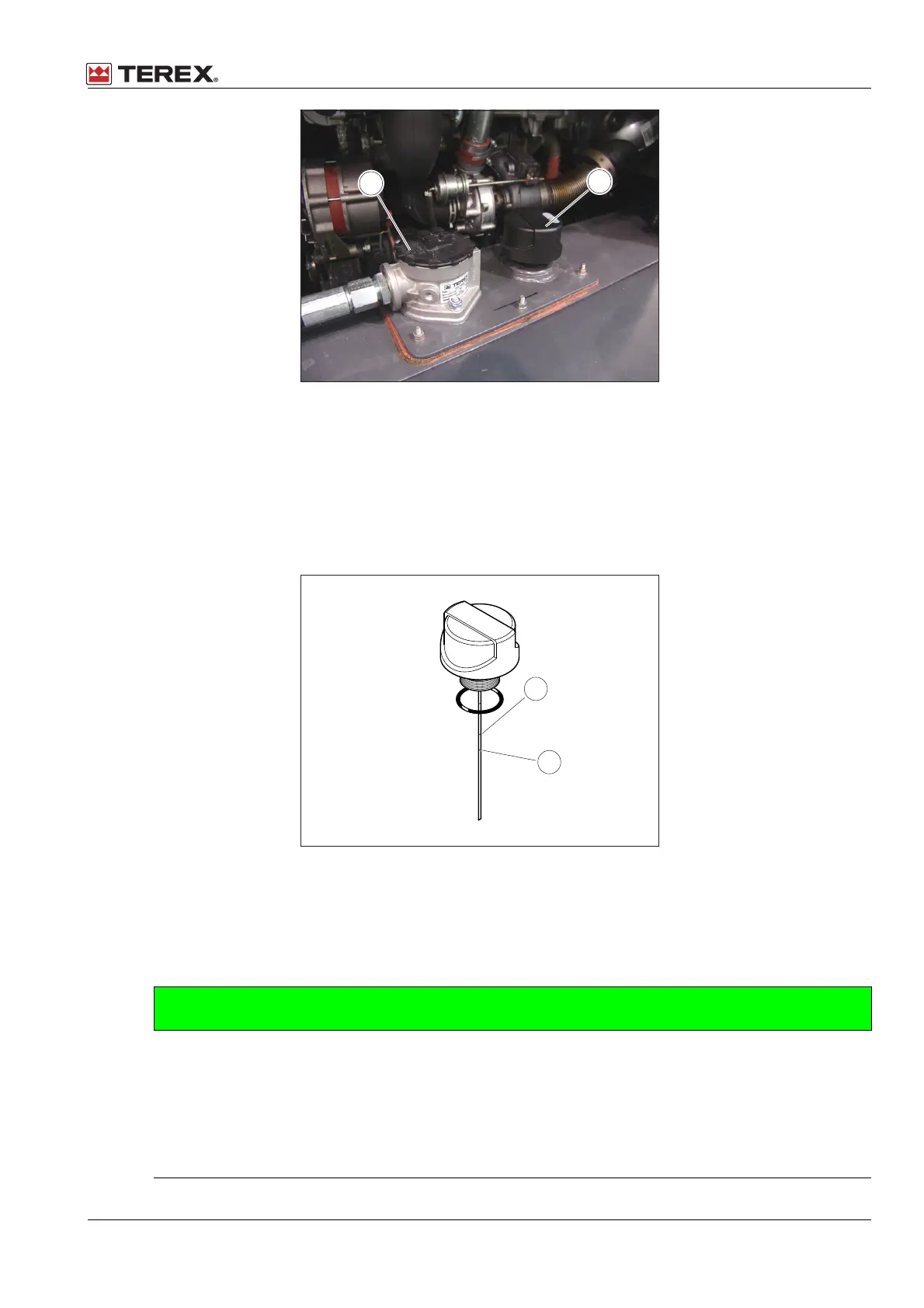

Figure 9.11. - Hydraulic Tank
1. Return Line Filter
2. Filler Dip Stick
(1) To Check the Hydraulic Oil Level
Refer to Figure 9.12.
Figure 9.12. - Hydraulic Tank Dipstick
1. MAX Mark
2. MIN Mark
PROCEDURE
1. Remove the dipstick/filler cap, take care not to loose the O ring.
2. Wipe all traces of oil from the dipstick with lint free cloth or paper.
3. Replace the dipstick.
4. Remove the dipstick again and check the oil level, it should be between MIN and MAX
5. If the oil is below the MIN mark add oil of the correct grade.
COV00416
1
2
COV00417
1
2
