Mounting on DIN rail / Крепление к ''DIN rail'' планке / Montaggio su barra DIN

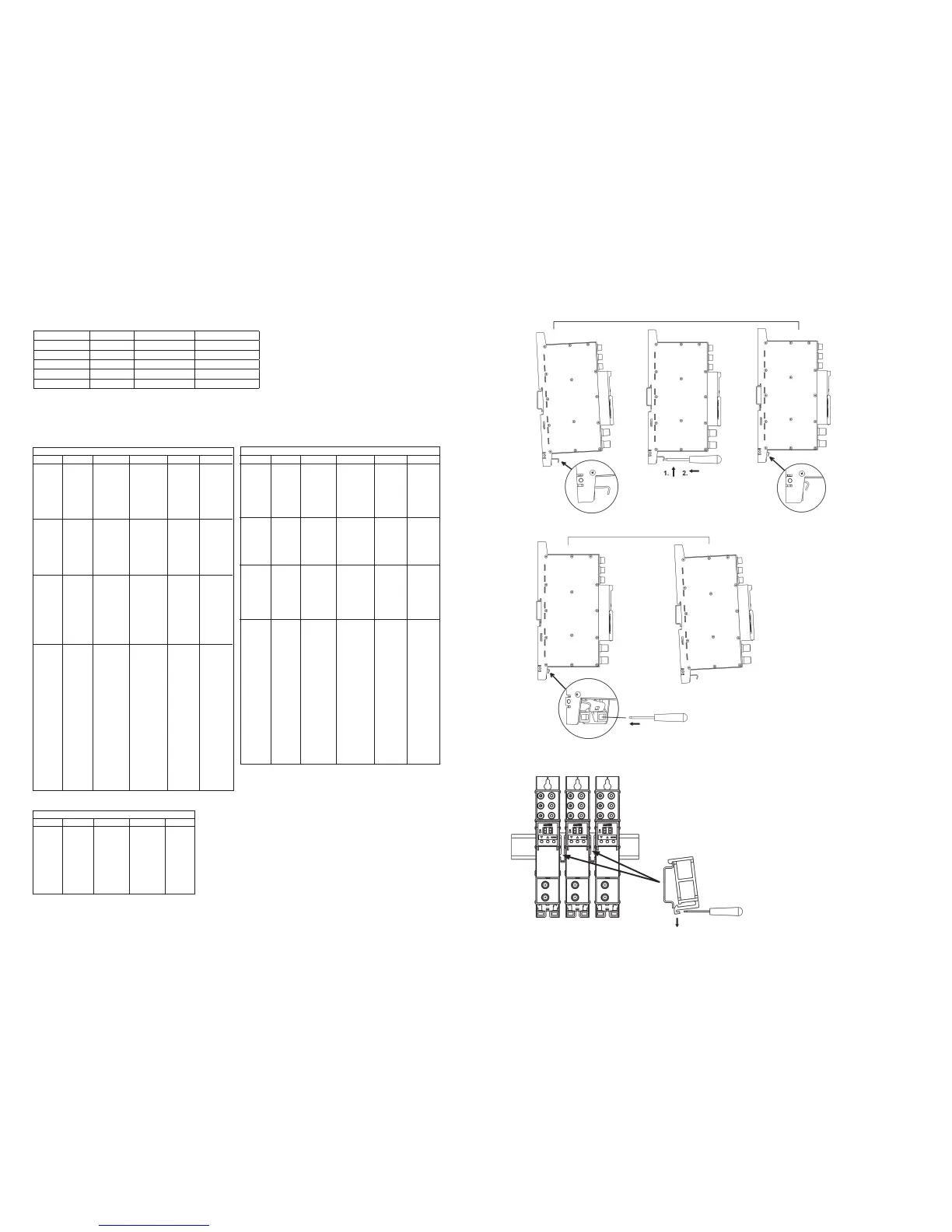

Figure 6. Mounting or removing to/from
DIN rail of plastic spacers (supplied).
Крепление пластиковых вставок на
планке ''DIN rail'' либо их демонтаж
с этой планки
(входят в комплект поставки).
Montaggio o rimozione su/da barra DIN
con distanziatori in plastica (1 incluso
nella confezione).
Figure 4. Mounting to DIN rail / Крепление к планке ''DIN rail'' / Montaggio su barra DIN
Figure 5. Mounting from DIN rail / Демонтаж с планки ''DIN rail'' / Montaggio su barra DIN
SYSTEM: B/CCIR
Band Channel Displayed Frequency Video C. Audio C.
S1 S3 03 118-125 119.25 124.75
S4 04 125-132 126.25 131.75
indicator S5 05 132-139 133.25 138.75
S S6 06 139-146 140.25 145.75
glows S7 07 146-153 147.25 152.75
S8 08 153-160 154.25 159.75
S9 09 160-167 161.25 166.75
S10 10 167-174 168.25 173.75
III E5 05 174-181 175.25 180.75
E6 06 181-188 182.25 187.75
i ndicator E7 07 188-195 189.25 194.75
S E8 08 195-202 196.25 201.75
does not E9 09 202-209 203.25 208.75
glow E10 10 209-216 210.25 215.75
E11 11 216-223 217.25 222.75
E12 12 223-230 224.25 229.75
S2 S11 11 230-237 231.25 236.75
S12 12 237-244 238.25 243.75
indicator S13 13 244-251 245.25 250.75
S S14 14 251-258 252.25 257.75
glows S15 15 258-265 259.25 264.75
S16 16 265-272 266.25 271.75
S17 17 272-279 273.25 278.75
S18 18 279-286 280.25 285.75
S19 19 286-293 287.25 292.75
S20 20 293-300 294.25 299.75
S3 S21 21 302-310 303.25 308.75
S22 22 310-318 311.25 316.75
indicator S23 23 318-326 319.25 324.75
S S24 24 326-334 327.25 332.75
glows S25 25 334-342 335.25 340.75
S26 26 342-350 343.25 348.75
S27 27 350-358 351.25 356.75
S28 28 358-366 359.25 364.75
S29 29 366-374 367.25 372.75
S30 30 374-382 375.25 380.75
S31 31 382-390 383.25 388.75
S32 32 390-398 391.25 396.75
S33 33 398-406 399.25 404.75
S34 34 406-414 407.25 412.75
S35 35 414-422 415.25 420.75
S36 36 422-430 423.25 428.75
S37 37 430-438 431.25 436.75
S38 38 438-446 439.25 444.75
S39 39 446-454 447.25 452.75
S40 40 454-462 455.25 460.75
S41 41 462-470 463.25 468.75
VHF BAND I, III CHANNELS AND SR2, S2 CHANNELS / КАНАЛЫ I, III МВ ДИАПАЗОНОВ И КАНАЛЫ SR2, S2 /
CANALI BANDA VHF , BANDA I, III SR2, S2
SYSTEM: D/OIRT
Band Channel Displayed Frequency Video C. Audio C.
SR1 SR1 01 110-118 111.25 117.75
SR2 02 118-126 119.25 125.75
indicator SR3 03 126-134 127.25 133.75
S SR4 04 134-142 135.25 141.75
glows SR5 05 142-150 143.25 149.75
SR6 06 150-158 151.25 157.75
SR7 07 158-166 159.25 165.75
SR8 08 166-174 167.25 173.75
III 6 06 174-182 175.25 181.75
7 07 182-190 183.25 189.75
indicator 8 08 190-198 191.25 197.75
S 9 09 198-206 199.25 205.75
glows 10 10 206-214 207.25 213.75
11 11 214-222 215.25 221.75
12 12 222-230 223.25 229.75
SR2 SR11 11 230-238 231.25 237.75
SR12 12 238-246 239.25 245.75
indicator SR13 13 246-254 247.25 253.75
S SR14 14 254-262 255.25 261.75
glows SR15 15 262-270 263.25 269.75
SR16 16 270-278 271.25 277.75
SR17 17 278-286 279.25 285.75
SR18 18 286-294 287.25 293.75
SR3 S19 19 294-302 295.25 301.75
S20 20 302-310 303.25 309.75
indicator S21 21 310-318 311.25 317.75
S S22 22 318-326 319.25 325.75
glows S23 23 326-334 327.25 333.75
S24 24 334-342 335.25 341.75
S25 25 342-350 343.25 349.75
S26 26 350-358 351.25 357.75
S27 27 358-366 359.25 365.75
S28 28 366-374 367.25 373.75
S29 29 374-382 375.25 381.75
S30 30 382-390 383.25 389.75
S31 31 390-398 391.25 397.75
S32 32 398-406 399.25 405.75
S33 33 406-414 407.25 413.75
S34 34 414-422 415.25 421.75
S35 35 422-430 423.25 429.75
S36 36 430-438 431.25 437.75
S37 37 438-446 439.25 445.75
S38 38 446-454 447.25 453.75
S39 39 454-462 455.25 461.75
S40 40 462-470 463.25 469.75
SYSTEM: I/South Africa
Band Channel Displayed Vision C. Audio C.
III 4 04 175.25 181.25
5 05 183.25 189.25
indicator 6 06 191.25 197.25
S 7 07 199.25 205.25
does not 8 08 207.25 213.25
glow 9 09 215.25 221.25
10 10 223.25 229.25
11 11 231.25 237.25
12 12 239.25 245.25
13 13 247.25 253.25
Table 4
Table 3
Table 2
TV system setting / Установка ТВ системы / Impostazioni sistema TV
TV system Displayed Audio subcarrier Video standard
B/G
b3
5.5 MHz PAL
D/K
d1
6.5 MHz PAL, SECAM
Australia
A3
5.5 MHz PAL
I
i4
6.0 MHz PAL
L
L5
6.5 MHz SECAM
