Terra mt420 - Installation Instructions; Mounting; Connection of Cables

Installation instructions
Read the safety instruction rst.
If RF IN connector on the modulator is not used, connect the 75 Ω isolated load (supplied).
Do not connect TV antennas to modulator RF IN connector directly. To combine TV signals of antennas and the modulator,
plug in booster with output-to-input isolation ≥20 dB between antenna output and RF IN connector.
If used only one section of the modulator, it is recommended to switch off RF signal of unused section.
ATTENTION!
1. Modulator RF output is switched off in both sections when broadcast standard has been changed.
2. Setting to other broadcast standards should be done before setting any other parameters.
3. If the DC current is inserted in the RF input or output do not use 75 Ω terminator without DC isolation.
The RF output level of the modulator should be set after half hour of warm-up. The difference between RF channel levels
should not exceed ±2 dB. Where adjacent channels operation is required it is recommended to set ratio of V/A carriers 16 dB.
Mounting
The modulator must be xed with steel screws Ø 3.5-4 mm. The screws are not included in a package.
Mounting on a wall by screws Mounting on a bracket (supplied)
15
2
Connection of cables
Perpendicular to the wall Parallel to the wall

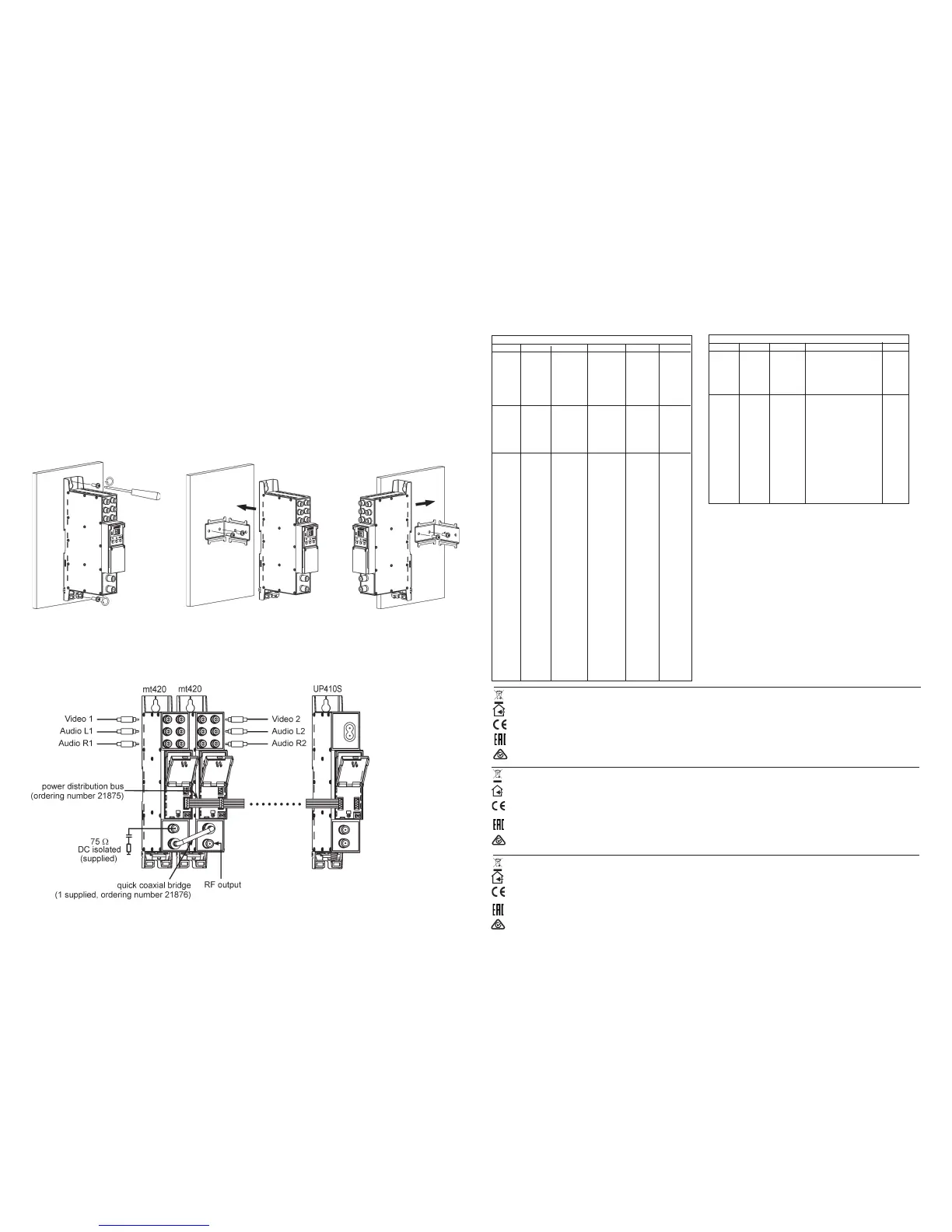

Figure 2. Mounting of the modulator
Figure 3. Powering of the modulator
SYSTEM: Australian
Band Channel Displayed Frequency Video C. Audio C.
VHF S3 03 118-125 119.25 124.75
Mid- S4 04 125-132 126.25 131.75
band S5 05 132-139 133.25 138.75
S6 06 139-146 140.25 145.75
indicator S7 07 146-153 147.25 152.75
S S8 08 153-160 154.25 159.75
glows S9 09 160-167 161.25 166.75
S10 10 167-174 168.25 173.75
III 6 06 174-181 175.25 180.75
7 07 181-188 182.25 187.75
indicator 8 08 188-195 189.25 194.75
S 9 09 195-202 196.25 201.75
does not 10 10 208-215 209.25 214.75
glow 11 11 215-222 216.25 221.75
12 12 223-230 224.25 229.75
Hyper- S11 11 230-237 231.25 236.75
band S12 12 237-244 238.25 243.75
S13 13 244-251 245.25 250.75
indicator S14 14 251-258 252.25 257.75
S S15 15 258-265 259.25 264.75
glows S16 16 265-272 266.25 271.75
S17 17 272-279 273.25 278.75
S18 18 279-286 280.25 285.75
S19 19 286-293 287.25 292.75
S20 20 293-300 294.25 299.75
S21 21 302-309 303.25 308.75
S22 22 309-316 310.25 315.75
S23 23 316-323 317.25 322.75
S24 24 323-330 324.25 329.75
S25 25 330-337 331.25 336.75
S26 26 337-344 338.25 343.75
S27 27 344-351 345.25 350.75
S28 28 351-358 352.25 357.75
S29 29 358-365 359.25 364.75
S30 30 365-372 366.25 371.75
S31 31 372-379 373.25 378.75
S32 32 379-386 380.25 385.75
S33 33 386-393 387.25 392.75
S34 34 393-400 394.25 399.75
S35 35 400-407 401.25 406.75
S36 36 407-414 408.25 413.75
S37 37 414-421 415.25 420.75
S38 38 421-428 422.25 427.75
S39 39 428-435 429.25 434.75
S40 40 435-442 436.25 441.75
S41 41 442-449 443.25 448.75
S42 42 449-456 450.25 455.75
S43 43 456-463 457.25 462.75
S44 44 463-470 464.25 469.75
Table 5
SYSTEM: L/France
Band Channel Displayed Frequency Video C. Audio C.
III L 05 05 174.75-182.75 176.00 182.50
L 06 06 182.75-190.75 184.00 190.50
indicator L 07 07 190.75-198.75 192.00 198.50
S L 08 08 198.75-206.75 200.00 206.50
does not L 09 09 206.75-214.75 208.00 214.50
glow L 10 10 214.75-222.75 216.00 222.50
Inter- B 01 115.5-123.5 116.75 123.25
bande C 02 127.5-135.5 128.75 135.25
D 03 139.5-147.5 140.75 147.25
indicator E 04 151.5-159.5 152.75 159.25
S F 05 163.5-171.5 164.75 171.25
glows G 06 175.5-183.5 176.75 183.25
H 07 187.5-195.5 188.75 195.25
I 08 199.5-207.5 200.75 207.25
J 09 211.5-219.5 212.75 219.25
K 10 223.5-231.5 224.75 231.25
L 11 235.5-243.5 236.75 243.25
M 12 247.5-255.5 248.75 255.25
N 13 259.5-267.5 260.75 267.25
O 14 271.5-279.5 272.75 279.25
P 15 283.5-291.5 284.75 291.25
Q 16 295.5-303.5 296.75 303.25
Table 6
VHF BAND I, III CHANNELS AND SR2, S2 CHANNELS / КАНАЛЫ I, III МВ ДИАПАЗОНОВ И КАНАЛЫ SR2, S2 /
CANALI VHF BANDA I, III E SR2, S2
UP410S - power supply
This product complies with the relevant clauses of the European Directive 2002/96/EC. The unit must be recycled
or discarded according to applicable local and national regulations.
Equipment intended for indoor usage only.
TERRA conrms, that this product is in accordance to following norms of EU: EMC norm EN50083-2,safety norm EN60065 and RoHS norm EN50581.
TERRA conrms, that this product is in accordance with Custom Union Technical Regulations: “Electromagnetic compatibility of technical
equipment“ CU TR 020/2011, “On safety of low-voltage equipment“ CU TR 004/2011.
TERRA conrms, that this product is in accordance with safety standard AS/NZS 60065 and EMC standards of Australia.
Questo prodotto è conforme alle speciche rilevanti della direttiva Europea 2002/96/EC. Il prodotto deve essere riciclato o smaltito
secondo la legge e le procedure applicate nella propria nazione in material di riuti elettronici.
Solo per uso interno.
TERRA dichiara, che questo prodotto è conforme alle normative EU: EMC EN50083-2, normativa di sicurezza EN60065 e normatica
RoHs EN50581.
TERRA dichiara che questo prodotto è conforme alle Normative Tecniche Armonizzate “Compatibilità Elettromagnetica
per apparecchiature elettriche” CU TR 020/2011 e “Sicurezza per apparecchiature a bassa tensione” CU TR 004/2011.
TERRA conferma che questo prodotto è conforme alla norma di sicurezza AS/NZS 60065 e EMC standard dell'Australia.
Данный продукт соответствует требованиям Европейской Директивы 2002/96/EC. Устройство должно быть переработано или
утилизировано в соответствии с местными и региональными правилами.
Оборудование предназначено работать в закрытых помещениях.
TERRA гарантирует, что данный продукт соответствует следующим нормам Европейского Союза:
электромагнитной совместимости EN50083-2, безопасности EN60065 и RoHS EN50581.
TERRA гарантирует, что данный продукт соответствует требованиям технических регламентов Таможенного Союза: “Электромагнитная
совместимость технических средств“ ТР ТС 020/2011, “О безопасности низковольтного оборудования“ ТР ТС 004/2011.
TERRA гарантирует, что данный продукт соответствует нормам безопасности по стандарту AS/NZS 60065
и нормам электромагнитной совместимости по стандартам Австралии.
