TES APM-15 User Manual

9

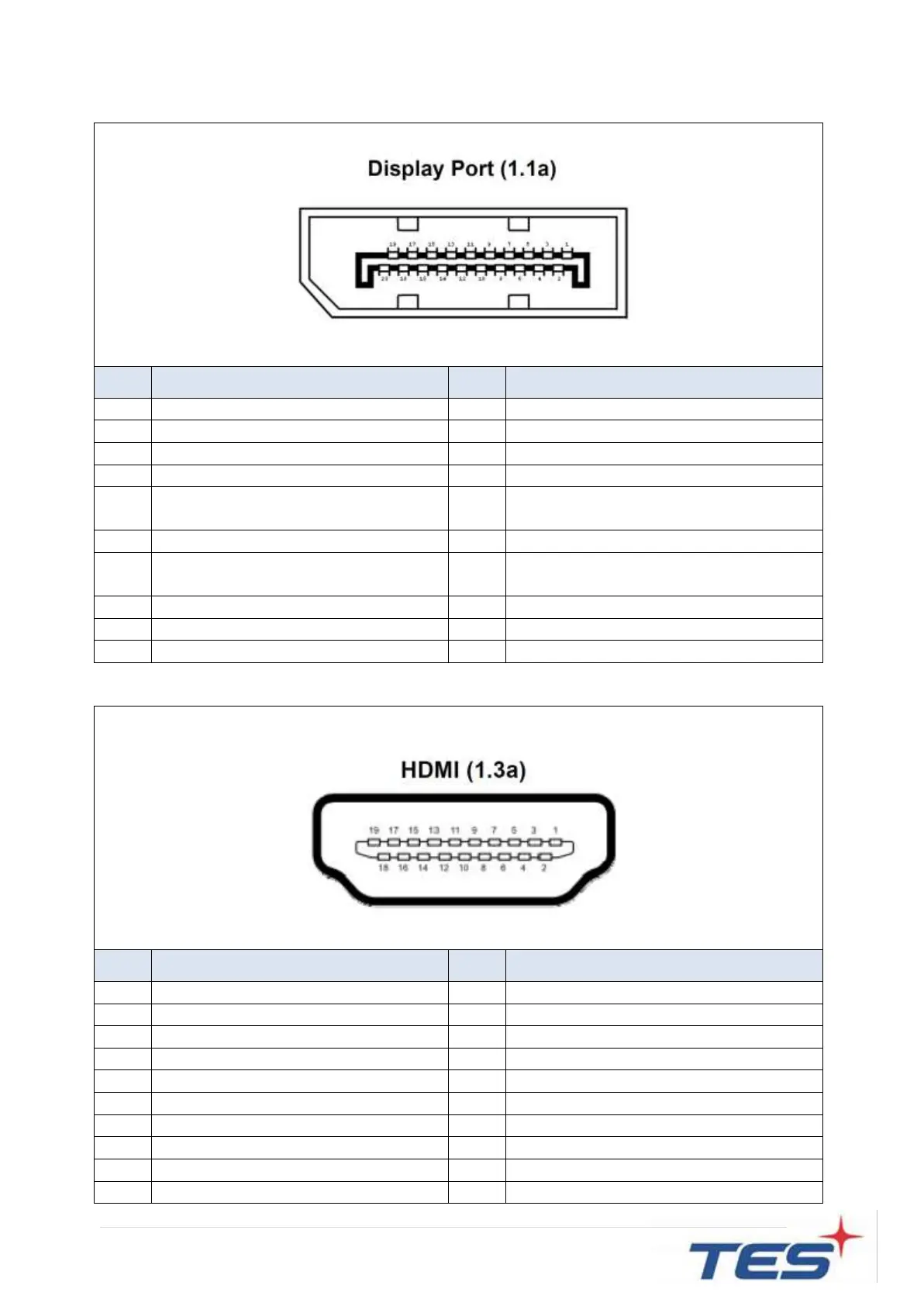

Pin
Signal
Pin
Signal
1
ML_Lane 0(p) Data0 +
11
Signal ground
2
Signal ground
12
ML_Lane 3(n) Data3 -
3
ML_Lane 0(n) Data0 -
13
Signal ground
4
ML_Lane 1(p) Data1 +
14
Signal ground
5
Signal ground
15
AUX_CH(p) AUX + Signal for
Auxiliary Channel
6
ML_Lane 1(n) Data1 -
16
Signal ground
7
ML_Lane 2(p) Data2 +
17
AUX_CH(n) AUX - Signal for
Auxiliary Channel
8
Signal ground
18
Hot Plug
9
ML_Lane 2(n) Data 2 -
19
DP_PWR Return
10
ML_Lane 3(p) Data3 +
20
DP_PWR
Pin
Signal
Pin
Signal
1
TMDS Data2+
11
TMDS Clock Shield
2
TMDS Data2 Shield
12
TMDS Clock–
3
TMDS Data2–
13
CEC
4
TMDS Data1+
14
Reserved (N.C. on device)
5
TMDS Data1 Shield
15
SCL
6
TMDS Data1–
16
SDA
7
TMDS Data0+
17
DDC/CEC Ground
8
TMDS Data0 Shield
18
+5V Power
9
TMDS Data0–
19
Hot Plug Detect
10
TMDS Clock+
