Tesco ML50-20 - Figure 3; Lower Control Station

1-2
Page 6
TESCO EQUIPMENT LLC
ML50-20 MAINTENANCE LIFT
B. Lower Control Station
NOTE: In the event of an emergency, depress the red mushroom head control marked
EMERGENCY STOP. This cuts power to all control switches and stop the engine. To reset
the EMERGENCY STOP, rotate the red mushroom head control clockwise until it releases.
(1) UP SWITCHES – two black push button switches. When both buttons are depressed
simultaneously and if the stabilizers are extended, the platform will rise.
NOTE: The hi-lift cannot be raised unless the stabilizers are extended.
(2) DOWN SWITCH – one black push button switch. When depressed, the platform will
descend.
(3) BEACON ON-OFF SWITCH – two-position switch. When turned to ON, the beacon light
will illuminate. When turned to OFF, the beacon light will extinguish.
(4) EMERGENCY STOP – red mushroom head push button. Cuts power to the control
switches and stop the engine when depressed.
NOTE: The emergency stop button must be reset before the chassis engine will restart.

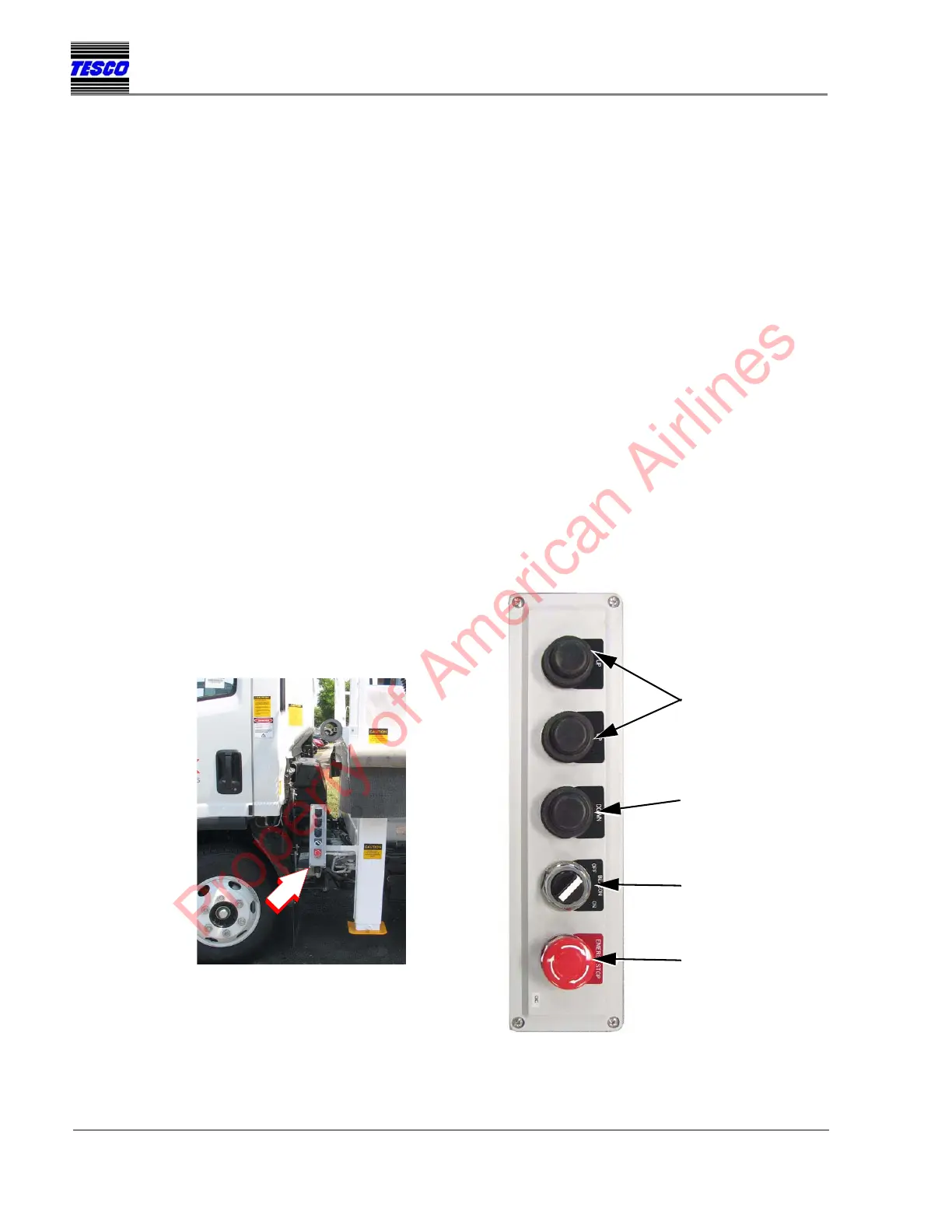

Figure 3
LOWER CONTROL STATION
1
2
3
4
May 08
Property of American Airlines
