ML50-20 MAINTENANCE LIFT
(2) Mount vehicle cab and release parking brake. Check the dash mounted warning lights.
They should all be extinguished. (e.g., stabilizer and lift are retracted and brake is
released.)
NOTE: Attempting to drive the vehicle while in LIFT MODE (parking brake on) will stop the engine.
Return the gear selector to NEUTRAL or PARK, and releases the parking brake to activate
DRIVE MODE.
6. MAINTENANCE PROP OPERATION
WARNING
DO NOT ATTEMPT TO PERFORM ANY MAINTENANCE WORK OR REPAIRS ON A RAISED
SCISSOR LIFT/PLATFORM WITHOUT ENGAGING THE MAINTENANCE PROP. FAILURE TO
COMPLY COULD CAUSE DEATH OR INJURY.
The maintenance prop must be used during all service and maintenance where the lift must be raised
and personnel must be under the lifted platform. The maintenance prop is at the rear of the Hi-Lift. The
maintenance prop is designed to be quick and easy so as not to discourage maintenance personnel
from using it.
1. Raise the scissor high enough to clear the maintenance prop when swung upwards into the
raised position.
2. Rotate the maintenance prop up to a vertical position.
3. Lock the maintenance prop into position by inserting the Lock pin through the locking tabs and
prop (ref. Figure 7).
4. Lower the scissor securing the maintenance prop in the support position.
5. To remove the maintenance prop, raise the scissor high enough to disengage the maintenance
prop and provide clearance for the maintenance prop to swing down.
6. Remove the Lock pin (ref. Figure 7).
7. Rotate the maintenance prop down to the stored position.

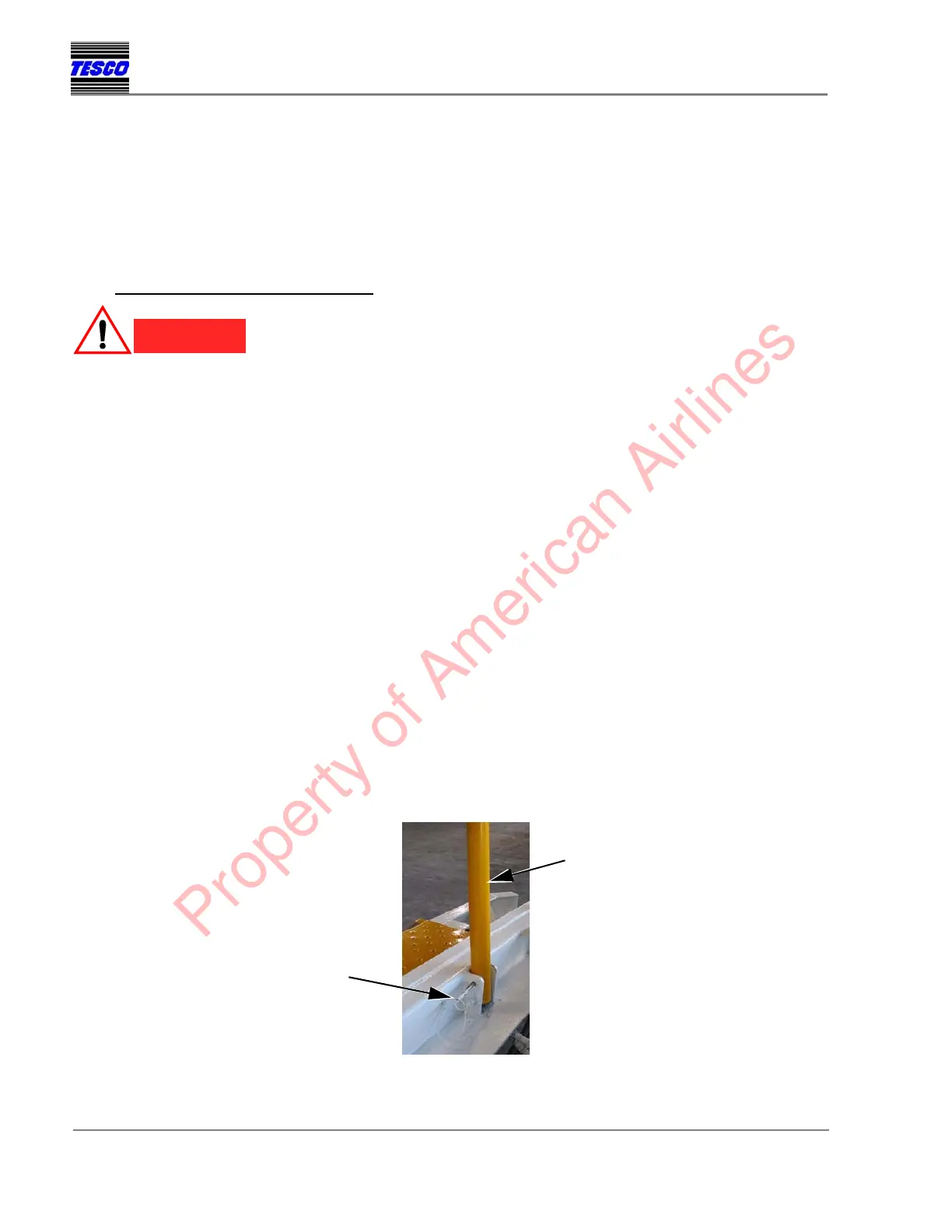

Figure 7
MAINTENANCE PROP INSTALLED
MAINTENANCE
PROP
RAISED
LOCK PIN
INSTALLED
