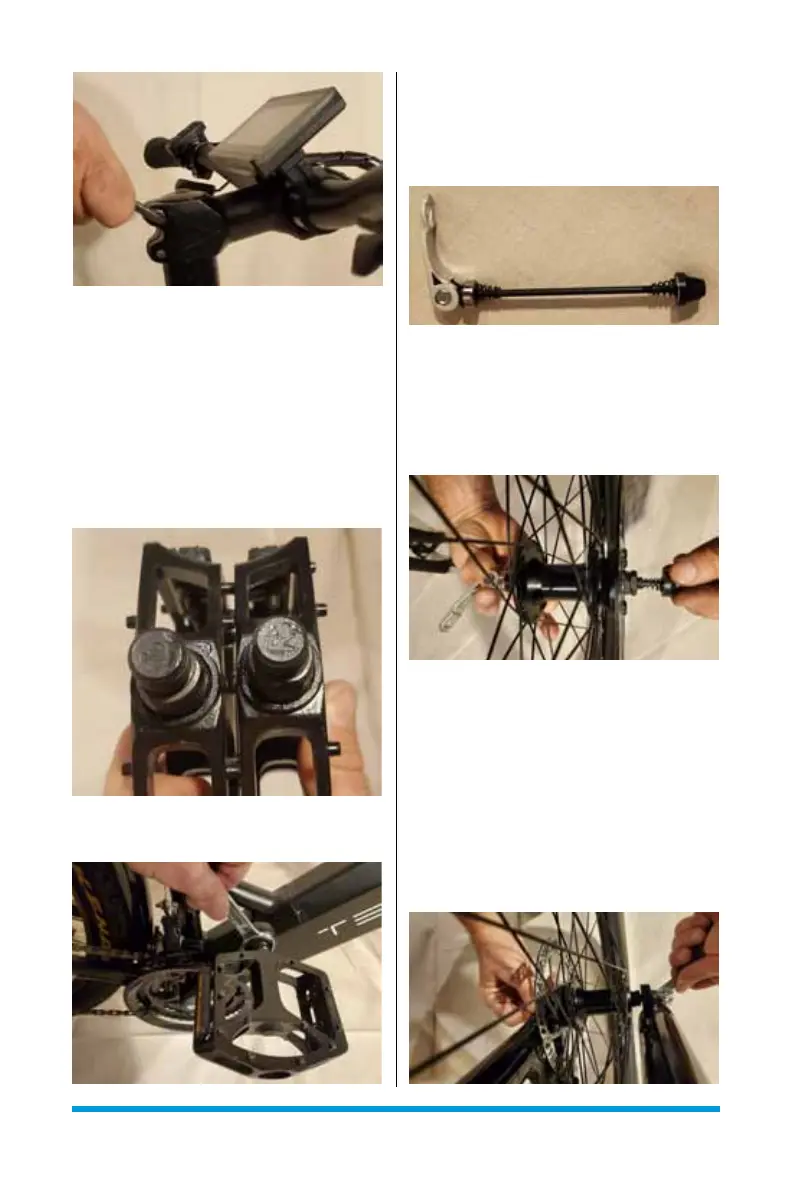

3.5 INSTALLATION OF FRONT HUB
AXLE AND WHEEL
1. Remove hand treaded nut and one
spring from axle
2. Insert axle through the hub. Add the
spring, then the hand treaded nut. Leave
very loose
3. Note: Be sure to install springs with
small tapered ends facing inwards
4. Wheel install: Align the disc brake and
axle, then slide into place on fork
5. Note: Make sure axle hand treaded nut
is loose for ease of alignment
6. Note: Ensure axle is seated correctly on
the frame.
7. Snug up the hand treaded nut then lock
down the quick release lever
3.4 INSTALLATION OF PEDALS
1. Remove pedals from protective
wrapping
2. Note: R for right side and L for left side
markings on treaded end
3. Note: Left side pedal is reverse thread.
Turn counter clockwise to tighten
4. Use wrench to tighten each side to
proper torque setting
