TestSafe miniPAT - Class II Drill Testing Example

Class II ‒ Example: Drill

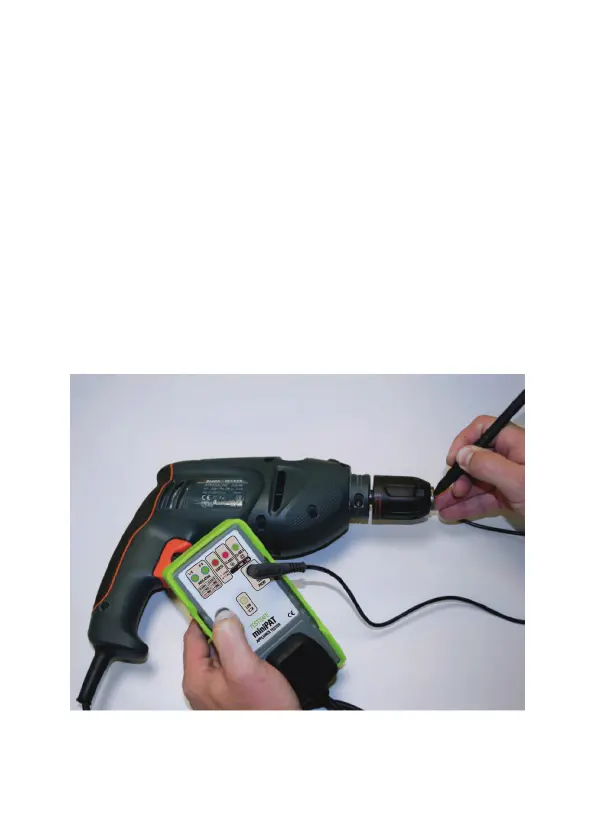

Plug the extension lead into the miniPAT. Attach the earth
probe onto any exposed metalwork and Test.
Latch the appliance in the ON position.
As this is a Class II appliance we need to check that both the
insulation and overall Class II LEDs are illuminated green.
This appliance has passed.
If the insulation on the appliance is faulty the insulation lights
will ash or remain steady red.
