UKUK
Set upSet up
Attach valve block to
motor head
6. Turn key
7. Press key down
8. Close key cover
Take care to assemble the parts properly.
Ensure that there is no dirt or foreign substances on
the filter case or O-ring of the motor head.
To make assembly easier, you may need to grease
the seal ring with a standard lubricant, such as
Vaseline.
Place the motor head on the filter case. Ensure
that the intake nozzle of the motor head and the
connector pipe of the filter media containers are
aligned.
Resecure the lift buckles to align the motor head
with the filter case. Then close the locking buckles.
Attach the valves to the hose adapter unit.
Screw the valves onto the hose adaptor unit.
Filter Case O-ring
Water intake
nozzle
Locking
Buckle
Connection
Pipe

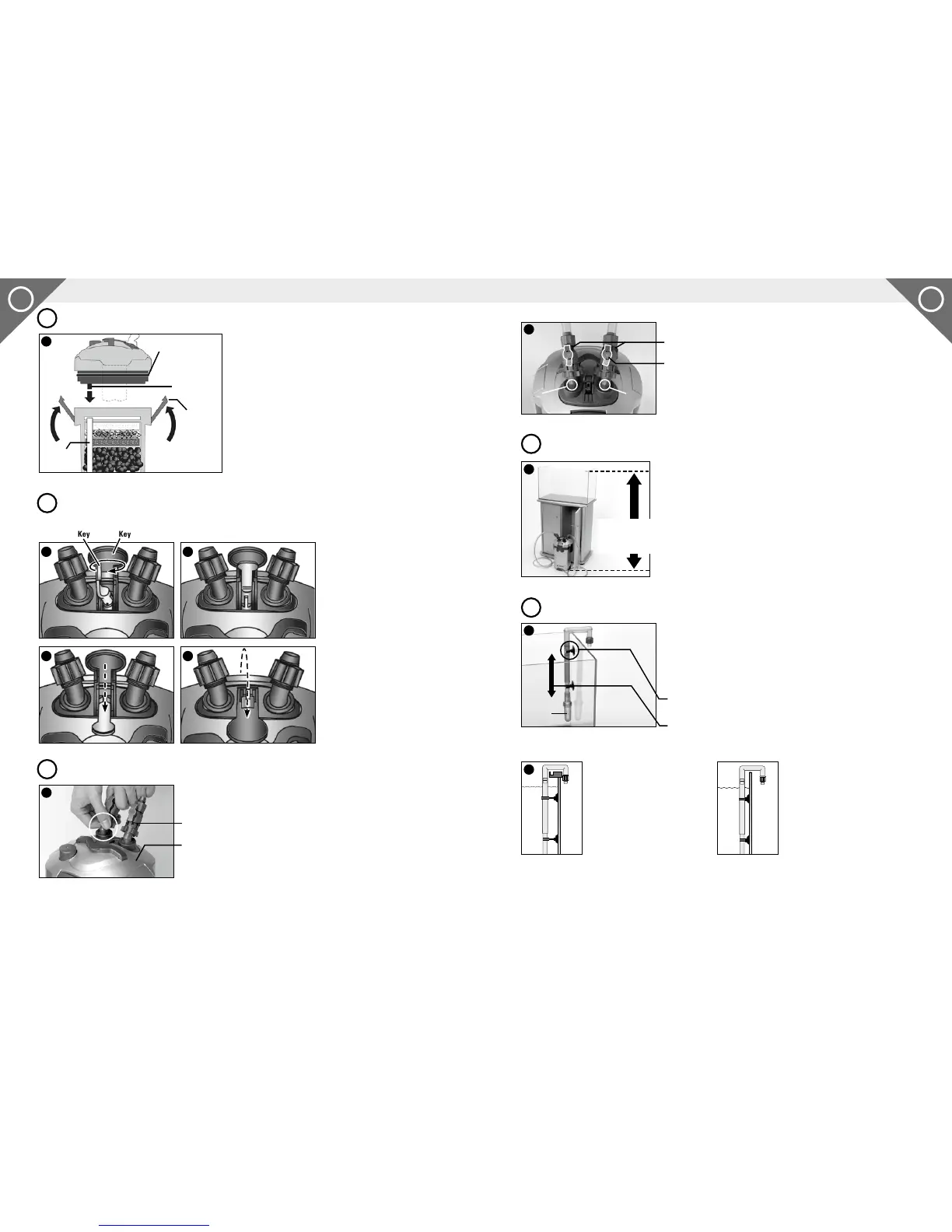

Setting the Motor Head to the Filter Case
2
Assembling the Motor Head Hose Adaptor Unit
3
5
6a
7
6b
8
9
Assembling the Water Hoses
4
Valve
Hose adapter unit
Key CoverKey
Connect the water intake pipe to the strainer and after fixing
the suction cup clips use them to affix the unit to the inner
wall of the tank.
The filter comes with both long and short clips. Which clip to use
will depend on the shape/size of the top part of the tank wall.
Suction Cup Clips
Use “large” sized clips for the upper part (thicker pipe) of the flexible pipes.
Adjust the flexible pipe according to the depth of the tank.
Attach the water hoses to the valves.
Firmly insert each hose into the adaptor unit and tighten the screws.
Turn the valves in the direction shown in the diagram.
Note: Use only hoses supplied by the manufacturer.
Installation Positioning of the Filter
5
Installing the Water Intake Pipe
6
10
12
OUT =
Drainage
IN =
Intake
11
Strainer
a) Example of use
Long Clip
b) Example of use
Short Clip
13
EX 400: 40 - 150 cm
EX 600: 50 - 150 cm
EX 700: 60 - 150 cm
EX 1200: 80 - 150 cm
Once the hoses are properly attached, ensure the distance
between the bottom of the filter and the surface of the water
is within the range shown on the illustration.
