Set up
17
Set up

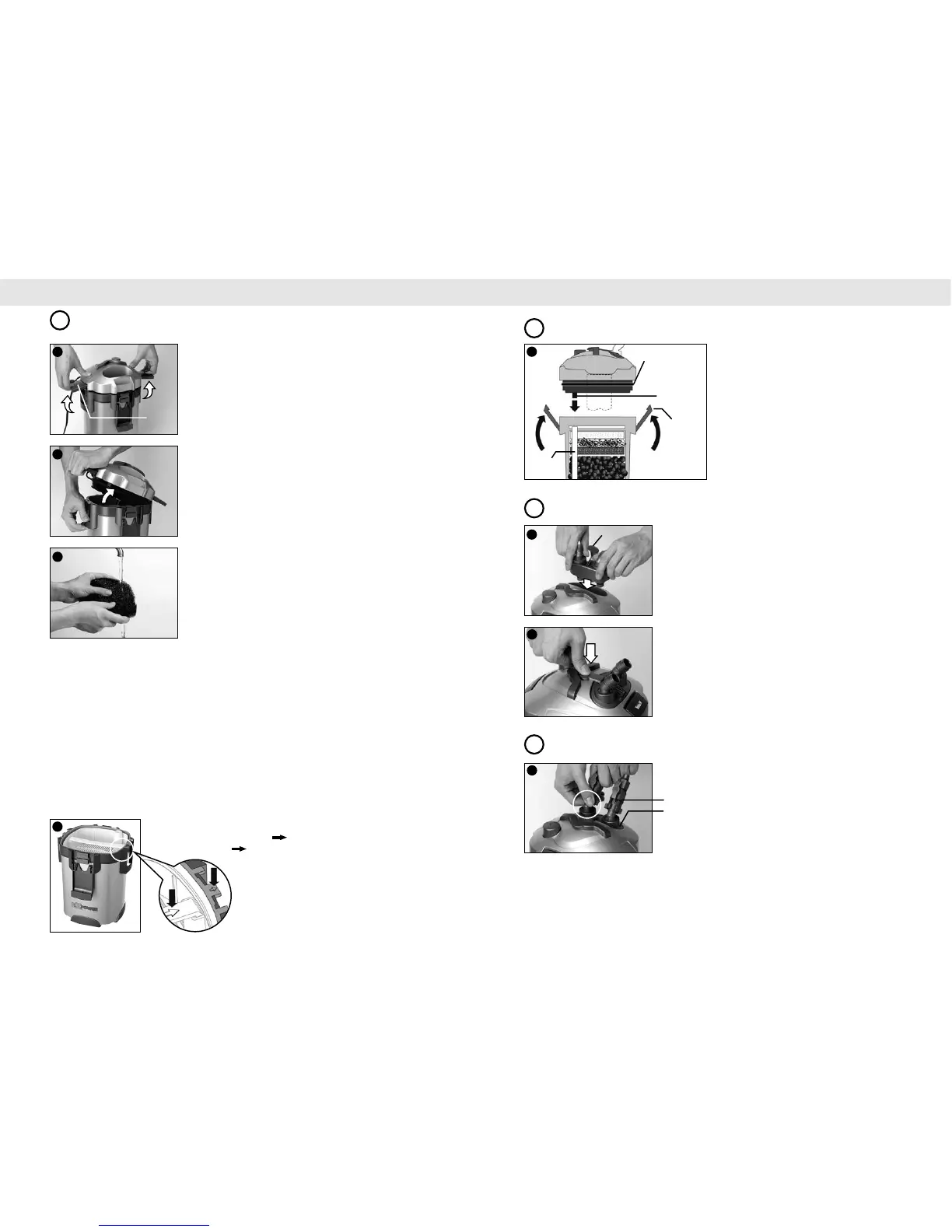

Remove the motor head from the filter case of the Tetratec
®
EX
Filter. To release the motor head, lift the locking buckles with the
Tetratec
®
logo.
Release the lift buckles to slightly raise the motor head from the
filter case.
Remove the motor head by lifting one of the lift buckles while
holding down the filter case frame.
Remove the filter media securing plate and filter media containers
from the filter case.
Clean all the Filter Media
Take out all of the filter media from the filter media containers and
rinse them in water. (Take the filter media out of the plastic bags
before use.)
After rinsing, return to the filter media containers as per the
original order. (The placement is shown below.)
1
Lift
buckles
1
2
3
Filling with Filter Media
Für EX 600:
Bottom Tray: Tetratec
®
CR Ceramic Rings and on top Tetratec
®
BF Biological Filter Foam
Second Tray: Tetratec
®
BB Bio Filter Balls
Third Tray: Tetratec
®
BF Biological Filter Foam, then Tetratec
®
CF Carbon Filter Medium,
then Tetratec
®
FF Filter Floss Pad
Für EX 700 / 1200:
Bottom Tray: Tetratec
®
CR Ceramic Rings and on top Tetratec
®
BF Biological Filter Foam
Second Tray: Tetratec
®
BB Bio Filter Balls
Third Tray: Tetratec
®
BF Biological Filter Medium (2 units)
Fourth Tray: Tetratec
®
BF Biological Filter Foam, then Tetratec
®
CF Carbon Filter Medium
(2 units for EX1200), then Tetratec
®
FF Filter Floss Pad
Filling with Filter Media
Important: Reset all filter media containers and the filter media
securing plate so that the “ ” marks on the handle of the containers
align with the “ ” marks on the filter case.
4
Attach the hose adaptor unit to the motor head with the central
lever raised. (The hose adaptor unit cannot be attached while the
central lever is down!)
Take care to assemble the parts properly.
Ensure that there is no dirt or foreign substances
on the filter case or O-ring of the motor head.
Place the motor head on the filter case. Ensure that
the intake nozzle of the motor head and the
connector pipe of the filter media containers are
aligned.
Resecure the lift buckles to align the motor head
with the filter case. Then close the locking buckles.
After attaching the hose adapter unit to the motor head, push the
central lever down to the center of the motor head to fix it in place.
Attach the valves to the hose adapter unit.
Screw the valves onto the hose adaptor unit.
Filter Case O-ring
Water intake
nozzle
Locking
Buckle
Connection
Pipe
Setting the Motor Head to the Filter Case
2
Assembling the Motor Head Hose Adaptor Unit
3
5
6
7
8
Assembling the Water Hoses
4
Valve
Hose
adapter
unit
Central Lever
