220E (PLUS) - Plus Multifunction Hydrosteam with whirlpool

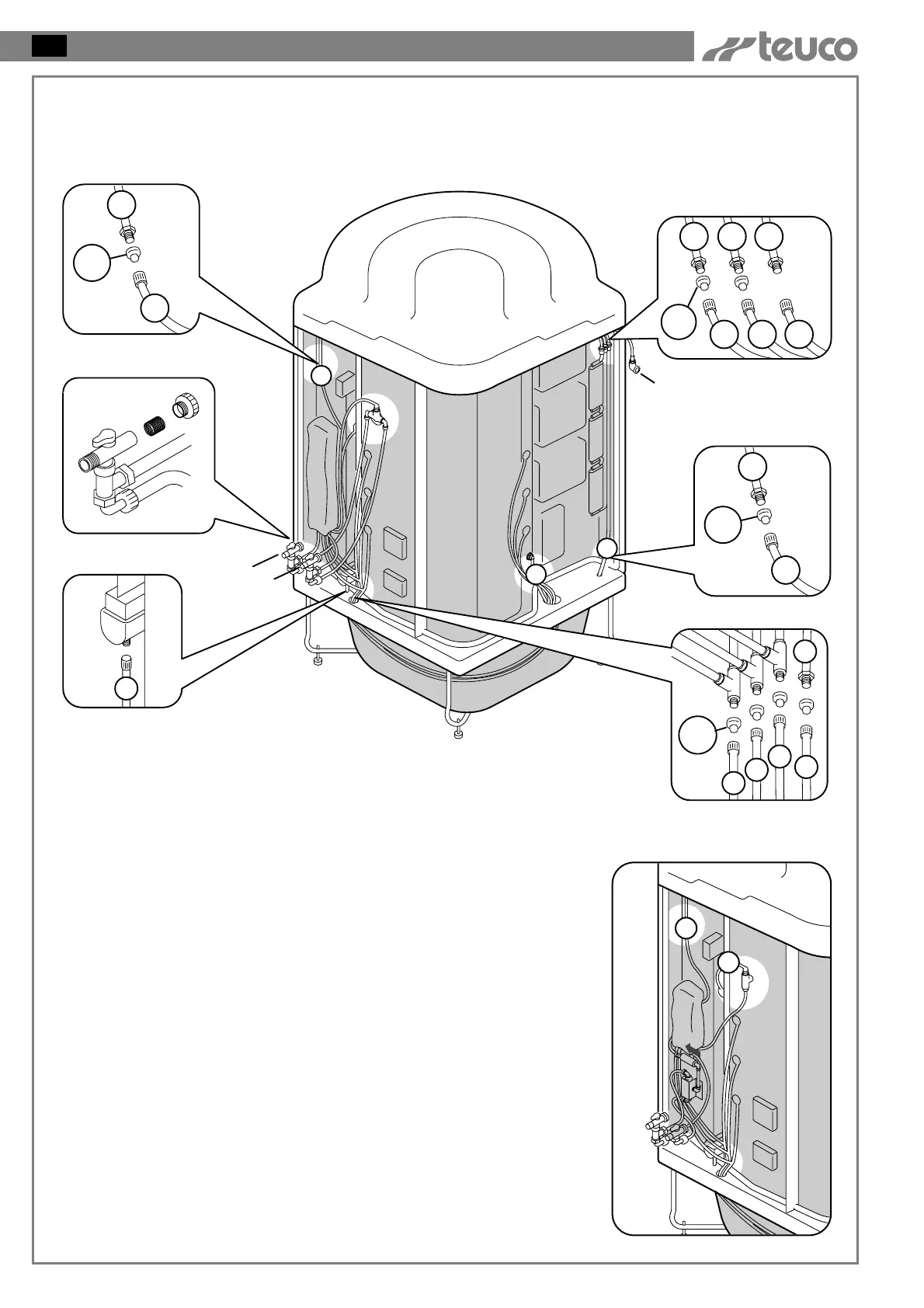

WATER CONNECTIONS
Once the plugs (D) have been
removed, they should not be used
again.
C - Hot water connection.
Connect the tap with the filter.
F - Cold water connection.
Connect the tap with filter.
F1 - Cold water connection for the
sauna.
A1 - Connection for tube 5 for shower
head with nebulizer.
A2 - Cleaning of the taps with filter.
A3 - Connection for hose 12 for
drainage for the sliding rail.
A4 - Connection of hoses 1-2-3 for
the sauna.
N.B. Hoses 1 and 2 for the
decalcification system must always be
filled with water. Therefore, this
system must not be emptied during
installation.
A5 - Connection for hose 3 from the
sauna to the drain pipe.
A6 - Connection for hoses 6-7-8 for
the drainage system and for hose
11 for the foot massage.
A7 - Diagram for the water connection
for the model with a thermostatic
mixer.
When installing the shut-off
valve, pay attention to the
direction of the arrow.
