Teuco 220M - Water Connections

26

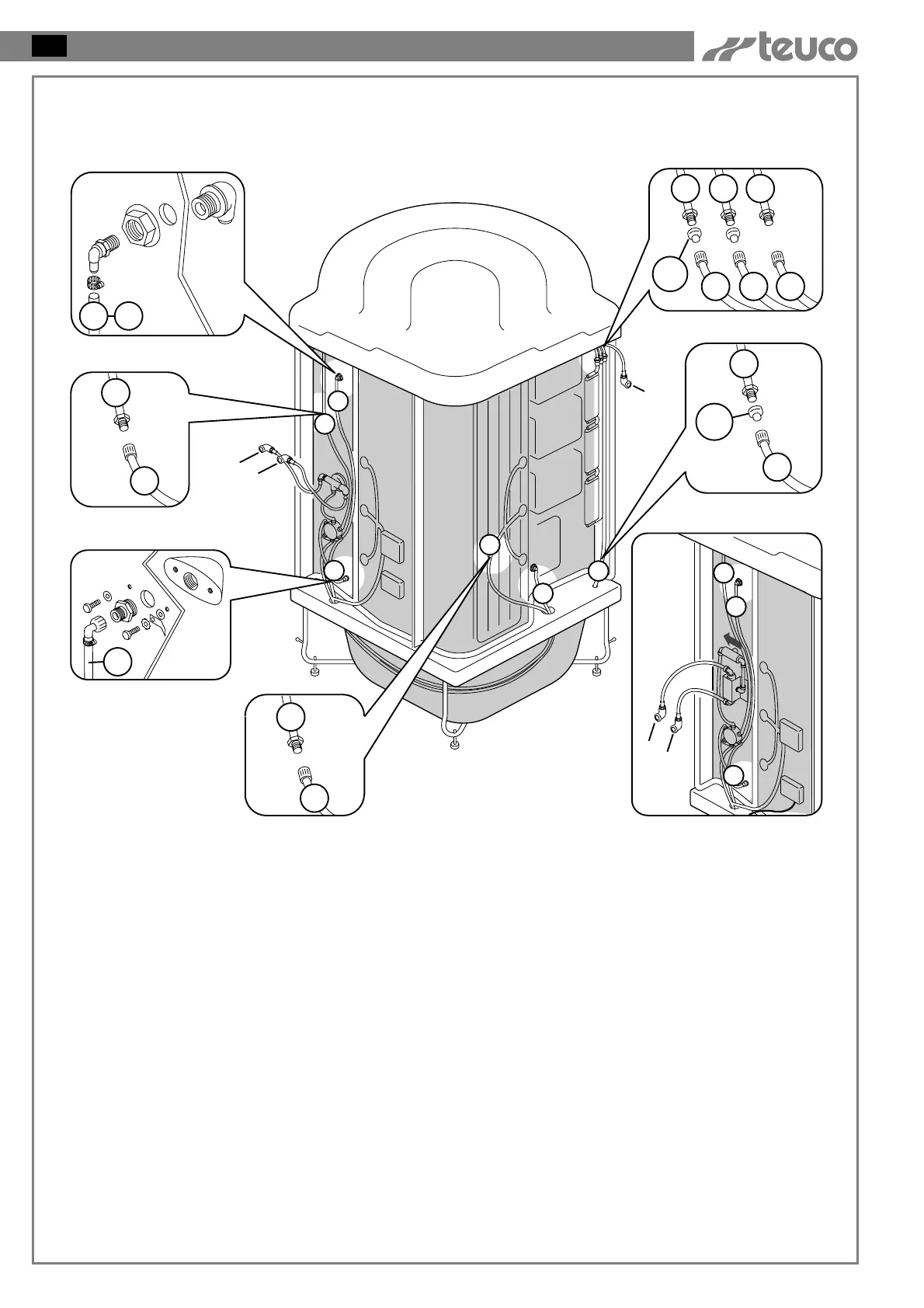

CONNECTIONS FOR THE VARIOUS MODELS
GB
C
F
C
F
11
4
A3
A7
4
D
3
3
A6
4
A5
D
1 2 3
1 2 3
9
5
5
5
A2
A1
9 11
3
A4
5
9
F1
10
10
10
220S (TOP) - Top Multifunction Hydrosteam with whirlpool
WATER CONNECTIONS
Once the plugs (D) have been
removed, they should not be used
again.
C - Hot water connection.
Use a 60 cm flexible stainless
steel hose.
F - Cold water connection.
Use a 60 cm flexible stainless
steel hose.
F1 - Cold water connection for the
sauna.
A1 - Connection for the shower system
using hose 9, which is on the
shower cabin and connected to
the divertor, and for hose 11 for
the foot massage.
A2 - Connection for tube 5 for shower
head with nebulizer.
A3 - Connection for tap with hose 4
which is mounted on the cabin
and the diverter.
A4 - Connection for hose for the
vertical massage.
A5 - Connection of hoses 1-2-3 for
the sauna.
N.B.: Hoses 1 and 2 for the
decalcification system must always be
filled with water. Therefore, this
system must not be emptied during
installation.
A6 - Connection for hose 3 from the
sauna to the drain pipe.
A7 - Diagram for the water connection
for the model with a thermostatic
mixer.
When installing the shut-off
valve, pay attention to the
direction of the arrow.
