Teuco 220M - Electrical Connections

27
CONNECTIONS FOR THE VARIOUS MODELS
GB
CA
P
N
A3
A1
P
N
T
ALARM
CA1
P
N
A2
220S (TOP) - Top Multifunction Hydrosteam with whirlpool

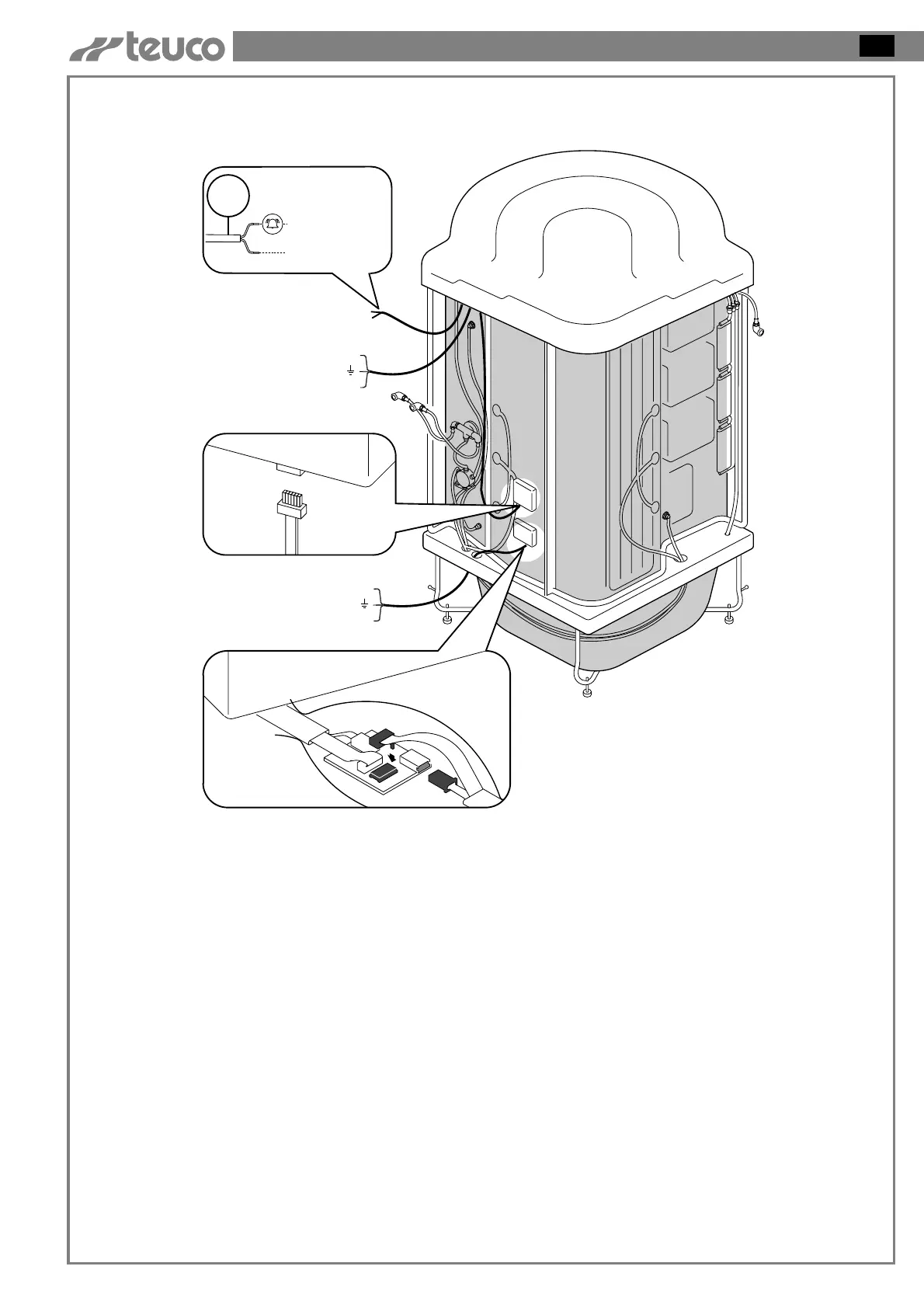

ELECTRICAL CONNECTIONS
The electrical installation must comply
with the safety regulations for
bathroom installation, as described in
the attached user’s manual.
CA - Electrical connection for IPX5
whirlpool (box with cable clamp
PG 13.5).
CA1
- Electrical connection for the IPX5
sauna (box with cable clamp PG
21).
A1 - If the bathroom is equipped with
an alarm system, it can be
connected to the system using
wire (T) (see diagram).
A2 - Connection of the electric cable
to the sauna control panel.
A3 - Connection for the wire coming
from the whirlpool power unit to
the control panel.
Blue
Yellow green
Brown
Blue
Yellow green
Brown
Blue
Brown
