Teuco 220M - Installing the Side Panels

21
ASSEMBLING THE CABIN
GB
A1
C
M5
Ø5
B1
A
B
C
3

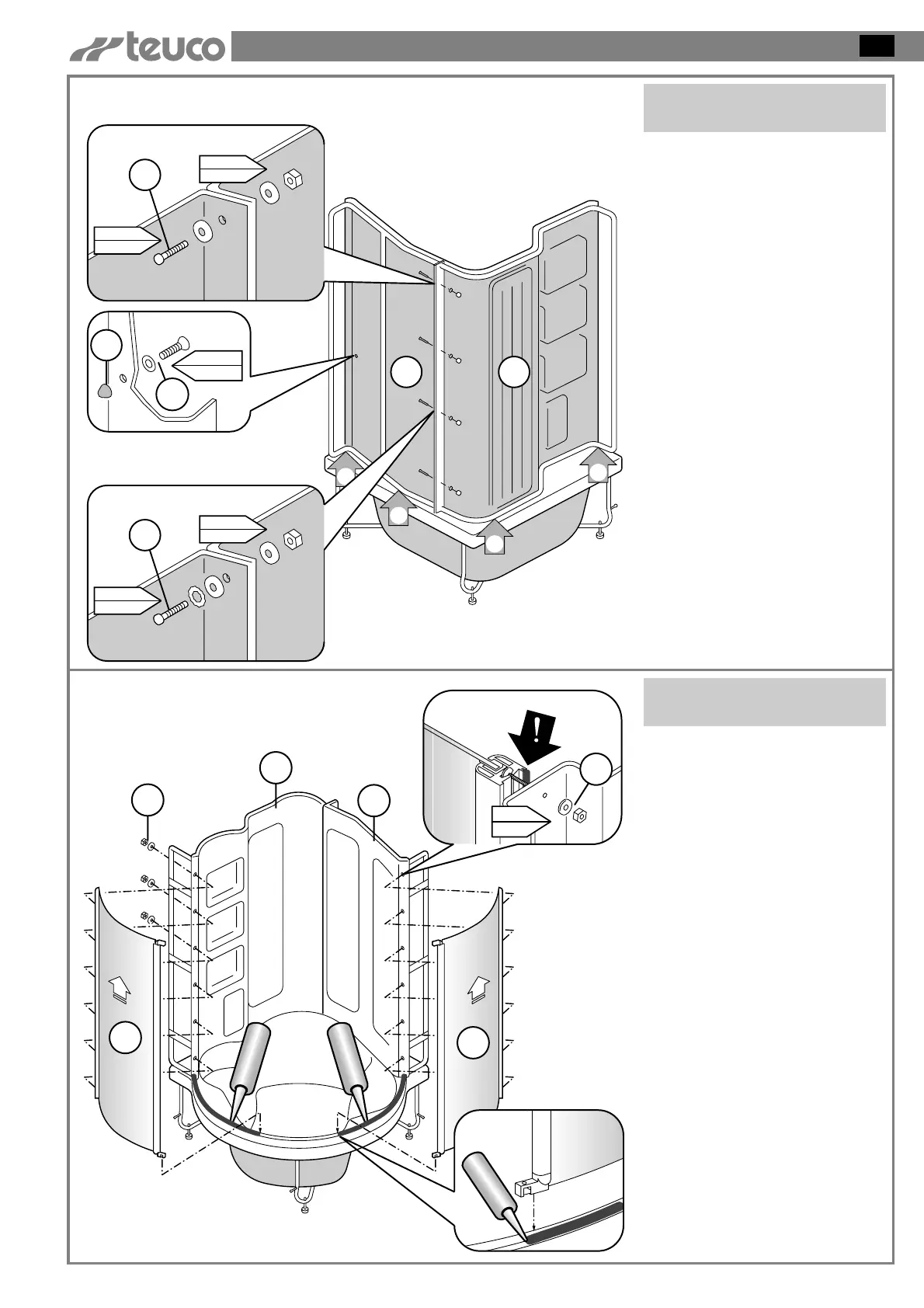

INSTALLING THE SIDE
PANELS
Apply silicone to the groove in the
track corresponding to the position
of the side panels, as indicated in
the diagram.
Slide the side panels (A1 and B1)
into the bottom track, leaving
several centimeters of space
between them and the back panels
(A and B).
Position the threaded pins on the
support for the side panel (A1 and
B1) so that they match up with the
holes on the back panel (A and B);
if necessary, use a 2.5 Allen
wrench.
Check that the seal (!) fits properly
along the entire length of the side
panel support.
Slide the side panels (A1 and B1)
so that they adhere to the back
panels (A and B) and fasten them
with the appropriate nuts and
washers (C).
Bag (D) - plastic accessories
C2
M5x25
Ø5
M5
Ø5
C
C
AB
C
C
M5x25
Ø5-Ø5
M5
Ø5
C2
C3
M3x8
Ø4
M
2a
Fasten the back panels (A) and (B)
together wit the appropriate screws,
nuts and washers (C2).
Fit the rubber doorstop (M) onto
the panel (B) and fasten it with the
screw and washer (C3).
To install the taps onto the back
panel, consult the attached
manual.
Bag (B) - screws for
steps 3 - 4 - 7
