Teuco 220M - Fitting the Door

23
ASSEMBLING THE CABIN
GB
C
K
M4x30
D
AB
7

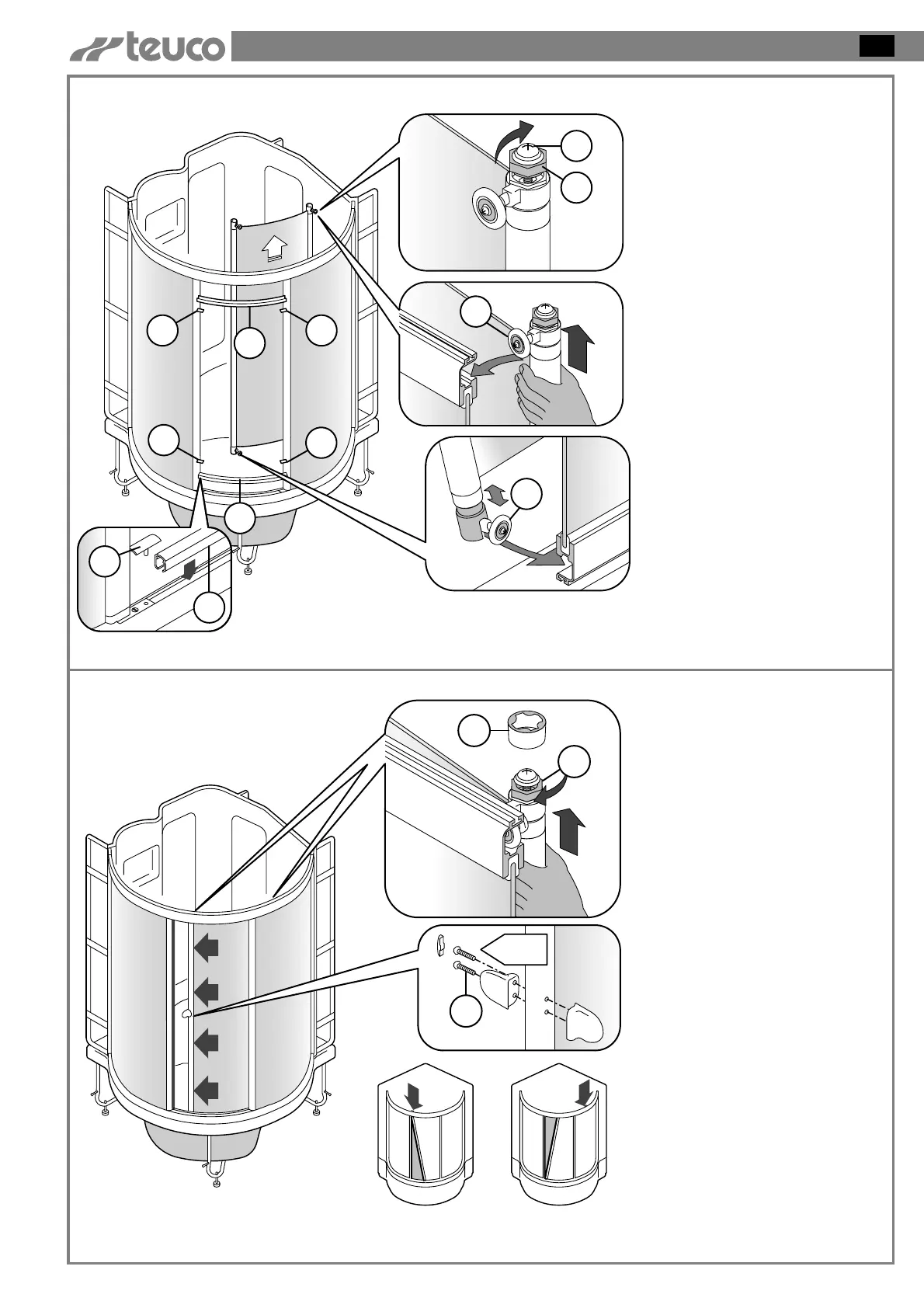

CENTRING THE DOOR
Fit the handle onto the door
support and tighten the screws (C).
Then insert the piece of trim.
Close the door and make sure that
the magnetic seals are aligned
along the entire length of the door.
In the event that the seals do not
come together - as in case (A) or
case (B) - adjust the top slide
assembly indicated by the arrow.
- Lift the door, grasping it by the
supports.
- Tighten the screw (D) until the
magnetic seals are aligned.
N.B. After adjusting the slide
assembly, lock the nuts (D) in
place, inserting the covers (K) with
the inner wings facing outwards.
V
Y
Y
Y
Y
V
N
C
D
P
V
Y
FITTING THE DOOR
Insert the track covers (V) and the
end-trim (Y) into the top and
bottom tracks.
Turn the nut (D) until it is flush
with the top of the “C” screw.
Mount the door, hooking the wheels
(P) with the spring support onto the
lower track
Lift the door up so that the top
wheels (N) slide into the track.
6
