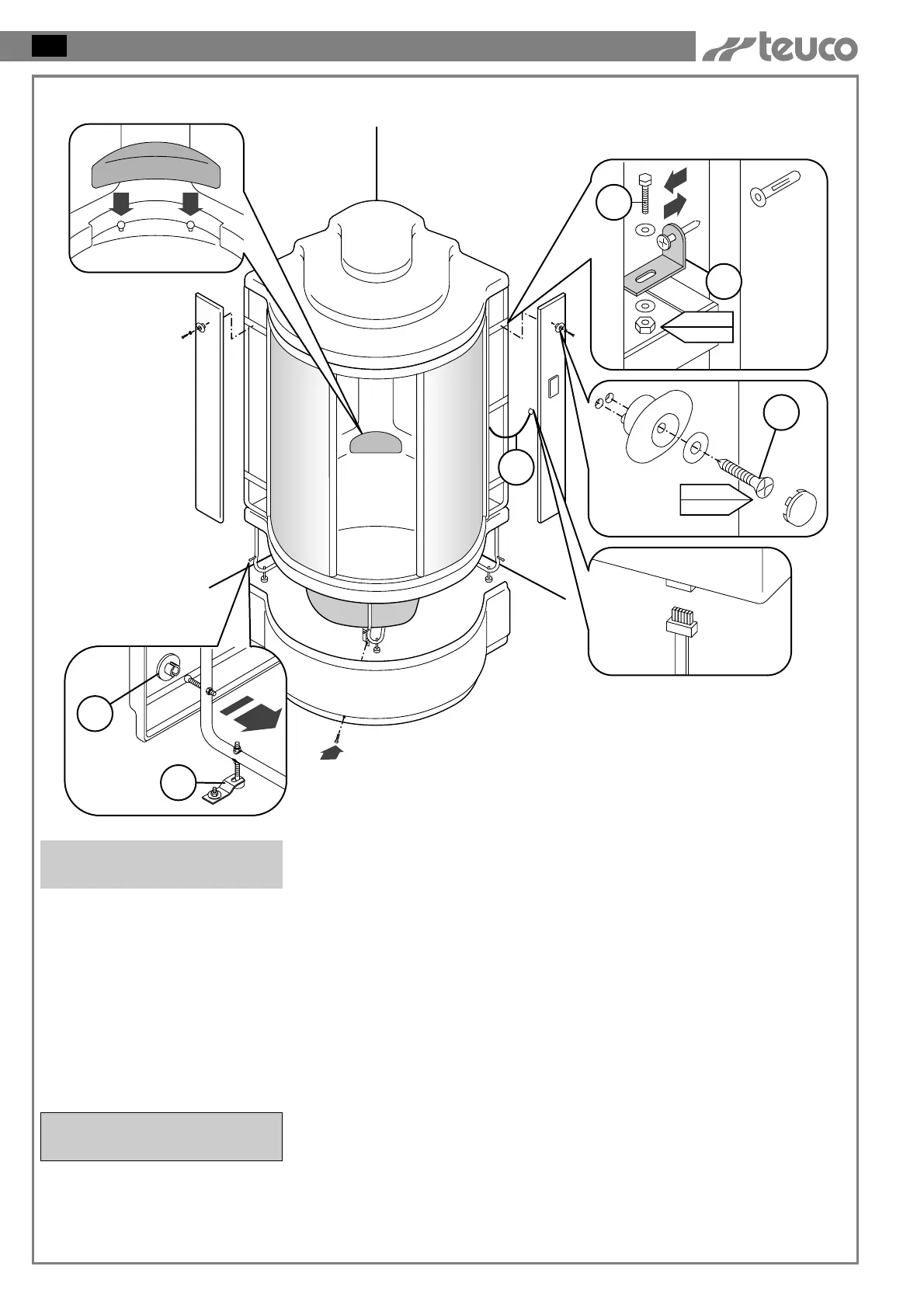

Fit the side panels by sliding it
down from the top so as to hook it
onto the support bracket on the
frame.
Fix the side panels by tightening
the towel-knob with the screws and
washers (C2); insert the trim.
Re-install the bathtub panel by
inserting the top edge underneath
the bathtub and pressing the clips
(Y) so that they go back into their
respective housings; fasten the
panel with the screw which was
removed previously.
FIXING THE SHOWER TO
THE WALL
Fix the bathtub to the floor with
plates (T) and screws and fischers.
Position the bracket (T1) on the
frame, drill a hole in the wall,
insert the screw with the fischer
and fasten the bracket (T1) to the
frame, tightening the screw with
the washer (C1).
13
Install the headrest by inserting it
onto the pens located on the
bathtub.
Connect the cable (S) on the
control panel to the side panel.
ONLY FOR
ARTICLE 220PLUS
Bag (C) - screws for step 13
