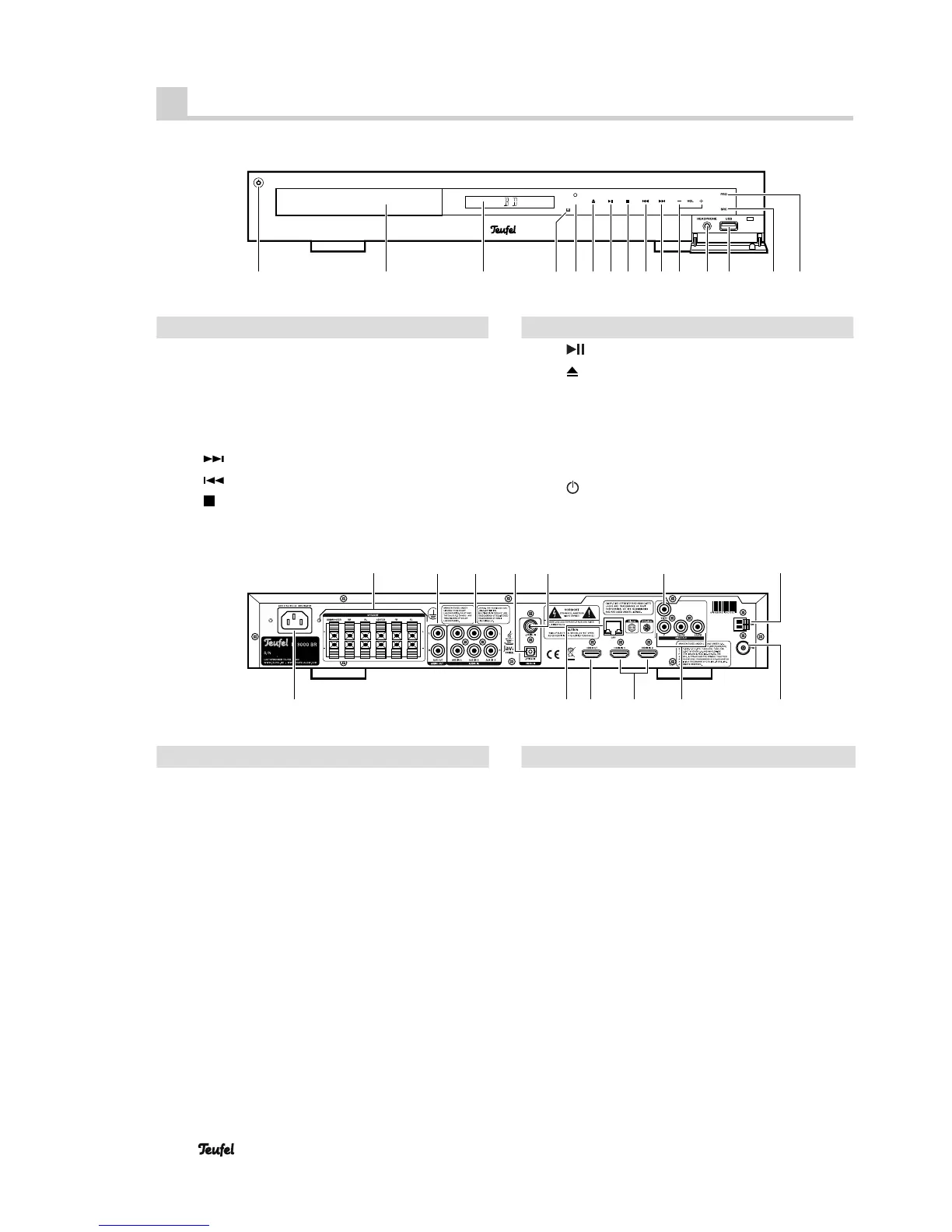

Control elements and connections
Front
124765
Back side
Item Name Description
1Pro Save a radio station
2Src Selection of the source device
3USB USB connection
4HeadphonesEarphone connection
5 – Volume + Volume buttons
6
Skip forward
7
Skip back
8
Stop button
98 3101112131415
Item Name Description
9
Playback/pause
10
Disk eject button
11 – Standby display
12 IR Infrared receiver
13 – Display panel
14 – Disk tray
15
Switch the device on or to stand-
by
Item Name Description
16 SPEAKERS Speaker connections
17 AUDIO OUT Audio output jacks
18 AUX IN 1-3
Input jacks for analogue audio
source devices
19 OPTICAL IN
Input jack for digital audio signals
via optical lines
20 COAXIAL IN
Input jacks for digital audio
signals via coax cables
21 VIDEO
Output jack for TV/projector with
FBAS video
22 AM ANT Antenna connection AM/MW
Item Name Description
23 FM ANT Antenna connection FM/USW
24
Y CB/PB
CR/PR
Output jacks for TV/projector with
component video
25 HDMI 1 + 2
Input jacks for digital source de-
vices with HDMI connection
26 HDMI OUT
Output jack for TV/projector with
HDMI connection
27 ETHERNET Network/Internet connection
28 – Connector jack for mains cord
16 1817
20 21 22
232526 2427
19
28
