Step 2:
Remove the jumpers from the isolation header as well as switch S101 to the XDS-ET position (not the
Ext Debug position).

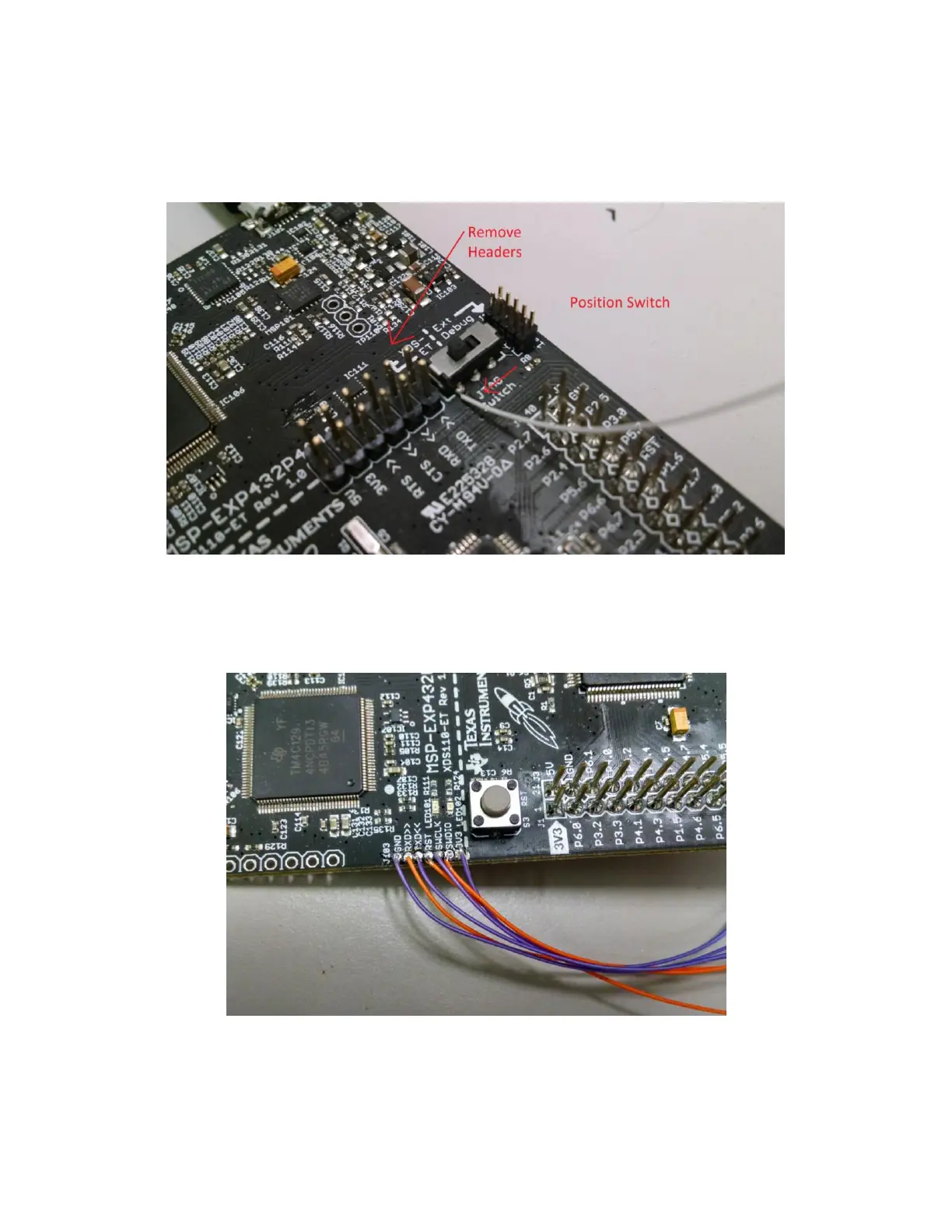

Figure 3: Headers Removed and Switch Positioned
Step 3:
Attach wires to each of the positions in J103 on the side of the board near the reset button.
Figure 4: Jumper wires soldered into J103 on the LaunchPad
