Evaluating the Single-Phase PFC with GUI
13.3.2 Status
When click tab Status, its corresponding page is shown in Figure 43. What can be seen is all entries are
grayed out. This means nothing was designed to show from this tab. The page of Status provides all
possible PMBus supported variables in communication. To activate these variables in communication,
corresponding firmware codes need to be in place. As what can be seen is all in gray which means none
of the variables is established in communication in this page.

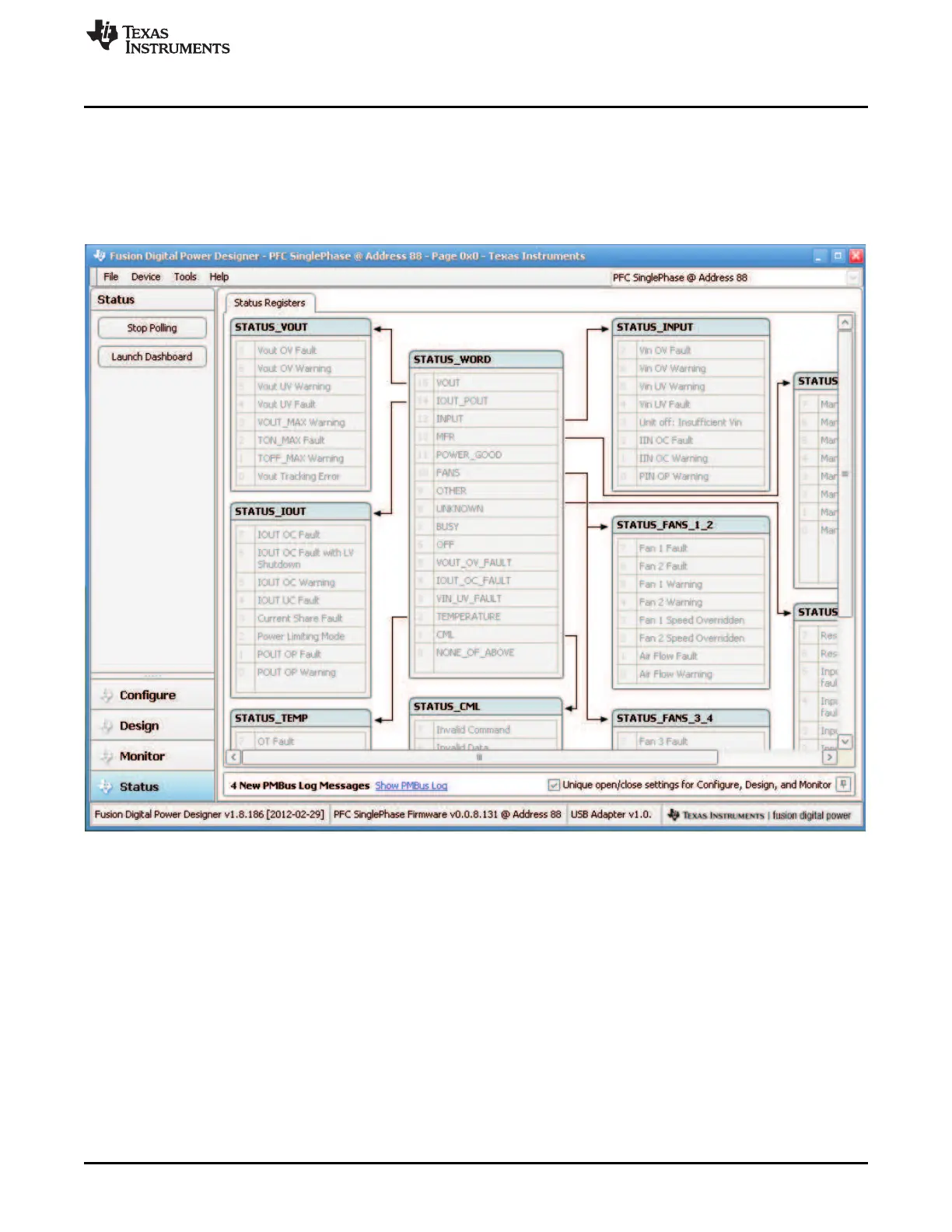

Figure 43. Page of Status
13.3.3 Design and Configure
If click Design or Configure two more different pages will be brought up to the front. These pages provide
more functions and described in the following section.
