! Always stop the engine and take off the lid of the spark plug before making
adjustments or repairs. Only exception is when adjusting the carburetor.
! Only use original spare parts. If not you may experience bad performance or injury
and the warranty is invalid.
! Examine the tool for loose bolts and nuts, leakage etc. Replace any damaged parts.
Replace the trimmer head / blade if it is cracked, chipped or damaged in any other
way.
! Make sure that the trimmer head / blade is fitted correctly and securely fastened. If
not this may lead to serious personal injury.
! Make sure that all safety guards and handles are correctly and securely fastened.
! The cord head rotates while the carburetor is adjusted. Wear protection and follow
all safety instructions.
! Let the engine cool off before storage.
! Empty the fuel tank and fasten the brush cutter when it is transported.

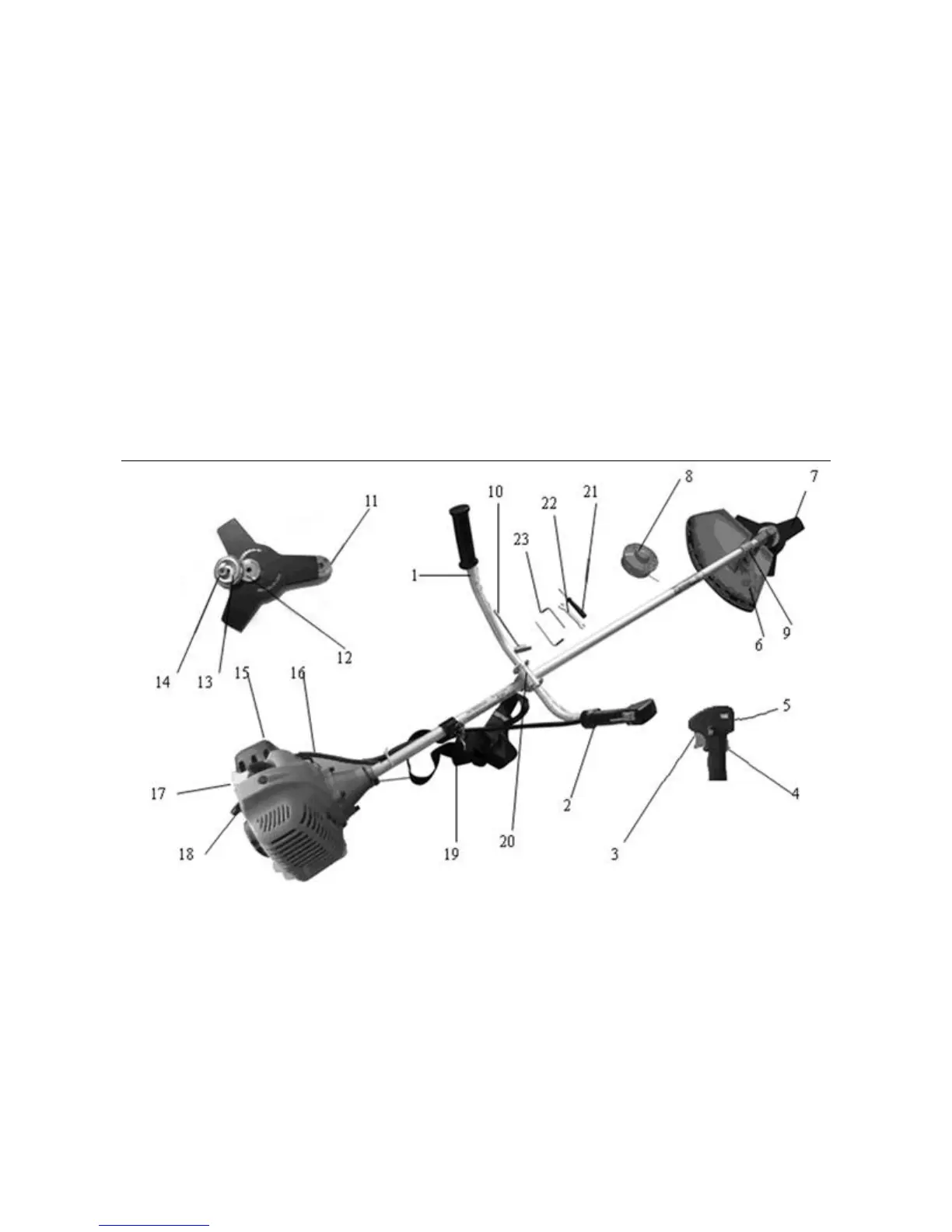

3. Identification of parts
1. Left handle
2. Right handle
3. Throttle lever
4. Lock OFF lever
5. Engine switch
6. Safe guard
7. Blade
8. Nylon cutter
9. Safe guard bracket
10. Hex wench
11. Inner flange
12. Outer flange
13.Shield
14.Nut
15.Spark cover
16.Engine
17.Choke lever
18.Recoil starter handle
19.Shawl band
20.Handle bracket
21.Screw driver
22.Wrench
23.Hex
