INS627-8 22/44

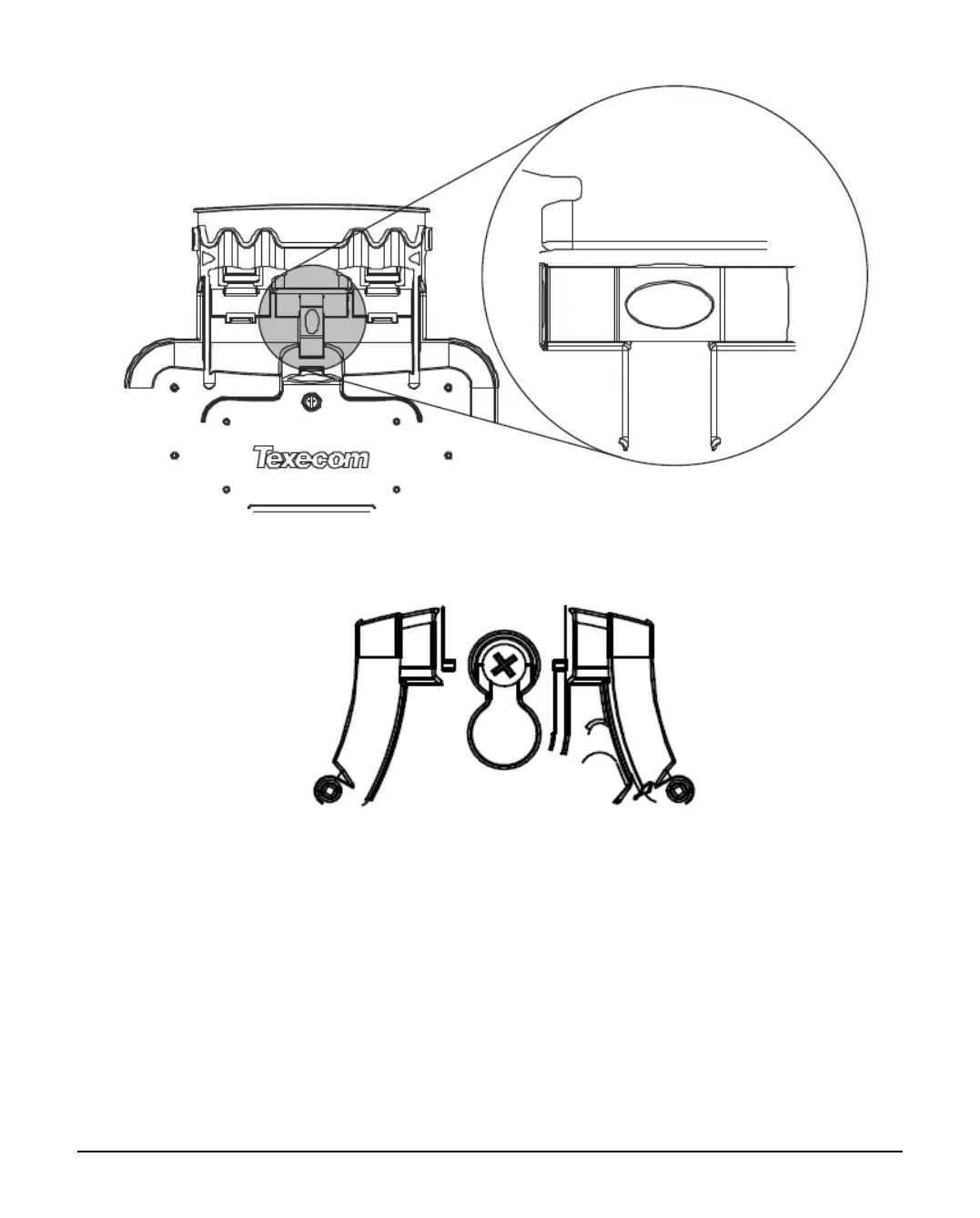

Keyhole fixing
The keyhole fixing is accessed by opening the inner cover as described in the
previous section.
Make sure to adjust the tamper screw correctly before fully tightening this screw.
Side fixings
21
23
